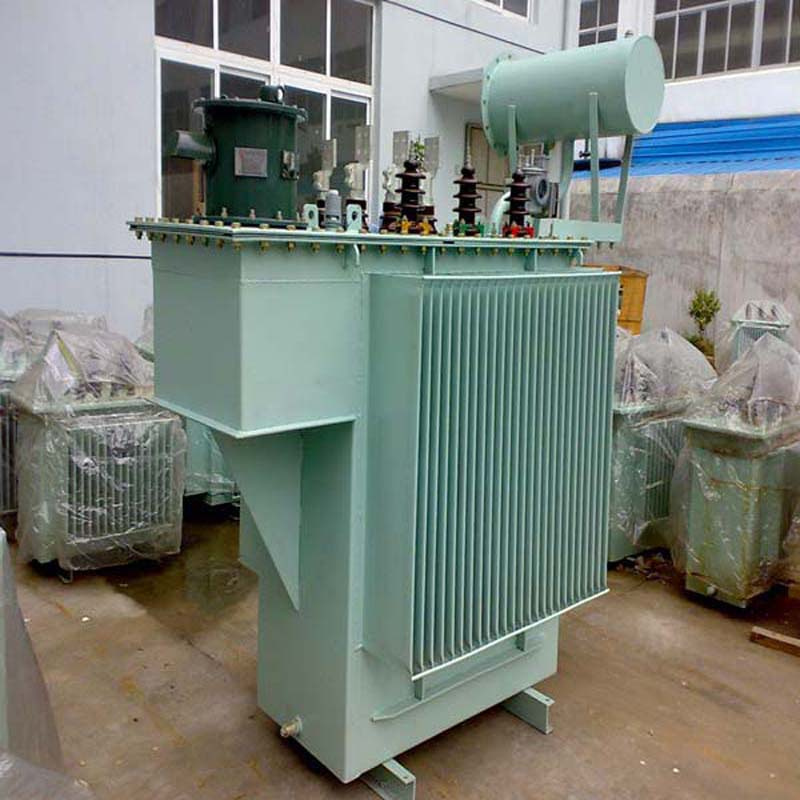

S9-M 50kVA 11/0.415kv Oil Immersed Type Power Distribution Transformer

Product Specifications

Prod Model:	S9-M-50/11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Onan Power Transformer:	Duplex Power Transformer
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Application:	Lighting

Product Description

our？manufactory specilize in various kind of transformer, such as three phase oil immersed type and dry？type？distribution (power) transformer, single phase ？transformer, machine tool control transformer, isolation transformer , autotransforner,toroidal transformer etc. If you have any question or inquiries about transformer, please contact with me？ 1/ basic parameter Type: S9 series 11kv or 10kv/0.4kv Rated capacity: 50KVA Voltage combination: 13.8KV/0.4KV ;15KV/0.4KV; 20KV/0.4KV; 22KV/0.4KV; 33KV/0.4KV; 35 KV/ 0.4KV 33KV/10KV 33KV/6.3KV 35KV/10KV 35KV/6.3KV Connection symbol: DYn11 or Yyn0 Load loss:0.87KW No-load loss: 0.17KW Non-load current:？2.0% Oil weight:88KG The total weight:395KG Size long: 995mm Size wide: 595 mm Size high: 1035？mm Installation size: 400 * 400 mm Normal packing standard:1PCS/CTN 3PCS/20' 6PCS/40' ？ 2/ the use of the environment Device types: outdoor type Normal environment conditions of use: the elevation not more than 1000 m Environmental highest temperature + 40°C, minimum-25°C The special environment conditions of use: elevation of more than 1000 m Environmental highest temperature + 40°C, minimum-45°C. (when you order details) Mounting ambicnt: no corrosive gas, no obvious dirt environment ？ 3/ carries out the standard 1. GB1094.1 ~ 2-1996 power transformer 2. GB1094.3, 5-2003 power transformer 3. GB/T6451-2008 oil-immersed three-phases transformer power technical parameters and requirements 4.IEC ？ 4/ performance characteristics 1, S9-M series power transformer core USES the high quality cold-rolled steel coil, USES the high quality anaerobic copper into and beautiful outlook, safety of operation. S9 series S7 series transformer and compared, and the annual average no-load loss is reduced by 10% and the average load loss is reduced by 20% and save energy obviously, widely used in industry and agriculture, urban and rural power grid. 2. High reliability, performance level advanced, economical index is reasonable. 3. The core of the level 3 juncture when, surface coating cured paint, in order to reduce loss and noise. 4. Winding new structure, reasonable design oil way, adopt new insulation structure, improve mechanical strength and resistance？ ？ ？
