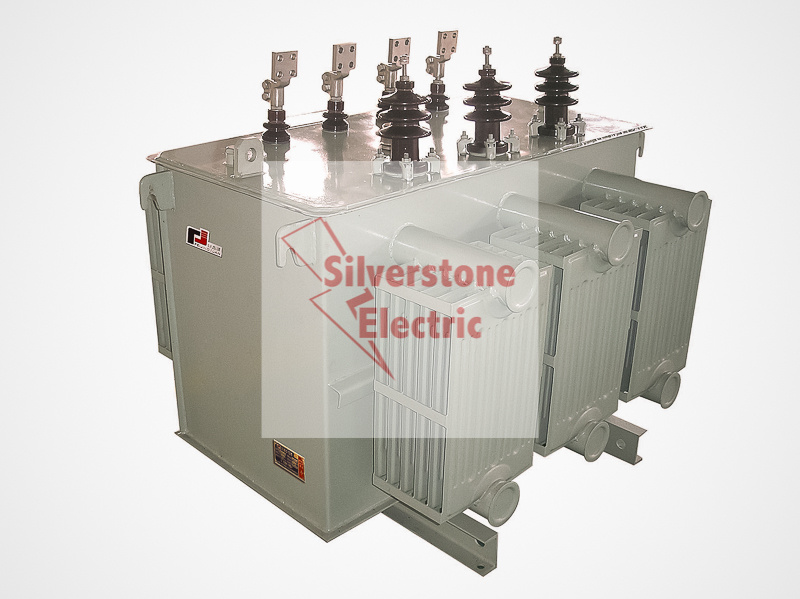

S9/S11 3 Phase Dyn11/Yyn0 33kv 24kv 11kv Oil Power Distribution Transformer China

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1. Specifications
1) iron core : imported high-quality cold-rolled silicon steel plate
2) Non-load loss , non-load current , core noise reduced

2. General

The three-phase oil power distribution transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High –voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent them from loosening.

As high-tech product that promoted by the country, the oil power distribution transformer has many advantages such as high efficiency, low loss.oil power distribution transformer social benefits are remarkable that it will save much of electricity consumption and operating cost.

1) Core :
The iron core adopts imported high quality cold rolled silicon steel sheet and full inclined echelon joint form . Its winding wrapped by eposy resin casted .
The non load loss and non-load current , the noise of the core are reduced .
The appearance get improved by special treatment on the surface of the fasterners and clamp pieces .
2) high voltage winding
High voltage winding applies vacuum casted by epoxy resin which decrease the partial discharge capactiy and improve the strength of the coils .
The inner or outer of the winding filling with the fibergladd mesh so that raise the mechanical strength
and improves the capability of the short-circuit reistance and ensure the coil will never crack
3) Low votlage winding
Low voltage winding copper foil structure . The coils applies axial fan which lift the heat dispersion . Between the winding layers  , i
t applies DMD epoxy resin pre-dip cloth and makes it whole solidification form .

Delivery Time
10-30 Days Depending On Quantity Ordered
Service Conditions
1. Service Site: Indoor/Outdoor
2. Ambient Temp.:-40~+40 degree (or according to customer's requirement)
3. Altitude: <=1000m (if it exceeding to 1000m, pls declare in order)
4. Max. Wind Speed: 35m/s
5. Relative Humidity :< =90%
6. Earthquake Resistant Capability: horizontal direction 0.3g vertical direction 0.15g (or by customer's requirements

Silverstone Electric's Transformer Product Range:

S10 S11 S13 oil type transformer:50-31500KVA,6-33KV,50/60HZ,off load tape changer
SZ10 SZ11 oil type transformer:50-31500KVA, 6-33KV,50/60HZ, on load tape changer
SCB9,SCB11 dry type transformer: F grade insulation, 50-3150KVA,6-33KV, 50/60HZ
SCBH15 11KV amorphous alloy dry type transformer:F grade insulation
SGB10 SGB11 11KV dry type transformer:H grade insulation
SBH15 Oil type amorphous alloy transformer 11KV Level
S13-M 1full sealed oil immersed power transformer
Dry type reactor
S(B)H15-16 Amorphous Transformer
BKSC(G)Dry-type shunt reactor
QKSC Dry Startup reactor
Smoothing reactors

KD-LK-type low-pressure filter reactor
Cast resin dry type earthing transformer
Dry type rectifier transformer
Rectifier transformer
Furnace transformer

Note: we design and manufacture special transformer according to customers' requirements.

Ordering Instruction:
1.product model;
2.rated capacity;
3.voltage range;
4.regulation range;
5.frequency;
6.connection symbol;
7.technical specs for customized transformer.
