Product Specifications
| Prod Model: |
S9 |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
Product Description

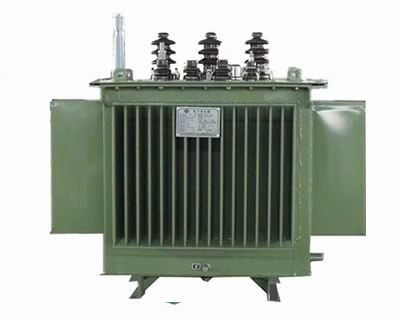

The three-phase oil-immersed distributing transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent them from loosening.
Reliable Structure
1. Spiral loops with longitudinal oil path to produce a better interior cooling effect; 2. Improve the effectual support of the loop's terminal face to strengthen the anti-short circuit electricity capability; 3. New suspending structure and instrument-positioning frames to guarantee that the long distance transport and movement will be more reliable.
Excellent Materials
1. Oxygen-free copper lines of lower resistivity, which will become smoother and burr-free after series of additional surface treatment, so the load loss of our transformer is lower and the electric performance is better.
2. High-quality silicon-steel plates which are of lower unit loss, and the no-load of the transformers is lower.
3. High-quality wooden laminating insulation pieces, which won't split or move even under the influence of short circuit.
4. Thoroughly filtrated transformer oil containing less water, gas and impurities, which makes our transformers work better.
5. High-quality rubber sealing material, which can prevent the transformers form aging or leakage.
Transformer Service Condition:
Altitude cannot exceed: 1000m
Highest ambient temperature: +40° C
Highest daily average temperature: +30° C
Highest annual average temperature: +20° C
Lowest outdoor temperature: -25° C
Rated power
(kVA) |
High Voltage
(kV) |
H.V Tap range |
Low Voltage
(kV) |
Connection Symbol |
Short-Circuit Impedance
(%) |
No-load Loss
(W) |
On-Load Loss
(W) |
No-load Current
(%) |
|
|
|
|
50 |
6
6.3
10
10.5
11 |
±5%
±2×2.5% |
0.4 |
Yyn0
Dyn11 |
4 |
170 |
870 |
1.3 |
|
|
100 |
290 |
1500 |
1 |
|
|
125 |
340 |
1800 |
0.9 |
|
|
160 |
400 |
2200 |
0.7 |
|
|
200 |
480 |
2600 |
0.7 |
|
|
250 |
560 |
3050 |
0.7 |
|
|
315 |
670 |
3650 |
0.5 |
|
|
400 |
800 |
4300 |
0.5 |
|
|
500 |
4.5 |
960 |
5150 |
0.5 |
|
|
630 |
1200 |
6200 |
0.3 |
|
|
800 |
1400 |
7500 |
0.3 |
|
|
1000 |
1700 |
10300 |
0.3 |
|
|
1250 |
1950 |
12000 |
0.2 |
|
|
1600 |
2400 |
14500 |
0.2 |
|
