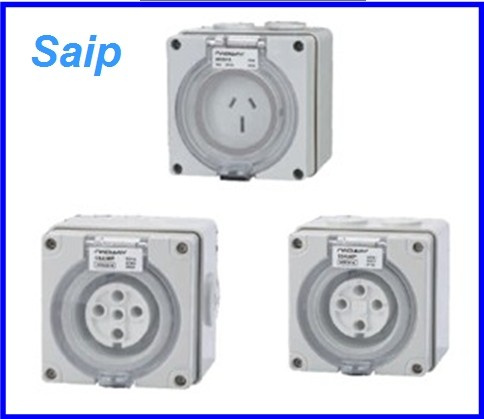

SAA 56 Series IP66 Socket Outlets

Name: SAA 56 Series IP66 Socket Outlets
Brand: China-Manufacturer-Directory.com
SKU: 685502482
Availability: InStock
Rating: 4.3 (106 reviews)

Supplier:	Yueqing Saibang Electric Co., Ltd.
Price:	US $ 6.83-8.3/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAT

Product Specifications

Prod Model:	56 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Nam:	Saip
Rated Current:	50A
Current:	10,20,32,40,50A
Model Number:	56CV
Rated Voltage:	500V
Color:	Grey and Orange ,White
Grounding:	Standard Grounding
Type:	With Switch
Application:	Industrial
IP Rating:	IP66

Product Description

SAA 56 Series IP66 Socket Outlets

Powered by Innovation:
Providing superior user and installer solutions, the iconic 56 Series™ Is taken to a new level
New range, new benefits, New Zealand tough
Since the beginning of the 1980s the 56 Series™ Has earned a reputation for top performance in resistance to the harsh treatment of industrial environments.
Introducing the NEW 56 Series™ , a range with easier operation, improved strength and integrity, whilst maintaining the 56 Series heritage look, and being fully backwards compatible with the old range.

Feature:

Easier switch and socket operation
Modern contoured profile
56 Series™ Heritage look & fully backwards compatible
Reduction of potential dirt build-up areas
Improved strength and reliability
Specification:

Proven IP66 Protection
Superior Impact Strength
High Level of Switch Performance
Specially Formulated Chemical Resistance
Solvent Bonding Capability
Greater UV Resistance
Full Range of Matching Gear
Modules Making Assembly Simple
Quick, Easy, and Safe Wiring
Models to choose:

56 Series™ Appliance Inlets 10A & 15A
56 Series™ Socket Auxiliary Switch Contact 15A
56 Series™ Programmable Time Switches & Time Delay
56 Series™ Combination switched socket outlets
56 Series™ Accessories NEW Release
56 Series™ Socket outlets, excluding CEE outlets
56 Series™ Module Mount Covers 600/500 Series
56 Series™ Residual Current Devices, 30mA
56 Series™ Switches, single gang, double gang, key-lock, changeover and reversing, LED indictor kits
LED Kits for 56 Series™ Switches and Combination Switched Sockets
More models, pls contact me. Thx.: )

Item No.	56SP310	56SP315	56SP313	56SP316/110	56SP316/240	56SP320	56SP332
Rated voltage Ue (50Hz) V olts	250	250	230	110	230	250	250
Rated thermal current Amps	10	15	13	16	16	20	32
Description	Switched N/Z Aust socket	Switched N/Z Aust socket	Switched British socket	Switched CEE17-4h socket (yellow)	Switched CEE17-4h socket (Blue)	Switched AS1323 socket	Switched AS1323 socket
Switch description	1 way single pole	1 way double pole	1 way double pole	1 way double pole	1 way double pole	1 way double pole	1 way double pole
Utilization category AS3133 250V Amps AS23A 240V Amps KW	10AXM50 15 2.2	16AXM120 15 2.2	16AXM120 15 2.2	16AXM120 15 2.2	16AXM120 15 2.2	20AXM150 21 3.0	32AXM150 28 3.0
Cable cross section solid or min stranded mm2 Max	0.75 1.6	1.0 16	1.0 16	1.0 16	1.0 16	1.0 16	1.0 16
Socket number of pins including (earth)	3	3	3	3	3	3	3
Socket configuration
Cable cross sections solid or min strandedmm2 Max	10 10	10 10	10 10	10 10	10 10	10 10	10 10
IP rating	IP66	IP66	IP66	IP66 without plug IP44 with plug	IP66 without plug IP44 withplug	IP66	IP66

model	carton size/cm	QTY/carton	Description	IP Grade
56sp410	4117.533	20	3 phase 4 round pin 10A angled plug	IP66
56sp420	4117.533	20	3 phase 4 round pin 20A angled plug	IP66
56sp432	46.520.538.5	20	3 phase 4 round pin 32A angled plug	IP66
56sp440	46.520.538.5	20	3 phase 4 round pin 40A angled plug	IP66
56sp450	46.520.538.5	20	3 phase 4 round pin 50A angled plug	IP66
56sp510	4117.533	20	3 phase 5 round pin 10A angled plug	IP66
56sp520	4117.533	20	3 phase 5 round pin 20A angled plug	IP66
56sp532	46.520.538.5	20	3 phase 5 round pin 32A angled plug	IP66
56sp540	46.520.538.5	20	3 phase 5 round pin 40A angled plug	IP66
56sp550	46.520.538.5	20	3 phase 5 round pin 50A angled plug	IP66
56sp310R	4117.533	20	3 phase 3 round pin 10A angled plug	IP66
56sp320R	4117.533	20	3 phase 3 round pin 20A angled plug	IP66
56sp332	46.520.538.5	20	3 phase 3 round pin 32A angled plug	IP66

Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
