Saddle Moving Surface Grinding Machine, Surface Grinder
Product Specifications
| Prod Model: |
SG-30100 SG-3063 SG-40100 SG-4080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Delivery Time: |
75-90 Days |
| Voltage: |
as Customer's Request |
| Power: |
5.5kw |
| Dimension(L*W*H): |
2320*2200/2350mm |
| Weight: |
2900/3100/3300kg |
| Color: |
Customized |
| Type: |
Surface Grinding Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
Normal Precision |
| Cylindrical Grinder Type: |
Surface Grinding Machine |
Product Description

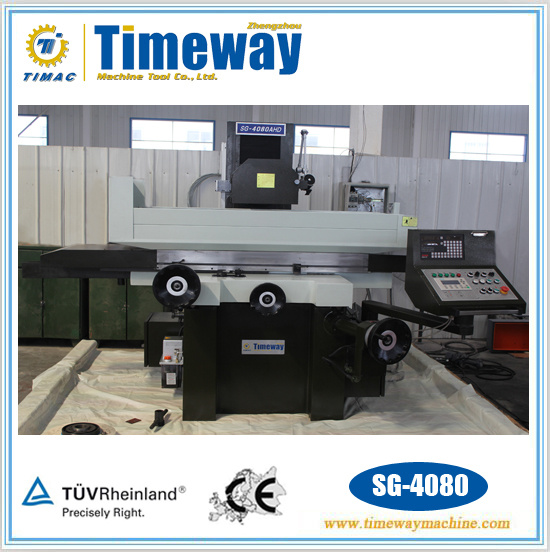

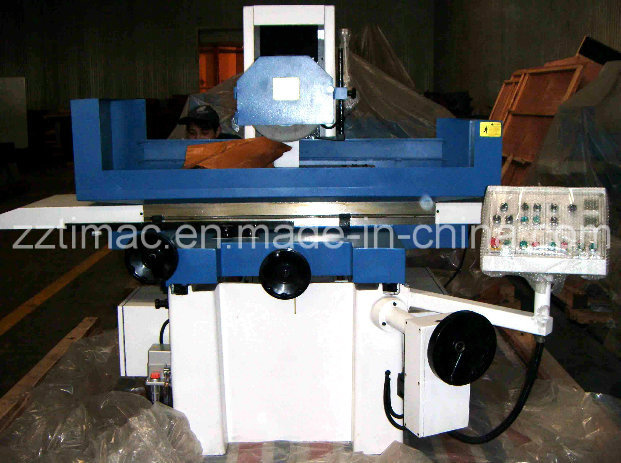

Saddle Moving Surface Grinding Machine
Surface Grinder
PART 1---Product Description
Features:
1) Slide way:
The slide way with the TF wearable belt, and have been precision manual scraped.
Only by this, the machine have high accuracy and smooth moving and long using life.
2) Spindle Unit:
The high precision spindle unit is well designed and produced. high load resistible,
mounted inpre-loaded angular deep-groove ball bearing ensures low-vibration
peration, high accuracy, increased lifetime, and low maintenance.
3) Lead Screw:
The vertical lift lead screw is made in Taiwan, Name: SHYH MINMACHINERY. The Cross
feed screw is Ball screw( SG-30~40 series), make sure the smooth moving. AC motor
drove the cross screw by timing belt then realize autointermittent feed.
4) Motor:
The spindle Motor, Y axis drove Motor, and other important parts, Are all made by
famous specialty manufacturer, SHVH MIN,Juli, Shuanglin etc.
(1). AHD model ( with AUTO down feed)
(2). For AHD model, the spindle elevating motor adopt Servo motor made in Japan
(Panasonic), and controlled by Siemens PLC.The operator can set the Auto
working feed rate and times,spark grinding times by the control panel. When
finish grinding, the spindle will lift up auto.
(3). The wheel guard with micro switch, even the door is opened, the spindle would
be power off (only for AHD)
Standard Accessories:
Wheel chuck, Wheel balancing arbor, Wheel extracting units, Coolant tank, Work light, Tool box & tools, Wheel dresser(without diamond pen), Standard wheel, Leveling wedges and foundation, Electric magnetic chuck, PLC auto. grinding controller(only for AHD model), Operation manual(English edtion).
Optional Accessories:
Wheel balancing stand, Parallel dresser, Cooling system with paper filter, Cooling system with magnetic separator, Cooling system with magnetic separator & paper filter
Parameter:
Specification |
Unit |
SG-3063AH |
SG-30100AH |
SG-4080AH |
SG-40100AH |
SG-3063AHR |
SG-30100AHR |
SG-4080AHR |
SG-40100AHR |
SG-3063AHD |
SG-30100AHD |
SG-4080AHD |
SG-40100AHD |
Table size (W×L) |
mm |
305x635 |
305x1020 |
406x813 |
406x1020 |
Longitudinal travel |
mm |
765 |
1130 |
910 |
1130 |
Cross travel |
mm |
340 |
340 |
450 |
450 |
Max. distance from spindle to table |
mm |
580 |
580 |
580 |
580 |
Electro magnetic chuck size |
mm |
300x600 |
300x1000 |
400x800 |
400x1000 |
Speed of table longitudinal move |
m/min |
7~23 |
Table cross
movement |
Auto feed |
mm |
0.1~8 |
Rapid feed |
mm/min |
990 |
Handwheel feed |
mm/div |
0.02 |
Wheelhead
vertical
movement |
Auto feed |
mm |
0.005/0.01/0.02/0.03/0.04/0.05 (Only for AHD series) |
Rapid feed |
mm/min |
460 (Only for AHR/AHD series) |
Handwheel feed |
mm/div |
0.005 |
Grinding
wheel |
Spindle speed |
rpm |
50HZ: 1450 / 60HZ: 1750 |
Wheel size |
mm |
350x40x127 |
Spindle motor |
kw |
5.5 |
Hydraulic pump |
kw |
2.2 |
Cooling pump |
kw |
0.125 |
Elevating motor |
kw |
0.25 (AHR model) / 0.5 (AHD model, Servo motor) |
Cross feed motor |
kw |
0.04 |
Total rated power |
kw |
9 |
Max. loading capacity
(include chuck) |
kg |
270 |
400 |
500 |
600 |
Height of the machine |
mm |
1890 |
Floor space (L×W) |
mm |
2900x2200 |
4400x2200 |
3600x2400 |
4400x2400 |
Gross weight |
kg |
2900 |
3300 |
3500 |
4000 |
Package size (L×W×H) |
cm |
235x222x215 |
295x222x221 |
285x227x218 |
295x227x221 |
Tips:
AH: auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
AHR: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement
on vertical
AHD: auto feed on transverse, hydraulic transmission on longitudinal, auto feed on
vertical.
PART 2---Our Services1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost
born by customer).
