Product Specifications
| Prod Model: |
F2.5-OTH40L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Sail |
| Engine Size: |
2.5HP - 40HP |
| Certificate: |
CE, TUV |
| Quality Control System: |
ISO9001:2008 |
| Fuel Tank: |
16L / 24L |
| Color: |
Black / Silver / Deep Grey |
| Control: |
Tiller Control or Remote Control |
| Warranty: |
2 Years |
| Spare Parts: |
2% |
| Engine Type: |
Gasoline |
Product Description

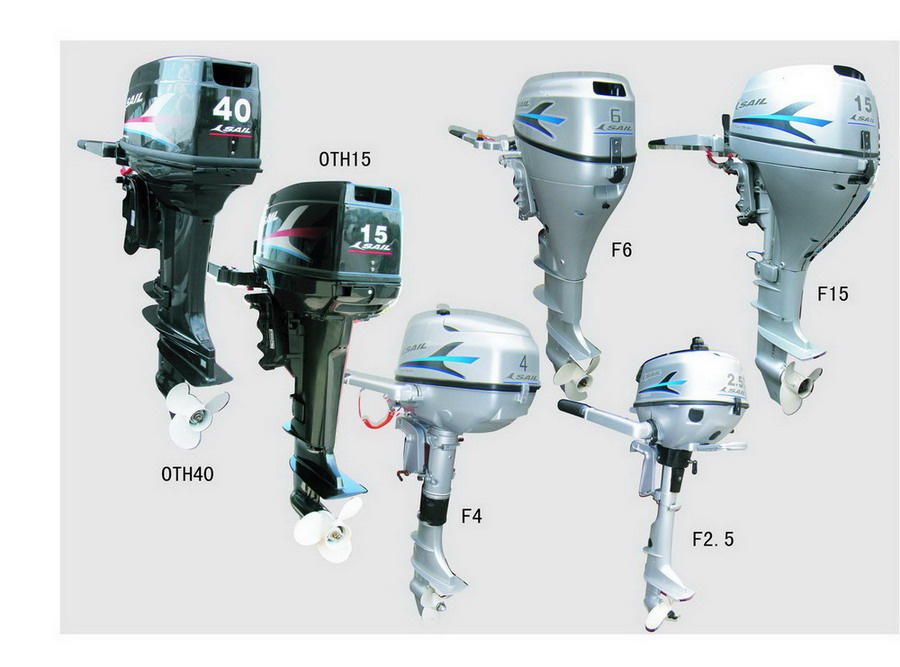

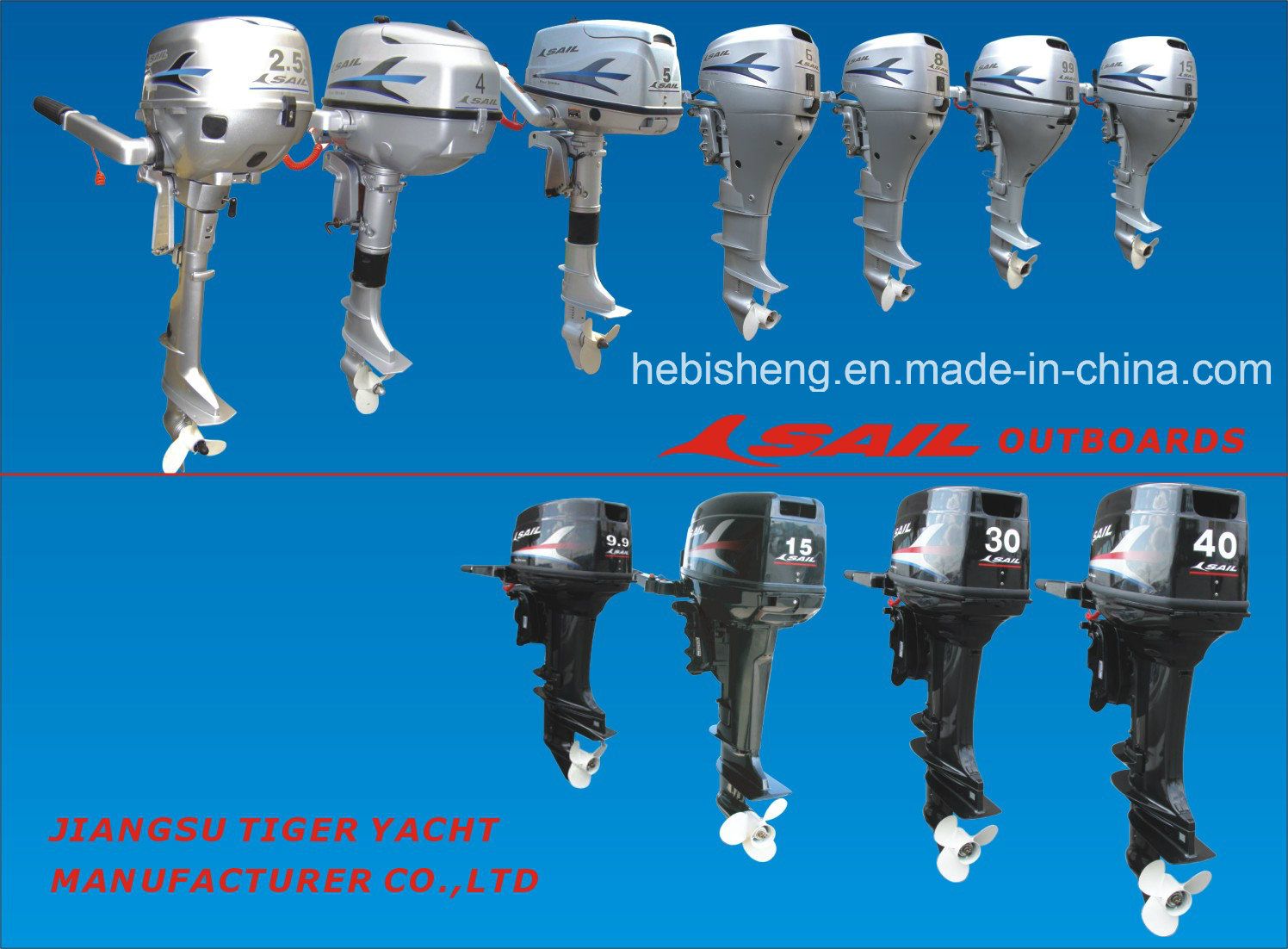

4 stroke outboards: F2.5, F4, F5, F6,F8, F9.9, F15,F20, F25.
2 stroke outboards: OTH5,OTH8,OTH9.9,OTH15,OTH25,OTH30,OTH40.
| MODELS: | OTH9.9 | OTH15 | OTH40 | F2.5 | F4 | F6 | F8 | F9.9 | F15 |
| Max. Output | 9.9HP/7.3KW | 15HP/11.00KW | 40HP/29.4KW | 1.8KW | 2.9KW | 4.4KW | 5.8KW | 7.3KW | 11KW |
| Full Throttle Operating Range rpm | 4500-5500 | 4500-5500 | 4500-5500 | 5250-5750 | 4000-5000 | 4000-5000 | 4500-5500 | 4000-5000 | 4500-5500 |
| Stroke | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Cylinder | 2 | 2 | 2 | 1 | 1 | 2 | 2 | 2 | 2 |
| Displacement | 246mL | 246mL | 703mL | 72 | 112 | 197 | 197 | 323 | 323 |
| Bore X Stroke | 56*50mm | 56*50mm | 80*70mm | 54*31.5 | 59*41 | 56*40 | 56*40 | 59*59 | 59*59 |
|
|
|
|
|
|
|
|
|
|
| Weight | 36kg | 36kg | 73.6kg | 17 | S:22 L:23 | S:37 L:38.5 | S:37 L:38.5 | S:45 L:47 | S:45 L:47 |
| Gear Ratio | 2.08(27:13) | 2.08(27:13) | 2(26:13) | 2.08(27/13) | 2.08(27/13) | 2.08(27/13) | 2.08(27/13) | 2.93(38/13) | 2.08(27/13) |
| Gear Shift Position | F-N-R | F-N-R | F-N-R | F-N | F-N-R | F-N-R | F-N-R | F-N-R | F-N-R |
| Ignition System | CDI | CDI | CDI | TCI | TCI | CDI | CDI | CDI | CDI |
| Cooling System | Water-cool | Water-cool | Water-cool | Water-cool | Water-cool | Water-cool | Water-cool | Water-cool | Water-cool |
| Starting System | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Control System | Tiller | Tiller | Tiller | Tiller | Tiller | Tiller | Tiller | Tiller | Tiller |
| Lubrication System | Mixed fuel & oil | Mixed fuel & oil | Mixed fuel & oil |
|
|
|
|
|
|
| Capacity Of Fuel Tank | 24L | 24L | 24L | 0.9 | 1.1 | 12-24 | 12-24 | 12-24 | 12-24 |
Others size models: Suzhou sail motor., Ltd is one rofessional company on outboard motor, inflatable boat, generator, water pump. Location: Suzhou, China.
SAIL gasoline generator and water pump since 1995.
SAIL outboard motor since 2003.
SAILSKI inflatable boat since 2005.
SAIL outboard motor:
4 stroke outboard motor:
2.5HP/4HP/5HP/6HP/8HP/9.8HP/9.9HP/15HP/20HP/25HP and spare parts;
2 stroke outboard motor:
2.5HP/2.6HP/3.5HP/4HP/5HP/8HP/9.8HP/9.9HP/15HP/18HP/
20HP/25HP/30HP/40HP/60HP and spare parts.
SAILSKI Inflatable boat:
PVC or Hypalon fabric made inflatable tube/hull/keel, foldable aluminum floor, marine plywood transom.
CE approved/Hot sell models:
2.7m, 3m, 3.3m, 3.6m, 3.8m, 4.3m, 4.7m, 5m, 5.5m.
Others size models:
2m, 2.3m, 2.5m, 6m, 6.5m, 7m, 8m or customization size.
SAILSKI RIB boat:
Fiberglass hull/deck/transom, PVC or Hypalon fabric made inflatable tube.
RIB boat dinghy without console models:
2.3m, 2.5m, 2.7m, 3m, 3.3m, 3.6m, 3.9m.
RIB Boat with Console models:
3m, 3.3m, 3.6m, 3.9m, 4.3m, 4.8m, 5m, 5.2m, 5.5m, 5.8m, 6.8m, 7m, 7.6m.
At least 2-3 new style RIB boats will be developing every year.
SAIL Gasoline Generator:
1kw, 2kw, 2.5kw, 3kw, 4kw, 5kw, 6kw, 7kw.
SAIL Portable Inverter generator(frame type):
INF1500X 1kw, EP1600I 1kw, EP2800I 2kw, INF3800X 3.2kw. (220V~240V/50Hz only).
SAIL Gasoline water pump:
2inch, 3inch, 4inch, 6inch.
Professional technology, Guarantee quality, Fast service, Reasonable cost.
Welcome to inquire and order.
SAIL to better life!
