Salt Fog Spraying Corrosion Resistance Aging Machine for PCB (Hz-2001A)

Product Specifications

Prod Model:	HZ-2001A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Programmable Salt Spray Testing Room:	Customized
Testing Room Temperature:	Salt Test (Nss Acss)35 Oc+/-1oc
Pressure Barrel Temperature:	Salt Test (Nss Acss)47oc+/-1oc
Brine Temperature:	35oc+/-1oc 50oc+/-1oc
Air Pressure:	1+/-0.01kgf/Cm2
Spray Volume:	1.0~2.0ml/80cm2;/H
Testing Room Relative Humidity:	85% Above
Product Scopes:	All Environmental Test Chambers
Service:	OEM, Oversea Service
Type:	Salt Spray Testing Machine
Weight:	0-100Kg
Power Source:	AC220V
Maxcapacity:	Relative Humidity:85% Above
Accuracy Grade:	Spray Volume:1.0~2.0ml/80cm2/H
Load Way:	Corrosion Resistance Testing
Display:	LED Display
Control:	PLC Control

Product Description

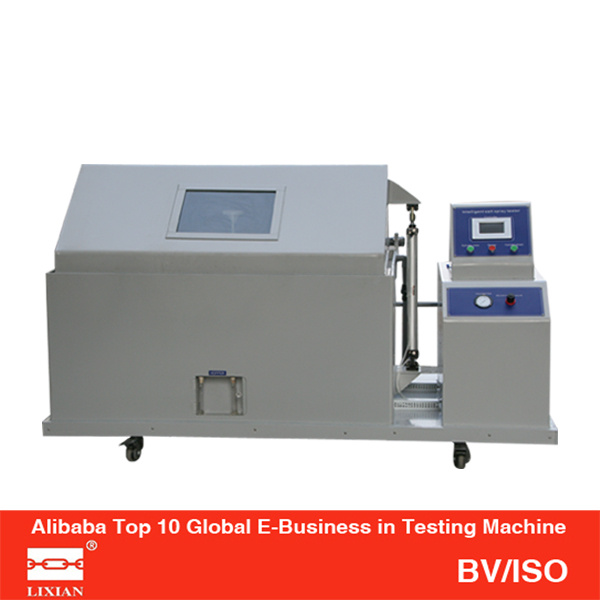

Programmable Salt Spray Tester HZ-2001A

Equipment summary:
Salt spray testing machine can test the corrosive resistance of products which the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.

Corresponding standard:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM. B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB. 10587-89 salt spray test
9. CNS. 4158 salt spray test
10. CNS. 4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Detailed configurations:
1, material:
(A) testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.
(B) cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.
(C) reagents added bottles attached with water gauge, cleaning easy and not easy to break.
(D) saturated air barrels is made of SUS # 304 stainless steel.
(E) testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece.

2, according to CNS JIS ASTM GB2423.19 specifications, constant temperature can be set
(A) Salt spray test: NSS, ACSS
1. Testing room: 35 C ± 1 C
2 saturated air barrels: 47 C ± 1 C
(B) anti-corrosion test: CASS (copper acetate)
1. Testing room: 50 C ± 1 C
2 saturated air barrels: 63 C ± 1 C

3, air supply system: Air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).
(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.
(B) Testing configuration is switch connector designed for SO2.

4, spray form:
(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.
(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.
(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).

5, heating devices:
By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).

6, the control system:
(A) testing room temperature controller is the digital micro-computer products 0-99.9 º C, liquid crystal digital display with PID automatic calculation, the control error is ± 0.3 º C (YANG MING6802) 1 PCS.
(B) saturated air barrels controller 0 ~ 99.9 º C, liquid crystal digital display with PID automatic calculation, the control error is ± 0.3 º C (YANG MING6802) 1 PCS.
(C) safe temperature controller of heat expansion of the liquid tank 30 ~ 110 º C (Italy) 1 PCS.
(D) safe temperature controller of expansion of the saturated air barrel: 30 ~ 110 º C(Italy) 1 PCS.
(E) digital time controller 9.9s ~ 9990hr (Taiwan) 1 PCS.
(F) timer 0 ~ 9999hr (Taiwan Anliang) 1 PCS.
(G) buckle switch, continuous buckling 20000 times.
(H) 60 type, 90 type for manual flip, 120, 160, 200 type for the pneumatic cylinde automatic opening and closing.
(J) pressure gauge, (Taiwan B card).
(K) fixture bleaker (YANG MING).
(L) electromagnetic valve; (KSD).
(M) regulating valve (YIHUA).
(N) bleaker (Omron).

7, add water systems:
Using automatic water replenishment system, automatic replenishment when the water level is too low.

8, safe protective device:
(A) low water level, automatically cut off power supply.
(B) over-temperature, automatic cut off the power supply.
(C) attached to the safe warning light device.

9, attachment:
Reagent sodium chloride (NACL) 500 g: 2 bottles
Calibration cup: 1 PCS
Instruction: 1 PCS
pH test paper: 1 PCS

Model	HZ-2001C	HZ-2001B	HZ-2001A
Inside box size(cm)	60x45x40	90x60x50	120x80x50
Outside box size(cm)	107x60x118	141x88x128	190x110x140
Testing room temperature	Salt test (NSS ACSS)35 ºC±1ºC/Corrosion Test (CASS)50ºC±1ºC
Pressure barrel temperature	Salt test (NSS ACSS)47ºC±1ºC/Corrosion Test(CASS)63ºC±1ºC
Brine temperature	35ºC±1ºC 50ºC±1ºC
Testing room Capacity	108L	270L	480L
Brine tank capacity	15L	25L	40L
Salt concentration	The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air pressure	1.00±0.01kgf/cm²
Spray volume	1.0~2.0ml/80cm²/h (working at least 16 hours, and then take the average)
Testing room relative humidity	85% above
PH	6.5~7.2 3.0~3.2
Spray form	Programmable spray (Including continuous and intermittent spray)
power	AC220V1Φ10A	AC220V1Φ15A	AC220V1Φ20A
