Product Specifications
| Prod Model: |
WVD VDS VSN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Ultra Small Diameter11.6cm Height 9cm |
| Inatallation: |
Drilling Embedded in 5 Minutes |
| Wireless Communication Range: |
120m |
| Battery Life: |
10 Years |
| Work Condition: |
-40 to 85 Degrees All Weather |
| Upgrade: |
Wireless Ota |
| Accuracy: |
97%+ |
| Detection Range: |
0 to 2m Adjustable |
| Detetion Results: |
Vehicle Counting, Presence, Speed, Direction |
| Applications: |
Its Traffic and Entrance Controlling Systems |
| Material: |
Polycarbonate |
| Feature: |
Wireless Detect Easy Install Cost Save Long Life |
| Solar Cell Type: |
Poly-crystalline Silicon |
| Type: |
Its Traffic Wireless Megnetometer Vehicle Dection |
| Light Color: |
Green and Red |
Product Description

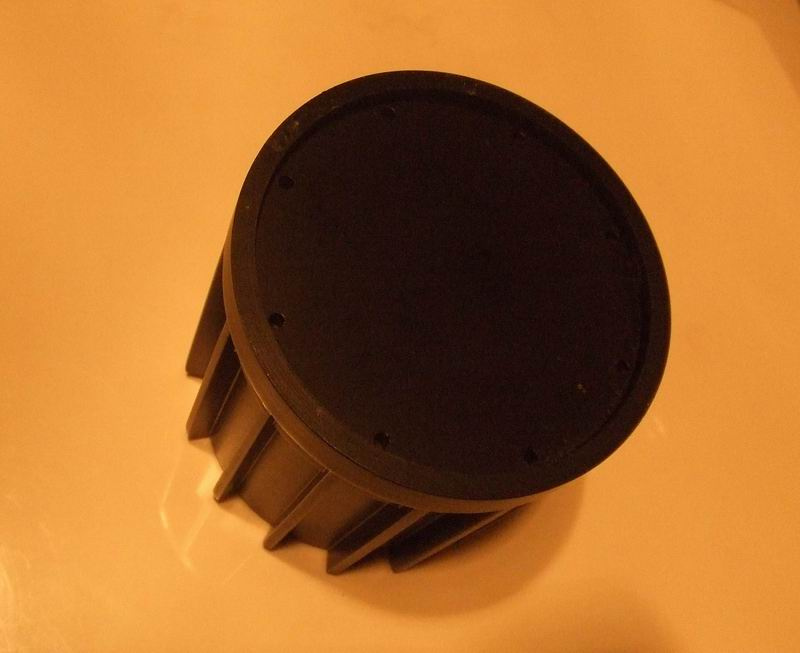

WVD Wireless Vehicle Detection Sensor
Less cost, more efficiency
Cost efficient traffic wireless vehicle detection solution
No cables, no cutting, no traffic close
Less time, less cost, less maintenance
DESCRIPTION:
WVD-130X wireless vehicle detection sensor is designed for pursuit of high efficiency and low cost ITS traffic application systems. Based on technology of magnetic detection and uPower® Wireless sensor network, WVD -130X sensors can be easily installed on road in few minutes without any wiring to acquire dynamic traffic flow information with no maintenance for many years.
APPLICATIONS:
ITS Traffic flow monitor
Speed enforcement
Red light enforcement
Travel time guidance
Traffic signal optimization
Freeway incident detection
Entrance vehicle counting
FUNCTIONS:
Traffic flow detection
Vehicle presence detection
Driving direction detection
Vehicle speed detection
Vehicle counting
Temperature detection
All weather work condition
KEY FEATURES:
433MHz 120m transmit range
-40~85 degree work temperature
10 years lifespan
Wireless OTA upgrade
97%+ accuracy
Φ116/H90mm
Embedded installation
INSTALLATION:
Drill a small hole of Φ12/D10cm
Fill it with cement to 1/2
Embedded WVD to finish installation
Wireless vehicle detection solution makes your job easy.
IANT Networks focuses on the innovation and manufacture of wireless vehicle detecting solution and real-time traffic information collection system. By virtue of the application of advanced sensing technology, wireless communication technology, sensing thing technology and many years' experiences in this field, iANT is successes in creating the WVD series wireless vehicle detector products and WAP series wireless access point, which build up the traffic information monitoring system. In the past 5 more years, iANT wireless vehicle detecting products had successfully replaced loops to monitor vehicles and the relative velocity, occupy rate and traffic flow in many projects of artery, freeway and intersection applications, for example in traffic flow monitoring system, red signal and speed enforcement, traffic lights optimization, traffic guide system, etc.
IANT wireless parking detection sensors, which are installed in each individual parking space, measure occupancy of these parking spaces. Due to the wireless sensor network formed among these parking detection sensors, wireless routers and one data collector in a certain parking lot, the parking space occupancy information is transmitted to system provider's parking management platform timely.
