Sample Drill Rig

Name: Sample Drill Rig
Brand: China-Manufacturer-Directory.com
SKU: 753681295
Availability: InStock
Rating: 4.8 (77 reviews)

Supplier:	Chenguang Machinery & Electric Equipment Co., Ltd.
Price:	US $ 1600-2600/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JSGQ
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Drill Depth:	10-30m
Controlling Mode:	Artificial
Precision:	Precision
Automatic Grade:	Semiautomatic
Structure:	Vertical Drilling Machine
Layout:	Vertical

Product Description

Specifications

1.components are available upon request
2.with two optinal speed
3.can be dissassembled in small parts
3.professional service

1.Description:

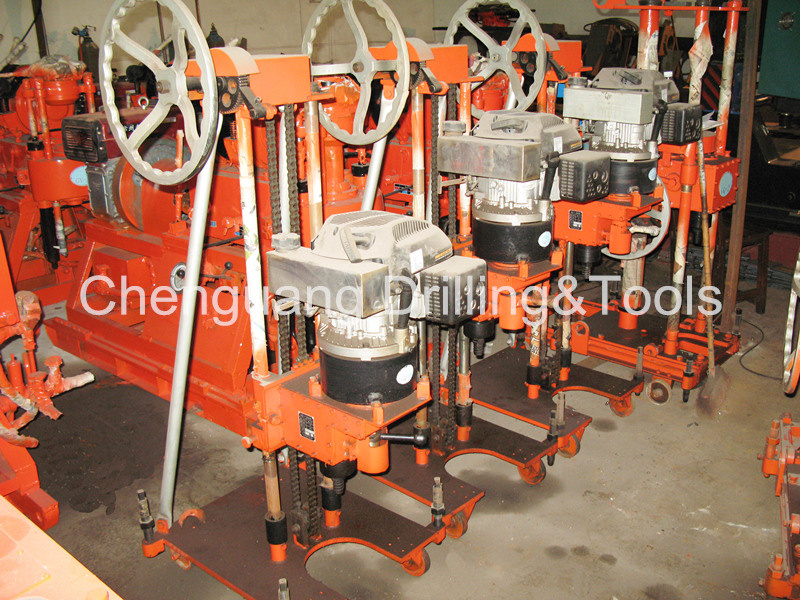

JS-GQ-2 rig is a lightweight Rig. Mainly applies to environment geology, agricultural geology, geological disaster management, soil subgrade, small retaining wall of core identification, expressway curing and etc. Its main features are: light weight, detachable sex strong, odd maximum weight 55 kilograms, give to ride 685 mm, have two gears speed, orientation and can be optional put Angle to meet the different needs.

2.Technical Data:

Drilling Depth	10-15m

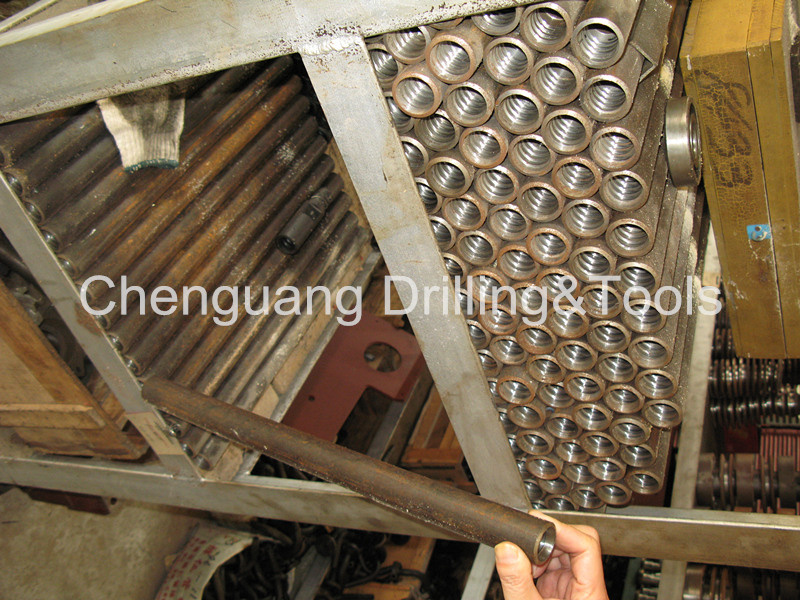

Drill Pipe Diameter	42mm
Rotary speed	775,385r/min
Max Torque	74Nm
Feeding Stroke	685mm
Power Type	Y100L2-4
Rated Power	3kw
Rated Speed	1420r/min
Dimension (L×B×H)	704×525×1322mm
Weight(power included)	160kg
