Shanghai Chemix Machinery Co., Ltd. >> Sand Milling Machinery for Matte Paint

Sand Milling Machinery for Matte Paint

Sand Milling Machinery for Matte Paint
Supplier: Shanghai Chemix Machinery Co., Ltd.
Price: US $ 1000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: CGHD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 50-30000L
Mixer Type: Homogenizer
Working: High Speed Mixer
Application: Granules
Additional Capabilities: Milling

Product Description

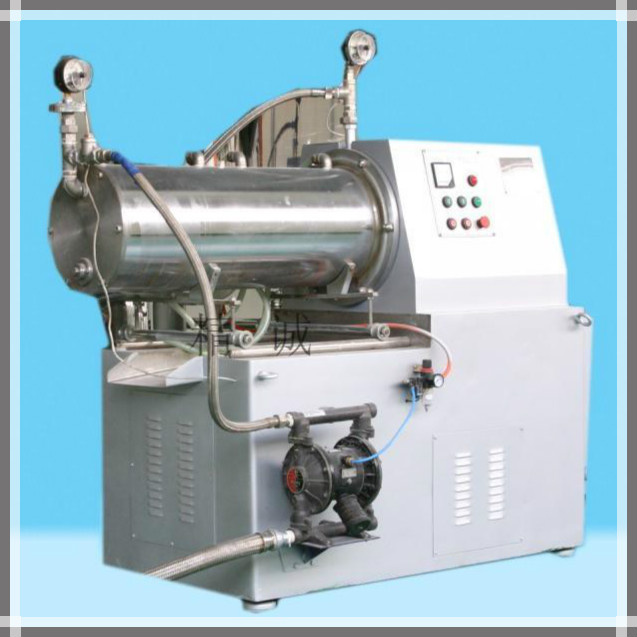

sand milling machinery for matte paint

1, Description:
Disc type horizontal sand mill is continuous wet grinding & dispersing equipment with horizontal cylinder. It is grinding and dispersing equipment for solid / liquid suspensions. Dials of pin type horizontal sand mill are discs and can be made of stainless steel materials wear-resistant alloy or zirconium wrapped rods according to users' needs. It is widely used in pigments, paints, dyes, colorants, inks, ink, pharmaceutical, chemical and other industries

2, Tech Specs:
ModelPower
(KW)
Speed
(RPM)
Capacity
 (L/H)
Dimension
(mm)
Weight
(kg)
CGHD-20151100100-2001430×570×1350550
CGHD-3018.51100150-4001430×570×1350650
CGHD-40221000200-6001630×650×1560780
CGHD-5030900300-8001630×650×1560950
CGHD-6037900400-10001920×700×17801150

In order to give you a timely & accurate offer, please finish the below questionnaire:

1, Raw material
Names of raw materials?
Forms of raw materials?
A, similar to water;
B, similar to tomato sauce;
C, similar to honey;
A, B, or C ?
What is the viscosity?         CPS
What is the density?     Kg/liters
What is the capacity?    kgs or     liters
Application industry? (E.g. food, chemical etc.)
2, Process
requirements
Need only a mixer or a complete line?
Batch mixer or continuous mixer?
A: first start mixer and then feed materials;
B: first feed materials and then start mixer;

Feed raw materials by hand or by machinery?
Final mixture goes to storage silo or packer?
Manually or pneumatic discharge valve?
Fixed speed or variable speed?
Can you supply air pressure?
3, Surface
treatment
A, Factory standard (paint for MS, polish for SS)
B, Special treatment
A or B?
4,Construction
material
Contact parts:
A, stainless steel 316L    B, stainless steel 304
C, mild steel            D, special materials
A, B, C or D?
Non-contact parts:
A, stainless steel 316L    B, stainless steel 304
C, mild steel            D, special materials
A, B, C or D?
5, Electronic control panelA, supplier by us (CHMIX company);
B, supplied by other company;
A or B?
6, Power
supply
       volts,      Hz, 3 phase;
       volts,      Hz, single phase;

7, optional features--heating/cooling jacket;
--liquid spray system;
--Light glass;
--Sampling device;
--pressure requirements
--temperature requirements
--ex-proof requirements
--other custom-made features






Chemix Machinery Co., Ltd. Focuses on powder & liquid solution and is an entity manufacturing enterprise which combines design, R&D, sales and manufacturing. Our main products: Powder equipment (including mixer, screener, conveyor, crusher, packer, dryer, granulator), liquid equipment (including lab equipment, mixer, disperser, emulsifier, grinder, pump, filler, filter), steel fabrication (including steel structure/frame, hopper/tank) and complete production line.

Chemix Machinery Co., Ltd. Has blessed geographical advantage. Our manufacturing base is located in Jiangqiao Industrial Park, Jiading District, Shanghai. It is 10 km from Hongqiao Airport (Hongqiao Railway Station), 20 km from Pudong Airport, 30 km from Shanghai South Railway Station and Shanghai Railway Station and 80 km from Shanghai's largest import & export port (Yang Shan Deepwater Port).

80% of the company's sales come from abroad, our machinery are mainly exported to over 50 countries: South Korea, Myanmar, Japan, Saudi Arabia, Thailand, Iran, India, Jordan, Vietnam, Afghanistan, the United Arab Emirates, the Philippines, Cambodia, Qatar, Kuwait, Lebanon, Turkey, Singapore, Syria, Iraq, Israel, Pakistan, Malaysia, Bangladesh, Sri Lanka, Indonesia, Poland, Denmark, Germany, France, the Netherlands, Switzerland and Greece, Great Britain, Russia, Portugal, Spain, Italy, Cuba, the United States, Mexico, Canada, Jamaica, Costa Rica, Brazil, Peru, Chile, Argentina, Venezuela, New Zealand, Australia, Egypt, South Africa, Kenya, Libya, Morocco, Tunisia, Zambia, Zimbabwe, Nigeria, Tanzania, Algeria, Madagascar.

Customers' demand with endless variations is our drive for excellence; "excellent quality, perfect service" is our ultimate goal; With trust and support from industry colleagues, friends and customers, we will go further, fly higher.
