Sandwich Panel Mobile House Structural Building Materials

Name: Sandwich Panel Mobile House Structural Building Materials
Brand: china-manufacturer-directory.com
SKU: 691538955
Availability: InStock
Rating: 4.3 (68 reviews)

Supplier:	Zhangjiagang Oriental Construction Material Co., Ltd.
Price:	US $ 10/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	OCM sandwich panel
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Any Color
Density:	900-1000kg/M3 of HPL Table Top
Edge:	Beveled Edge,Flat Edge / Eased Edge,
Surface Treatment:	MGO Boards
Backside Treatment:	MGO Boards
Fire Resistant:	3 Hours
Delivery:	15 Days After Deposit
Certificates:	CE,ASTM ,SGS,ISO9001:2000 QC System
Sample:	Free Sample
Quality:	Grade a

Product Description

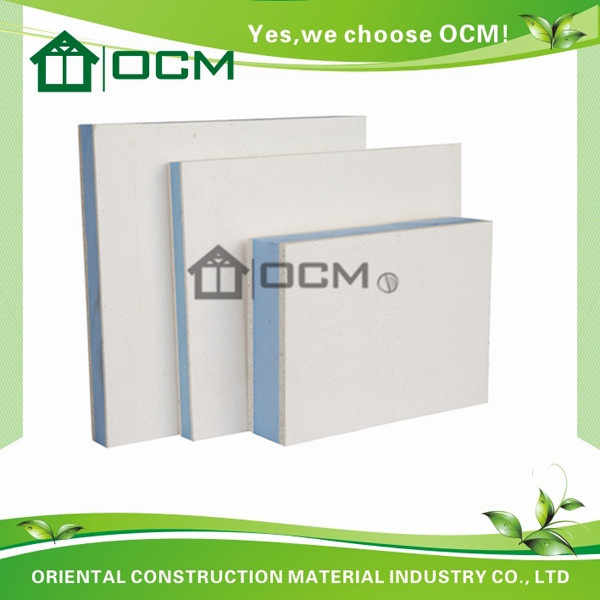

Structural Insulataed MGO panel

It is a composite building material. It consists of a sandwich of two layers of structural board with an insulating foam in between. Panel skins are magnesium oxide boards. Insulation core can be Expanded Polystyrene(EPS), Extruded Polystyrene(XPS).

Performance:

1. Fire protection

2. Energy efficient

3. Water resistant

4. Mould resistant

5. Structural integrity

6. Environmentally Friendly

Specification

1. MGO board thickness: 3-20mm

2. EPS core thickness: 20-250mm

3. XPS core thickness: 50-120mm

4. Max width: 1220mm

5. Max length: 3660mm

6. Connection can be Tongue & Groove, Camlock, two or four sides closed.

Other pattens can be designed by clients' requirements.

Technical Date for OCM SIPs
Items	Units	120mm	100mm	75mm	50mm
Volume weight	Kg/m3	750-800
Anti-bending damage load	Times	≥4.0	≥4.0	≥3.0	≥3.0
Anti-pressure strength	MPa	≥3.5
Anti-impact performance	Times	≥5.0
Soften coefficient		≥0.8
Moisture content	%	≤6		≤8
Drying shrinkage value	mm/m	≤0.6
Single-point hanging strength	N	≥1000
Heat-transfer coefficient	W/(m 2 .k)	————	2.95	3.021	3.215
Combustion performance	Grade	A
Fire resistance	H	≥4.5	≥4.0	≥2.5	≥1.0
Sound insulation	dB	≥47	≥42	≥40	≥35
Radiation	A (First Class, no limit of production & distribution )
Conservation of Environment	100% free of asbestos

Zhangjiagang Oriental Construction Materials Co., Ltd. located in Zhangjiagang city, Jiangsu province, China. We are a comprehensive enterprise combining researching, manufacturing, processing and trading magnesium oxide products. Our factory name is Oriental Construction Material Industry Co., Ltd. It covers an area of 120, 000 square meters with annual production ability of 20, 000, 000 square meters.

Business scope:

We not only supply finished products including MGO board, MGO ceiling, decorative MGO board, MGO sandwich panel and fiber cement board. But also supply raw materials and technology. With 12 years manufacturing experience, we have successfully cooperated with clients in Brazil, UK, US, Australia, Bulgaria, Kazakhstan, South Africa and the Middle East.

Enterprise Culture:

We carry out the principle--Quality is the First, Client is the King, and Win-Win Cooperation. We are willing to develop together with the friends from all over the world.

Enterprise Offices:

Factory: N0.1 South Juxin Road, Juqiao Industrial Park, Zhangjiagang city, Jiangsu, China(Mainland)

Sales Office: Room 2703, Oriental Plaza, Zhangjiagang city, Jiangsu, China (Mainland)

Welcome you to visit us.
