Product Specifications
| Prod Model: |
Industrial Steel Structure |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Derusting: |
Ball Blast |
| Window: |
PVC or Aluminium Alloy Window |
| Materials: |
Q235B or Q345 |
| Door: |
Sliding Door or Automatic Rolling Door |
| Cutting: |
CNC Gas Cutting Machine |
| Painting: |
Automatic Powder Coating or Painting |
| Design: |
by Customized |
| Wall: |
Sandwich Panel |
| Size: |
by Customized |
| Type: |
H-Section Steel |
| Standard: |
GB |
| Trademark: |
Carbon Structural Steel |
| Forming: |
Hot-Rolled Steel |
| Connection Form: |
Bolt Connection |
| Member: |
Steel Column |
| Type Of Steel For Building Structure: |
H-Section Steel |
| Carbon Structural Steel: |
Q235 |
| Residential Wall Structure: |
Wall Support |
| Application: |
Prefabricated Buildings |
Product Description

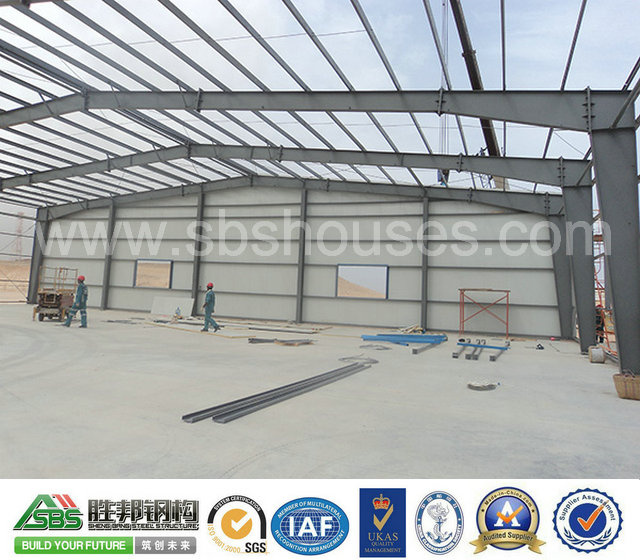

Sandwich Panel Steel Structure Workshop Building
STEEL STRUCTURE WORKSHOP
Steel structure workshop is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss (of course the span of plant is bigger, basic is the prefabricated steel structure truss now), steel roof, pay attention to the wall of the steel structure maintenance also can use brick wall.
1. Features: fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
2. Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3. Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
4. Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
5. Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.
Due to the above advantages, combination of light china steel building structures in construction engineering, railway, petrochemical industry, water conservancy construction highway construction and military engineering and earthquake relief in the fields of temporary is widely used in construction.
Steel Structure Workshop, Prefabricated Steel Structure Building:
1. Light weight, high strength, 50years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance.
Product Description
Steel structure workshop is the third generation construction.
It combines H section and c/z section into the frame with the profiled steel sheet or sandwich panel as the wal and roof.
The traditional reinforced concrete construction has aready been taken place by this kind of construction in developed contries.
It has many excellent charateristics such as light weight, larger span, less marerial, low cost, less foundation, short building cycle, safe, beautiful, ect.
It is widely used in single industrial factory, warehouse, business construction, office, parking lots, residence and so on.

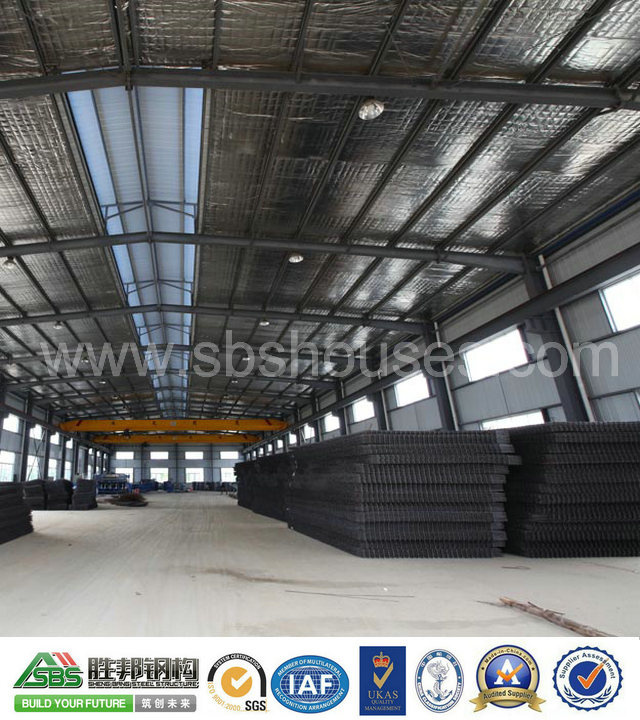

Pre engineered Workshop with Overheaded Hook Crane
1. Steel Framework: H section steel as columns and beams; C purlins and supporting parts
Surface Treatment of Steel Framwork: Painted or Glavanized
2. Roof Cladding: Corrugated Steel Sheet/ Insulated Steel Sandwich Panel
3. Wall Cladding: Corrugated Steel Sheet/Insulated Steel Sandwich Panel
4. Door: Sliding Door with Canopy/Rolling Door
5. Window: PVC Window/Aluminium-alloy Window
6. Overheaded Crane Option: Single-girder & Double-girder, weight range is from 1 ton to 30ton
7. Other Options: Roof Ventilation, Transparent Roof Sheet, Gutter and Downpipe, etc
More details, pls contact us directly
| General materials for whole steel construction |
| 1.Main steel structure frame: | Square tube, H section steel or welded by steel plate (Q235/Q345) |
| 2.Secondary steel frame: | Angle steel,round steel,round tube,square tube,C section steel (Q235/Q345) |
| 3.Embedded pieces and accessories: | High strength bolot,purlin-screw,common screw,self-threading pin,pull rod etc. |
| 4.Paint | Alkyd paint,zinc rich epoxy primer(anti- rust). |
| 5.Gutter: | Color steel sheet, galvanized steel, stainless steel. |
| 6.Rainspout: | PVC |
| 7.Roof panel: | Single steel sheet;EPS/rock wool/polyurethane panel,the thickness of steel sheet depended on client |
| 8.Wall panel: | Single steel sheet;EPS/rock wool/polyurethane panel,the thickness of steel sheet depended on client |
| 9.Roof ridge: | Color steel sheet (0.426mm/0.476mm/0.5mm) |
| 10.Trimming: | Color steel sheet (0.426mm/0.476mm/0.5mm) |
| 11.Door: | Roller shutter door/silding door/steel door/stainless door/sandwich panel door etc. |
| 12.Window: | PVC/aluminium window (silding/fix) |
| 13.Others: | ventilator, exhaust fan and so on. |
Material:
| Item name | Material characteristics | Material Grade | Surface Treatment |
|
| Anchor bolt | Steel rod M24,M27,M30,M33,M39,M42 | Q235B |
|
|
| Steel Column | H shape,Box,steel pipe,Hot rolled sheet | Q235B,Q345B | Paint or Hot dip galvanized |
|
| Steel Bracing | Steel rod,Steel pipe,Angle steel | Q235B,Q345B | Paint or Hot dip galvanized |
|
| Steel Beam | H shape,steel Truss,Hot rolled sheet | Q235B,Q345B | Paint or Hot dip galvanized |
|
| Steel Purlin | C or Z shape, steel purlin Thickness:1.8mm~3.0mm | Q235B,Q346B | Hot dip galvanized |
|
| External wall panel,Roof panel | Sigle colorful corrugate steel sheet,Sanwich panel with EPS,Rock wool,Pu,Glass wool etc., | Steel T=0.426~0.8mm, insulation T=50~150mm | Alu-zinc 150g,
Fluorocarbon paint |
|
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot dip galvanized |
|
| Window | Aluminium alloy-Glass,Alminium alloy-shutter | T=1.0~2.0mm | Alloy |
|
| Daylighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/ºC | Light transmittance 85% |
|
| Ventilator | Turbine ventilator, ventilator along a slope, ventilator on a ridge | Steel,stainless steel,PC | Paint or Hot dip galvanized,304 |
|
| Gutter | Galvanized Steel plate,stainless steel plate | T=2.0mm | Hot dip galvanized,304 |
|
| Downpipe | PVC pipe | 110,160,200 | Paint |
|
| Bolt | Ordinary, high strength,galvanized | 10.9S,4.8s | Hot dip galvanized |
|
