Product Specifications
| Prod Model: |
OEM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel: |
Polyurethane Insulation |
Product Description
Product Description
Cold room for kitchen
Standard Coldroom is Polyurethane are of 100% Polyurethane insulation, they have certain dimension, standard width is 1183mm, the maximum length is 12 meter. Equipped with highly efficient refrigeration units. Panel has a flame retardant.
Standard Coldroom is Polyurethane panel steel finish.
A. Stucco embossed aluminum
B. Stainless steel
C. Painted galvanized steel
D. PVC steel
Panel thickness
Panel THK(mm) Operating Temp.
50mm 5C (or above)
75mm -5C(or above)
100mm -25C (or above)
150mm -45C (or above)
200mm -55C (or above)
Pictures:

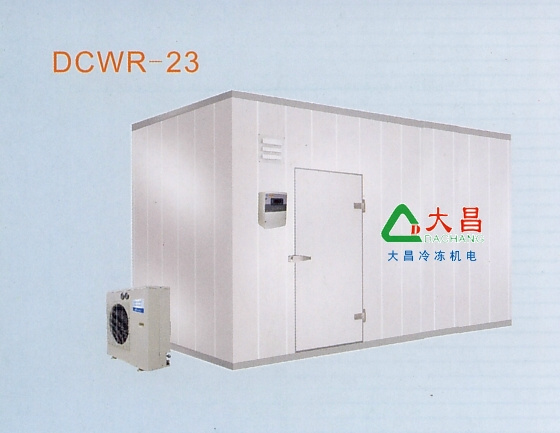

Model | DCWR-23 | DCWR-26 | DCWR-30 |
| Storage volume (M³) | 23 | 26 | 30 |
| Exterior dimensions(mm) | 3549W×3549L×2300H | 2366W×5915L×2300H | 3549W×4732L×2300H |
| Interior dimensions(mm) | 3349W×3349L×2100H | 2166W×5715L×2100H | 3349W×4532L×2100H |
| Condenser Model/power | DC-20FHG/1900W | DC-30FHG/2650W | DC-30FHG/2650W |
| Evaporimeter Model/power | DL15/180W | DL 30/270W | DL 30/270W |
| Condenser size(mm)/weight | 840W×310L×700H/50kg | 920W×320L×850H/53kg | 920W×320L×850H/53kg |
| Evaporimeter size(mm)/weight | 1130W×425L×465H/30kg | 1580W×425L×465H/49kg | 1580W×425L×465H/49kg |
| Liquid conduit/trachea(mm) | 10mm/16mm | 10mm/16mm | 10mm/16mm |
| Power | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
| Temperature | >-5ºC | >-5ºC | >-5º |
Dongguan City Dchang Refrigeration Electrical & Mechanical Engineering Co., Ltd. Specializes in polyurethane panl and refrigerating system design, manufacture and installation.
Dachang Company is located in Dongguan City, equipped with modern workshop and a complete set of imported CUSBER production line. The business scope of Dachang Company include polyurethane panl, sandwiched panl, modular cod room, display coler & frezer, refrigeration unit and cold ROM door including standard hinge door, convex door and sliding door.
The backing plates of polyurethane panel can be stucco embossed aluminum, stainless steel, painted galvanized steel and PVC steel.
Dachang Company is one of leading enterprises of Guangdong refrigeration industry. We passed the national ISO9001: 2000 quality certification in 2003. We have been approved by national forced CCC certification, the new-type practical patent certification of polyurethane compound insulation panels.
Technical innovation, excellent quality and perfect service make the products well sold in Australia, Canada, the Netherlands, France, Sri Lanka, Vietnam, Thailand, Singapore, India, Madagascar, Mauritius, Ghana, and Nigeria.
We would like to offer our excellent products to you.
