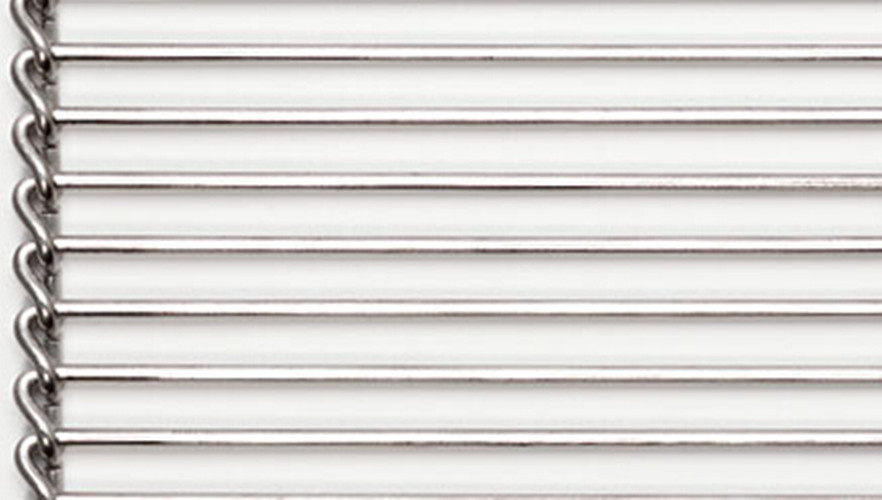

Both ends of straight wire are bent, and the wires having bent ends are assembltd. These belts are most simple ones. Some versions can be provided with the U bars preventing products falling.
The material is generally Sus304 or hard carbon steel wire. The diameter of wires are often 3mm or less. Usually, this kind is R1S.
Advantages:
1. High open area;
2. Simple structure ensures easy washing;
3. The positive sprocket driven ensures stable running.
| Specification |
| R1-25.4-6.0 |
| R1-19.05-6.0 |
| R1-15.857-5.0 |
| R1-12.7-4.0 |
| R1S-12.7-3 |
| R1S-10-2.3 |
| R1S-8.0-1.8 |
| R1S-7.0-1.6 |
| R1S-6.0-1.2 |
| R1S-5.5-1.0 |
| R1S-5.0-0.9 |
1. Modular plastic conveyor belt with maximum open area
WMB BELT new product, modular plastic conveyor belting, comes in two surface options. The open grid version provides maximum openness for air and water passage, making it ideal for washing applications. The closed oval version offers a smooth and flat surface with small oval perforations.
2. Easy assembly and repair with unique connector-less construction
This modular plastic conveyor belting has NO connectors, which makes it popular with maintenance mechanics. Plastic modules easily snap together for assembly and unsnap for replacement and repairs. A screwdriver is all that is needed to simply and quickly install modules and get your conveyor belt system up and running again.
3. Wide range of application
Modular conveyor belting will fit on many existing process conveyors presently using metal, plastic or rubber belting.
4. Positive drive for precise conveying
WMB conveyor belting is positively driven with matching sprockets.
specification | weight(kg/m²) |
| A4-11.7-6.5-3.0-2.6 | 40.1 |
| A4-9.0-5.0-2.3-2.0 | 30.8 |
| A4-6.5-3.8-1.8-1.6 | 21.6 |
| A4-4.5-2.3-1.2-1.0 | 16.5 |
| A4-8.8-4.6-2.5-2.0 | 14.8 |
| A3-9.6-6.0-3.0-2.6 | 40 |
| A3-6.8 4.5-2.3-2.0 | 27.8 |
| A3-5.8-4.2-2.0-1.6 | 24.3
|
