Product Specifications
| Prod Model: |
Sanway DP4080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
4 Channel, 10k Ohms Balance |
| Output: |
8 Channel, 600 Ohms Balance |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Button Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Metal |
| Application: |
Home |
| Certification: |
RoHS |
| Monitor: |
LCD Screen |
| THD: |
0.005%-0.01% |
Product Description

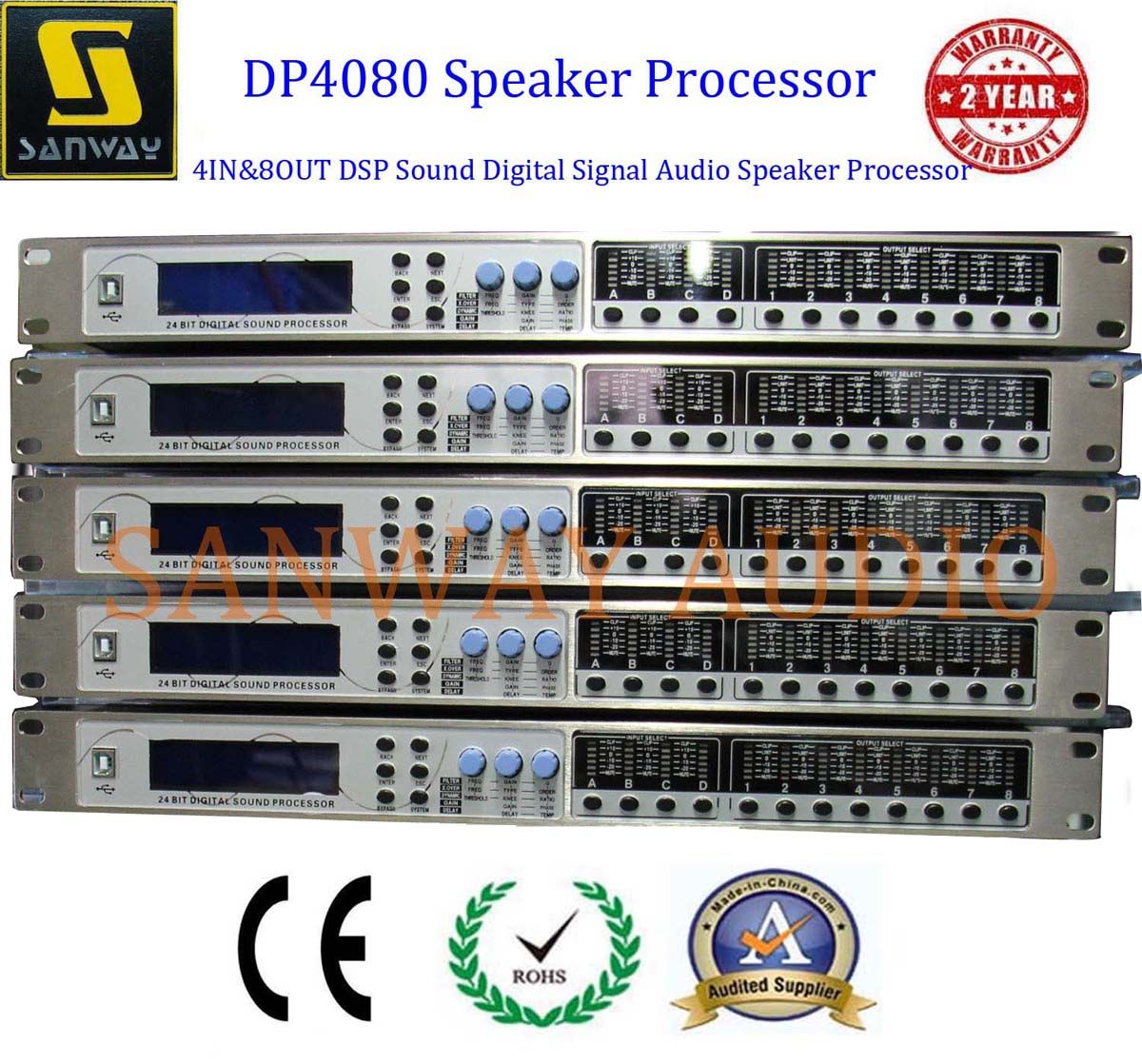

Model: DP4080 4IN&8OUT DSP Digital Speaker Processor
Key Feature:Each output channel can be independently set as LPF and HPF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 db/octave
Sanway Hotseller FP10000Q Power Amplifier:
http://cnsanway.en.made-in-china.com/product/DqimbPglZeWC/China-10000W-Audio-Amplifier-PA-Power-AMP-Professional-Amplifiers-Fp10000q.html
Sanway DP4080 Professional DSP Digital Audio Speaker Processor
| MODEL: | DP4080 4IN&8OUT Digital Speaker Processor |
| Input: | 4 channel, 10K ohms balance |
| Output: | 8 channel, 600 ohms balance |
| PC Com Port: | 1 USB Com Port on front panel, 2 RS485 Com Port on back panel (RJ-45) |
| Processor: | 96KHz Sampling frequency, 32-bit Floating-Point DSP, 24-bit A/D and D/A converter |
| Dynamic range: | >108dB |
| Frequency Response: | ±0.25dB, 15Hz --- 20KHz |
| Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
| Signal to noise ratio: | >110dB |
| crossover filter: | Each output channel can be independently set as LPF and HPF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 db/octave |
| EQ: | Bandwidth:0.016 to 4.0 oct, Frequency:20Hz to 20KHz, Gain: -30dB to +15dB, step:0.1 dB |
| Delay: | 0ms to 1000ms |
| Gain: | -40dB to +12dB |
| Display: | 2 x 20 LCD |
| Store Settings: | 30 user program dynamic storage |
| Size (H x W x D) : | 45 mm x 483 mm x 288 mm |
| Power supply: | 50/60 Hz, 90 - 240V/AC |
| Power consumption: | < 22 W |
| Net Weight(kg) | 3.3kg |
| Gross Weight(kg) | 4.6kg |
Sanway Professional Audio Equipment Co., Ltd is one of the best PRO Audio suppliers in Guangzhou, China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service since 1997 and gained very high reputation at home and abroad.
With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional Power Amplifiers; Active Speaker Module; Line Array System; Indoor & outdoor Professional Speakers; Digital Speaker Processors; Equalizer etc.
We always keep and follow the principle to do business:
The same product, we win by the quality;
The same quality, we win by the price,
The same price, we win by the service.
We sincerely hope that continuous business relationships can be established and please trust that we are always doing our best to realize good business relationships with our clients. We are constantly seeking new agents and distributors worldwide.
Don't hesitate to contact us if you are interested in any item, or should you have any special requirement, please kindly let us know directly, we will reply you as soon as possible.
