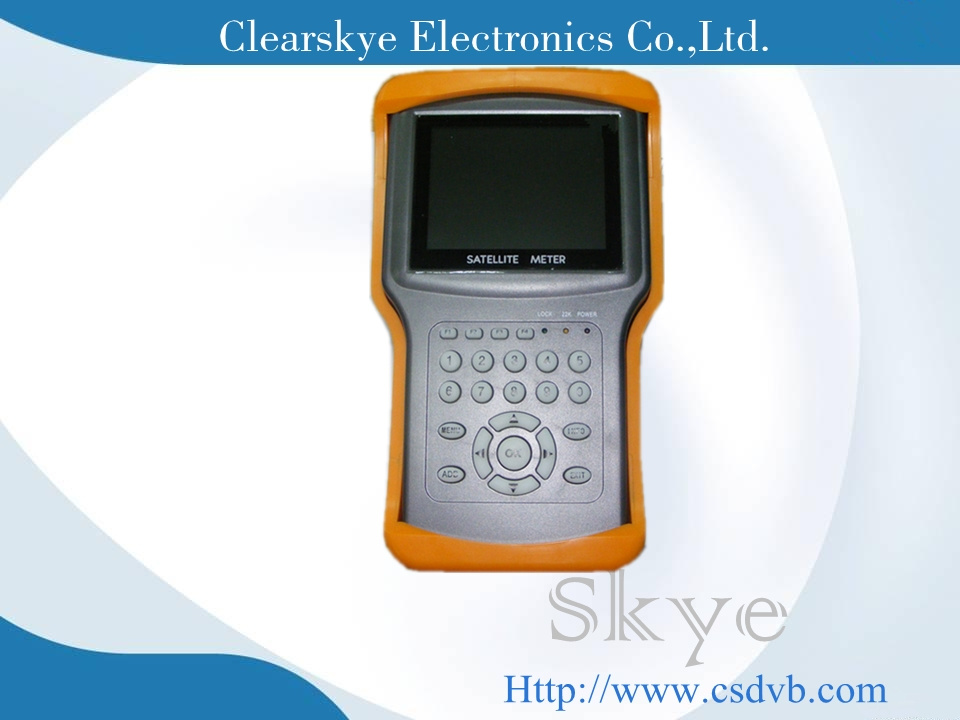

Specification:
1. Input Frequency 950-2150MHz
2. Input Level -65-25dBm
3. Input Impedance 75(ohm)
4. Working temperature: 0° C ~ +50° C
5. Symbol rate range: 2Msps ~ 45Msps
6. 3.5 Inch High definition TFT LCD Screen which Can show live Channels
7. Support AV input
8. Support 12V input and output, can supply power to CAM and DM
9. Built-in speakers, satellite program can be watched outdoor.
10. 22kHz Control
11. Indicator Lights for 13/18 volts
12. COM port for software upgrades
13. Support Chinese and English menu
14. 22kHz switch: Supported
15. DisEqC1.0: Supported
16. USB Port: Standard
Physical features:
1. Size: 250*120*50(mm)
2. Net weight: 0.4kg
3. Gross weight: 1.2kg
4. LNB supply: H' +18V, ≤ 500mA; 'V' +13V, ≤ 500mA
5. DC supply: 12.6V Li-polymer Battery
6. Power adapter input: AC110V/60Hz/220V/50Hz± 10%
7. Power adapter output: DC12.6V-1000mA
