Product Specifications
| Prod Model: |
HPS8302A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Outline:

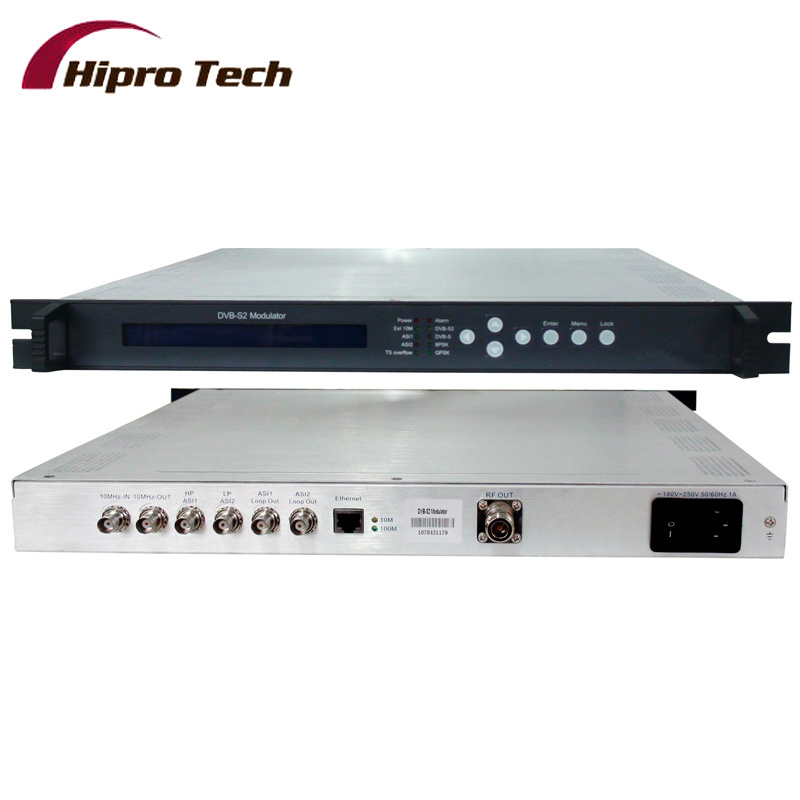

The HIPRO HPS8302A DVB-S2 modulator is a high performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It adopts advanced framing structure, channel coding and modulation technology, increasing over 50% transmission ability more than DVB-S modulator under the same transmission condition and also providing a more powerful receiving ability in the same spectral efficiency. In addition, it is backwards-compatible with DVB-S (EN300421) modulating standard. This DVB-S2 modulator supports local and remote control through NMS software. The HPS8302A DVB-S2 modulator can be used for Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.
Feature:
Fully complying with DVB-S2(EN302307) standard
Backwards-compatible with DVB-S (EN300421) modulating standard
Two ASI inputs supporting hot backup
Supporting local and remote control
Output level attenuation
10MHz outer reference clock input
Output frequency range: 50~200MHz
Full-size front panel LCD display and keyboard
Specification:
|
MPEG-TS Input |
Support the transport stream packet mode and burst mode |
|
Support 188/204Byte transport stream packets |
|
2 Way ASI input, support hot backup input mode |
|
Input Connector Specifications: BNC Block, impedance 75Ω |
|
RF Output |
950-2150MHz continuously adjustable |
|
Level attenuation continuously adjustable (0 ~ 32dB), adjustable stepping 0.5dB |
|
Maximum output level:0dBm |
|
MER≥36dB |
|
Output connector specification: F Block, impedance 50Ω |
|
Modulation and channel coding |
Outside the error-correcting code |
DVB-S |
DVB-S2 |
|
RS code |
BCH code |
|
Inside the error-correcting code |
Convolutional code |
LDPC code |
|
Coding rate |
1/2,2/3,3/4,5/6,7/8 |
1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
|
Modulation constellation |
QPSK |
QPSK,8PSK |
|
Roll-off factor |
0.2,0.25,0.35 |
0.2,0.25,0.35 |
|
Symbol Rate |
1-45MBauds |
1-30MBauds |
|
Working condition |
Size |
44mm×482mm×410mm |
|
Environment |
0~45ºC(operating);-20~80ºC(storage) |
|
Power |
220VAC±10%,50Hz,25W |
|
