Zhejiang TTN Electric Co., Ltd. >> SBW-F-50kVA-2000kVA Three Phase Voltage Regulator/Stabilizer

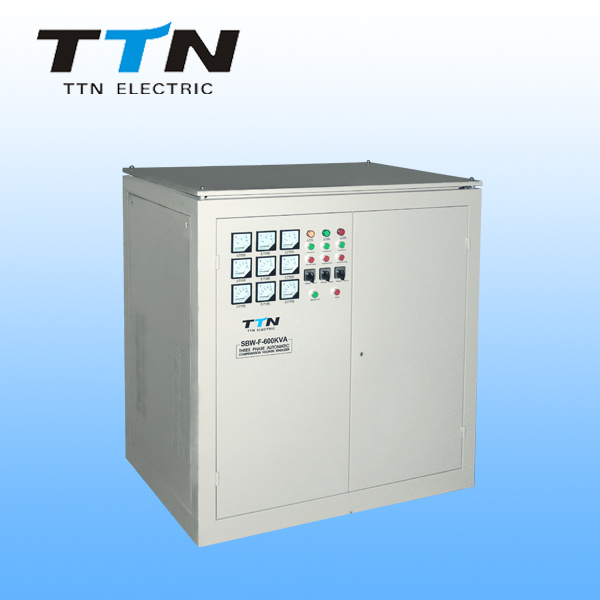

SBW-F-50kVA-2000kVA Three Phase Voltage Regulator/Stabilizer

SBW-F-50kVA-2000kVA Three Phase Voltage Regulator/Stabilizer
Supplier: Zhejiang TTN Electric Co., Ltd.
Price: US $ 1600/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: SBW-F-50KVA-2000KVA servo
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Technology: Servo Motor Control Systerm
Display: Meter
Input Voltage: 304V-456V
Output Voltage: Three Phase 380V(Adjustable)
Current Type: AC
Phase: Three Phase
Frequency: Industrial Frequency
Brand: Ttn
Usage: Servo

Product Description

Servo motor control, independent regulate
High power
Three phase
MODEL SBW-F-50KVA SBW-F-75KVA SBW-F-100KVA SBW-F-150KVA SBW-F-200KVA
SBW-F-250KVA SBW-F-320KVA SBW-F-400KVA SBW-F-500KVA SBW-F-600KVA
SBW-F-800KVA SBW-F-1000KVA SBW-F-1200KVA SBW-F-1500KVA SBW-F-2000KVA
TECHNOLOGY SERVO MOTOR CONTROL SYSTERM




DISPLAY


METER
A/B/C PHASE INPUT VOLTAGE
A/B/C PHASE OUTPUT VOLTAGE
A PHASE OUTPUT CURRENT
B PHASE OUTPUT CURRENT
C PHASE OUTPUT CURRENT
      Light Green A PHASE WORKING INDICATOR
Green B PHASE WORKING INDICATOR
Green C PHASE WORKING INDICATOR
Green INPUT WORKING INDICATOR
Green INPUT WORKING INDICATOR
Language English/Russia/Chinese
I nput Voltage Single phase: 175V-265V
Three phase four-line
175V-265V(phase voltage)300V-465V (line voltage)
154V-286V(phase voltage) 270V-490v(line voltage)
Output Voltage Single phase 220V(Adjustable)                                                                                                                                                                    three phase 380V(adjustable)
Frequency 50Hz/60Hz
Phase Thee   phase
Efficency ≥ 90%
Ambient Temperature -15   -45
Relative humidity < 95%
W aveform distortion N o additional wave from distortion
Insulation resistance Normally more than 2 MΩ
Power 50KVA 75KVA 100KVA 150KVA 200KVA
Packing size(cm) 110*85*137 110*85*137 110*85*137 125*100*196 125*100*196
Packing (pcs) 1 1 1 1 1
G. M(KGS)
Power 250KVA 320KVA 400KVA 500KVA 600KVA
Packing size(cm) 135*100*196 135*100*196
Packing (pcs) 1 1 1 1 1
G. M(KGS)
The Zhejiang TTN Electric Co., Ltd. The Zhejiang Tinglang electrical Appliance Co., Ltd. is a member unit of the China powersource academic society association and it is also a member unit of the China electrical equipment industry association. It is a high new science and technology enterprise. The company grasps " humanist " as the management philosophy and concept. The company positively introduces and nimbly utilizes the domestic as well as foreign advanced managerial experience and the specialized technology. The company contributes to the technical R&D department which has become mature and perfect day by day. The company has fully developed an integritied scientific management mechanism, including the design, the manufacture, the examination, the measurement, etc. The company has got ISO9001: 2, 000 international quality systems authentication. The company in line with the objective of " The quality sets up the market, the prestige strives for the development " and in line with the quality policy of " checks each step, each article goes through a strategic pass, lets the users be satisfied ". The company insists on the comprehensive implementation of " to makes the brand by the science and technology "and persists in the development path of science and technology, the scale, multiplex, and the internationalization.

The company mainly produces the voltage stabilizer, the electronic calendar, UPS, the bath tyrant, the ventilating fan, the electric fan, the heater, the massager, the anoin generator, the mosquito drive aways, the induced door-bell and the juice-making machines and so on. All together there are more than 30 " TTN " " Tinglang " and " Kebei " series and there are more than 200 kinds of specifications products. All products has passed the quality inspection by The People's Insurance Company and some products has passed " the product quality authentication of CQC ", and the partial products has passed " the European Economic Community CE safe authentication ". In recent years The Tinglang is continuously evaluated as " the Chinese well-known brand ", " the Chinese market protection brand ", " on CCTV the announcement brand ", " the Chinese quality stands up to the mostrigorous test the service to feel relieved the prestige brand "

While the Company strictly controls the quality of the products, it also insists on enhancing the quality of the services which has obtained the remarkable results. For this, the company has successively received the honor of Zhejiang Province for " the advanced technical product ", " the superior technical product ", " the quality and serves double superior enterprise ", " the mass metering trustworthy enterprise ", " the quality improves and the fixed-point surveillance to track the enterprise " etc.

" By my sincerity, will receive in exchange for your heart " is the promise to the users from all staff of the company. The company is continuously devoting to improve the customers living quality and is unceasingly to display the unique specialized technical superiority. The company is also devote to make the more valuable high tech products which will truly provide the customers with the perfect brand space.
