Product Specifications
| Prod Model: |
TK-FSC001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Fiber Optic Fast Connector |
| Connector: |
Sc/APC |
| Fiber Cable Type: |
3.0mm Drop Cable,3.0X2.0mm Flat Cable |
| Color: |
Green |
| Mode: |
Singlemode |
| Return Loss: |
≤ -45db |
| Insertion Loss: |
≤ 0.25db(1310nm & 1550nm) |
| Temperature: |
-40~+85°c |
| Application 1: |
FTTH |
| Application 2: |
FTTX |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Ferrule Endface: |
APC |
| Number Of Cores: |
Single-Core |
| Application: |
FTTH,FTTX |
Product Description

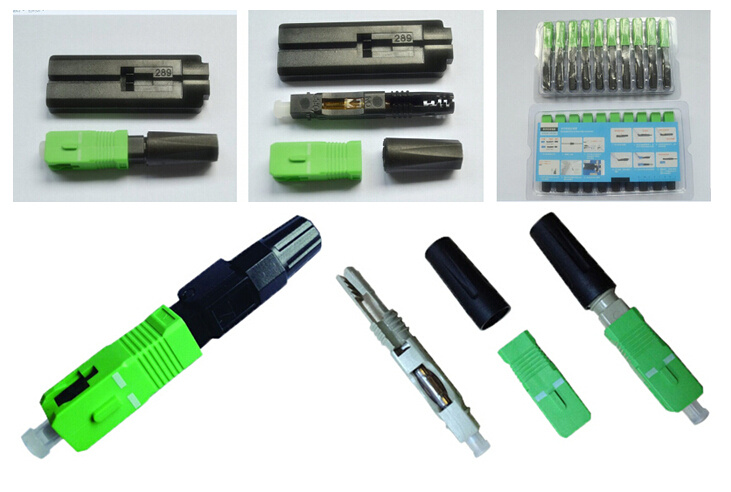

SC/APC Fiber Optic Field Mountable Connector/Fast Connector
Specifications
fast connector
It enable easy and fast fiber termination in the field. It is possible to reconnect, so can be reduced the rate
Description
1. Twin end-face of pre embedded fiber is polised in the factory..
2. Fiber optics is aligned in V-groove through the ceramic ferrule.
3. Side cover design provide complete preservation of the matching liquid.
4. Ceramic ferrule with pre-embedded fiber is polished to APC.
5. Length of the FTTH cable is controllable
6. Simple tooling, easy operation, portable style and reusable design.
7.connector size: 49.5*7*6mm or produced as per client's request.
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≤ -45dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tensile Strength | >5 N |
| Tighten Strength of Coating | >10 N |
| Temperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
