Product Specifications
| Prod Model: |

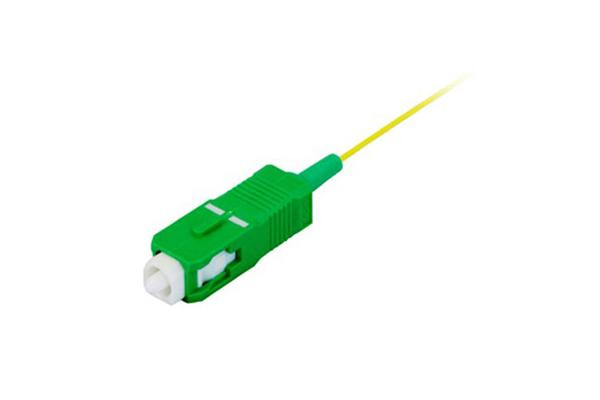

SC/APC connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Type: |
Single Mode |
| Cable Diameter: |
0.9mm/ 2.0mm /3.0mm |
| Insertion Loss: |
<0.3db |
| Operation Temperature: |
-40 to +85c |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Ferrule Endface: |
APC |
| Number Of Cores: |
Single-Core |
Product Description
Application
Fiber optical distribution frame
Fiber optical devices and equipements connect.
Patch cord, Pigtail and Splitters connecoter.
Features
*Low insertion loss and back reflection loss
*Ferrule end surface predomed
*Precision anti-rotation key and corrosion resistant body
*UL-rated plastic housing
*Boots in a variety of colors
*Telcordia style boots
*Free-floating ceramic ferrule
Standards
All components and final producs are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455
Optional Services:
1. The connector can be supplied as a pre-assembled one-piece connector or as connector kit.
2. Clips are available for duplex connectors
3. Housing kits without ferrule are available.
| Singemode(UPC) | Singemode(APC) | Multimode |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.2db typical change, 1000 times mating |
| Operating Temperature | -45 to +85 degree |
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity: ≤1.0um | 125.0+1/-0um, Concertricity: ≤0.5um | 125.0um, Concertricity: ≤3.0um |
| 125.3+1/-0um, Concertricity: ≤1.0um | 125.3+1/-0um, Concertricity: ≤0.5um | 127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity: ≤1.0um | 125.5+1/-0um, Concertricity: ≤0.5um | 128.0um, Concertricity: ≤3.0um |
| 126.0+1/-0um, Concertricity: ≤1.0um | 126.0+1/-0um, Concertricity: ≤0.5um |
|
