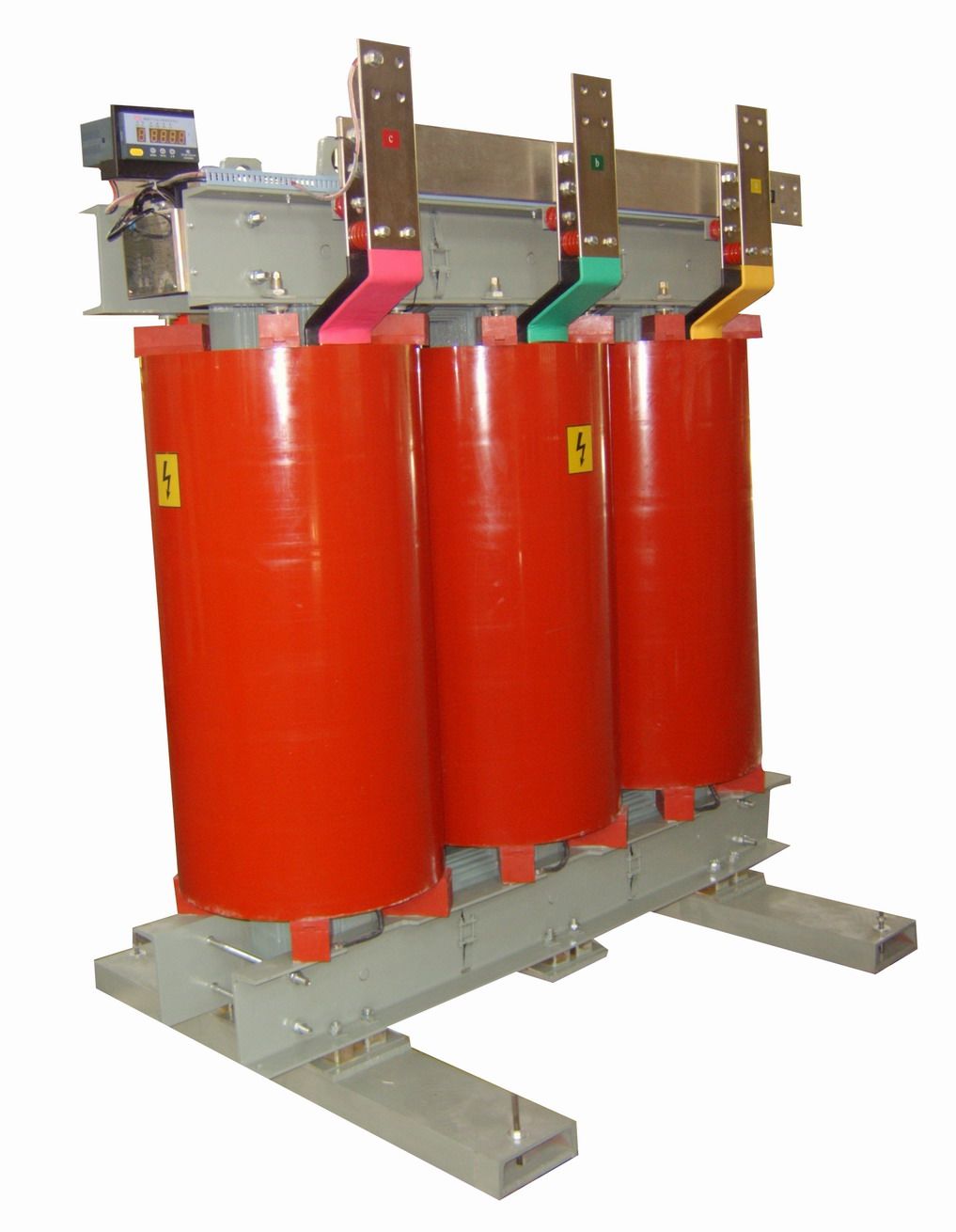

SC(B)10 Series Dry-type Power Transformer

Name: SC(B)10 Series Dry-type Power Transformer
Brand: china-manufacturer-directory.com
SKU: 622502742
Availability: InStock
Rating: 4.8 (118 reviews)

Supplier:	Jiangsu Xuemei Refrigeration Equipment Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Product Description

SC (B) 10 Series Products (with thin resin materials filled) brief descriptions:
SC (B) 10 Series dry-type transformer products of Jinghai Transformer Co., Ltd is a new generation of dry-type transformer with techniques from Germany. The casting process is in a highly vacuumed environment, with fully computer controlled airflow circulation. And high-pressure pervasion (3 to 5.5 kg/cm2).
The whole set of system software is from Germany, including design, material, production arts and crafts, mould structure, and resin formula etc. In order to provide more efficient & better quality service to the clients, the company also have done some improvements on the original techniques.
Product Features:
1. Excellent Mechanical Strength
2. Better Overload performance
3. Consideration of Environmentalism
4. Low energy loss
5. Fantastic anti-moistening property:
6. Economical Solution
7. Reliability.

Type	Rated Capacity(KVA)	Connection Group	Rated voltage(KVA)		No-load Loss(W)	Load Loss(W)	No-load Current(%)	impedance (KVA)	noise (dB)	weight(kg)
Type	Rated Capacity(KVA)	Connection Group	high voltage (kV)	Low Voltage(kV)	No-load Loss(W)	Load Loss(W)	No-load Current(%)	impedance (KVA)	noise (dB)	weight(kg)
SC10	30	Yyn0 or Dyn11	11 10.5 10 6.6 6.3 6	0.4	190	700	1.8	4	40	400
	50				270	990	1.8		40	440
	80				360	1370	1.8		40	565
	100				400	1550	1.8		41	870
	125				470	1840	1.2		43	950
	160				540	2120	1.2		45	1080
	200				620	2520	1.2		45	1230
	250				720	2750	0.8		46	1410
	315				880	3460	0.8		47	1615
SCB10	400				970	3980	0.8		47	2100
	500				1160	4870	0.8		47	2350
	630				1340	5870	0.8		47	2480
	630				1300	5950	0.8		47	2426
	800				1520	6950	0.5	6	47	2860
	1000				1760	8120	0.5		47	3320
	1250				2080	9690	0.5		50	3850
	1600				2450	11730	0.5		50	4520
	2000				3300	14450	0.5		50	5290
	2500				4000	17200	0.5		50	6135

SC(B)10 Series Dry-type Power Transformer

Type	without shell dimension(mm)				with shell dimension(mm)
Type	long	wide	weight	A×B	long	wide	weight
SCB10-2500	1800	1300	2000	1070×1220	2100	1600	2350
SCB10-2000	1700	1300	2000	1070×1220	2060	1600	2250
SCB10-1600	1650	1280	1900	1070×1200	2040	1600	2150
SCB10-1250	1600	1200	1600	1070×1120	2020	1500	2000
SCB10-1000	1600	1200	1400	1070×1120	1990	1500	1900
SCB10-800	1560	1100	1400	1070×1020	1950	1500	1750
SCB10-630	1460	1050	1400	820×1050	1880	1400	1650
SCB10-500	1400	1050	1400	820×1000	1840	1400	1650
SCB10-400	1350	1000	1350	550×950	1780	1300	1600
SC10-315	1250	850	1300	550×800	1620	1300	1500
SC10-250	1250	850	1200	550×800	1580	1200	1450
SC10-200	1200	850	1150	550×800	1540	1200	1450
SC10-160	1200	710	1150	550×660	1500	1200	1450
SC10-125	1180	710	1000	550×660	1460	1100	1400
SC10-100	1120	710	1000	550×660	1400	1100	1400
SC10-80	1050	600	950	550×550	1400	1000	1200
SC10-50	1020	600	900	550×550	1400	1000	1200
SC10-30	980	600	850	550×550	1400	1000	1200
