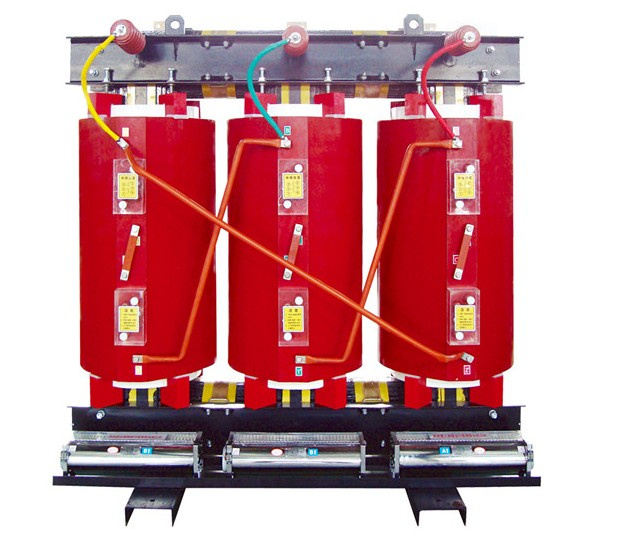

(SC(B) 11) Dry-Type Power Transformer

Name: (SC(B) 11) Dry-Type Power Transformer
Brand: china-manufacturer-directory.com
SKU: 726483975
Availability: InStock
Rating: 4.3 (20 reviews)

Supplier:	Jiangsu Harmonious Eternity International Trade Co., Ltd.
Price:	US $ 10000-30000/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SC(B) 11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Sc(B) 11
Product:	Dry-Type Power Transformer
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Application:	Audio

Product Description

Tech data of 10kv,11KV SC(B)11,SC(B)13 series resin insulation dry-type power transformer 1. Standards: GB1094-1996; JB/T10088-2004; GB/T10228-2008; EQV IEC726 2. Voltage Grade: 6,10, 11kV 3. Voltage Regukation Mode: Off circuit tap changing; On load tap changing 4. tapping Range: ±5%, ±2×2.5%, ±4×2.5% or others 5. Frequency: 50Hz; 60Hz 6. Phase: Three phase 7. Connection Sign: Yyn0, Dyn11 or others 8. Short Circuit Impedance: Standard impedance (For details see technical data sheet) 9. Max. Temperature: 120K 10. Cooling Method: ONAN or ONAF 11. Insulation Class: Grade F Features: High voltage coils are wrapped with Polyester enameled wires, filled with glass fiber, and then resin under vacuum condition. It becomes solid under high temperature. It equipped with high mechanical intensity, low discharge partly; Low voltage coils are wrapped with a whole piece of copper foil, with strong anti-shortcut capacity. The core is made of silicon steel. By reasonable choosing magnetic density, decrease the empty loading loss effectively Fire protection, anti-explosion, and no pollution Coil is free from humidity, low noise and well characteristic of heating dispersion Low loss, energy saving, free from maintenance, small size, light, and easy for installation

Rated capacity (kVA)	voltage group		connection method	dissipation(kW)		no-load current (%)	impedance voltage (%)	insulating level	weight(kG)
Rated capacity (kVA)	high-voltage	low-voltage	connection method	no-load	load(120 °C )	no-load current (%)	impedance voltage (%)	insulating level	weight(kG)
10	11 10.5 10 6.6 6.3 6	0.4	Dyn11 or Yyn0	0.15	0.325	7.2	4	F/F	130
30				0.215	0.75	3.2			260
50				0.305	1.055	2.8			315
80				0.415	1.46	2.6			470
100				0.45	1.665	2.4			520
125				5.3	1.955	2.2			585
160				0.61	2.25	2.2			670
200				0.7	2.675	2			790
250				0.81	2.915	2			920
315				0.99	3.67	1.8			1085
400				1.1	4.22	1.8			1320
500				1.305	5.165	1.8			1520
630				1.46	6.31	1.6	6		1820
800				1.71	7.36	1.6			2105
1000				1.99	8.6	1.4			2550
1250				2.35	10.26	1.4			2900
1600				2.755	12.42	1.4			3490
2000				3.735	15.3	1.2			4220
2500				4.5	19.53	1.2			4955

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
