Product Specifications
| Prod Model: |
fiber optic patch cord -002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Sc-LC |
Product Description

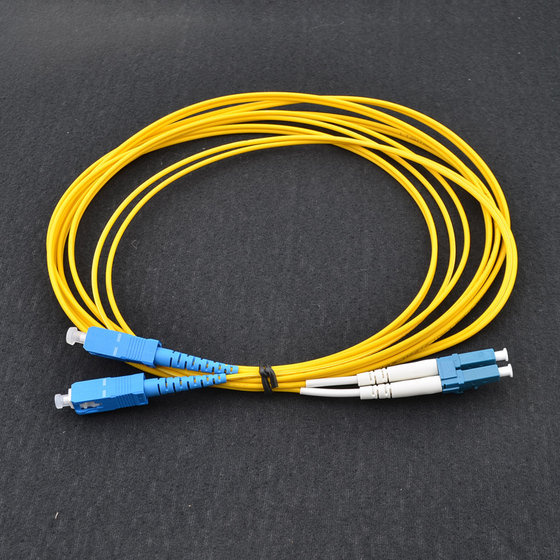

SC-LC Fiber Optic Patch Cord G652D SM/MM Simplex/Duplex
Application
1.Telecommunication
2.Computer Networks
3.CATV networks
4.Active device termination
Features
1.Low insertion loss, high return loss.
2.Fully compliant with standards of IEC and YD-T826/1996.
3.Temperature stability: Operating temperature:-20 to +75°c.
4.High durability,more than 500 times mating.
5.individual package with detail information label.
6.All patch cords are 100% tested.
Ordering information
1.Connector 1.LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.Connector 2.LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type:UPC,APC
3.Fiber type;singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fober dimeter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Fiber length:Customized length
Specification
Parameter | Single mode | Multimode |
| Insertion Loss | ≤0.3db | ≤0.2db |
| Return Loss | ≥50db(PC) ≥65db(APC) | ≥40db |
| Repeatability | ≤0.1 |
| Durability | ≤0.2db typical change,1000 matings |
|
| Interchangeability | ≤0.3db |
| Tensile strength | >10kg |
