Product Specifications
| Prod Model: |
SCB 10 30~2500kva/10KV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dry Type Of Cast Resin: |
Power Transformer |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Application: |
Rectifier |
Product Description
Product Description

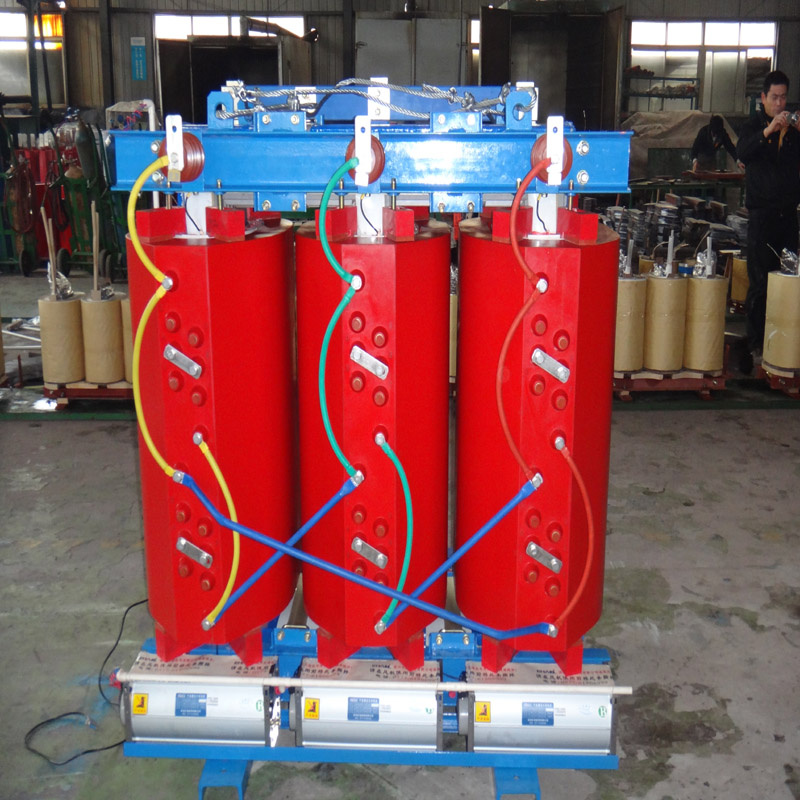

SCB10 series 10kv dry type transformer？
Product Description？
1. Structural features？
A. Iron core？
Made up of high quality cold rolled silicon steel sheet that is for electric engineering？
B. Low voltage winding？
Made up of a whole copper coil？
C. High voltage winding？
Made up of sectional type vacuum casting double glass-fiber vovered coils？
D. Low voltage terminal？
E. High voltage terminal？
Variable wiring mode, which is convenient for installation？
F. Resilient pad？
Avoid mechanical resonance, and reduce noise？
G. Clamp and trolley？
The wheel of trolley can rotates to 90 it is convenient for vertical and horizontal movement？
H. Packing type resin insulation？
With advantages of damp proof anti-damp and hot flame-retardant and self-extinguish.？
2. Performance standard？
Dry type transformer of "9 "and" 10" character types that accord weth standards like GB6450, IEC726 DIN42523 and GB/T10228-1997？
3. Product characteristic？
The epoxy resin cast dry type transformer of our company is made with advanced technology, it includues the following characteristics？
A. Low local discharge？
B. Strong capability of lightning impact？
C. Good performance of anti-drying crack？
D. Strong over-load capability？
E. Good flame retardancy？
F. Low noise？
G. Low comsumption？
4. Technical parameter
Jiangsu Shenghui Electrical equipment Co., Ltd. is a professional manufacturer of transformer. The company has a modern standard factory building, the factory covers an area of more than 20000 square meters, construction area of nearly 10000 square meters. Specializing in the production form 6KV to 35KV of the following all kinds of oil-immersed transformers, and the seal low loss power transformer, resin insulation dry type transformer.
