Scb9, Scb10, Scb11 Series Resin Insulation Dry Type Power Transformer

Product Specifications

Product Description

Model

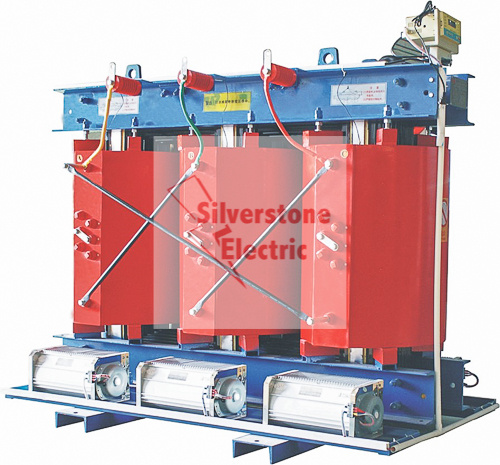

SCB9, SCB10, SCB11 Series Resin Insulation Dry Type Power Transformer

High short-circuit resistant ability

Low loss

Low partial discharge

Low noise

High mechanical strength

Easy installation

Maintenance free

30 Years in Electrics Equipment OEM Manufacturing

Standards

GB1094,GB/T6451,GB/T11022,GB7251,GB/T14028,GB/T17467

Working Conditions

Ambient temperature:

Maximum: +40 centigrade degrees

Minimum: -25 centigrade degrees

Maximum average monthly temperature: +30 centigrade degrees

Relatively humidity: at 25 centigrade degrees

Daily average RH: not more than 95%

Monthly average RH: not more than 90%.

Altitude: ≤1000m

Shockproof:

≤3m/s2 horizontally

≤1.5m/s2 vertically

Installation Environment:

No obvious dirtiness, no explosive and corrosive gas or powder. The installation site should have good air ventilation and no furious vibration and shocking forces.

Our Transformer Product Range
S10 S11 S13 oil type transformer:50-31500KVA,6-33KV,50/60HZ,off load tape changer

SZ10 SZ11 oil type transformer:50-31500KVA, 6-33KV,50/60HZ, on load tape changer

SCB9,SCB11 dry type transformer: F grade insulation, 50-3150KVA,6-33KV, 50/60HZ

SCBH15 11KV amorphous alloy dry type transformer:F grade insulation

SGB10 SGB11 11KV dry type transformer:H grade insulation

SBH15 Oil type amorphous alloy transformer 11KV Level

S13-M 1full sealed oil immersed power transformer

Dry type reactor

S(B)H15-16 Amorphous Transformer

BKSC(G)Dry-type shunt reactor

QKSC Dry Startup reactor

Smoothing reactors

KD-LK-type low-pressure filter reactor

Cast resin dry type earthing transformer

Dry type rectifier transformer

Rectifier transformer

Furnace transformer

Note: we can design and manufacture special transformer as customers' requirements.

Ordering Instruction: 1.product model; 2.rated capacity; 3.voltage range; 4.regulation range; 5.frequency; 6.connection symbol; 7. Technical specs for customized transformer.

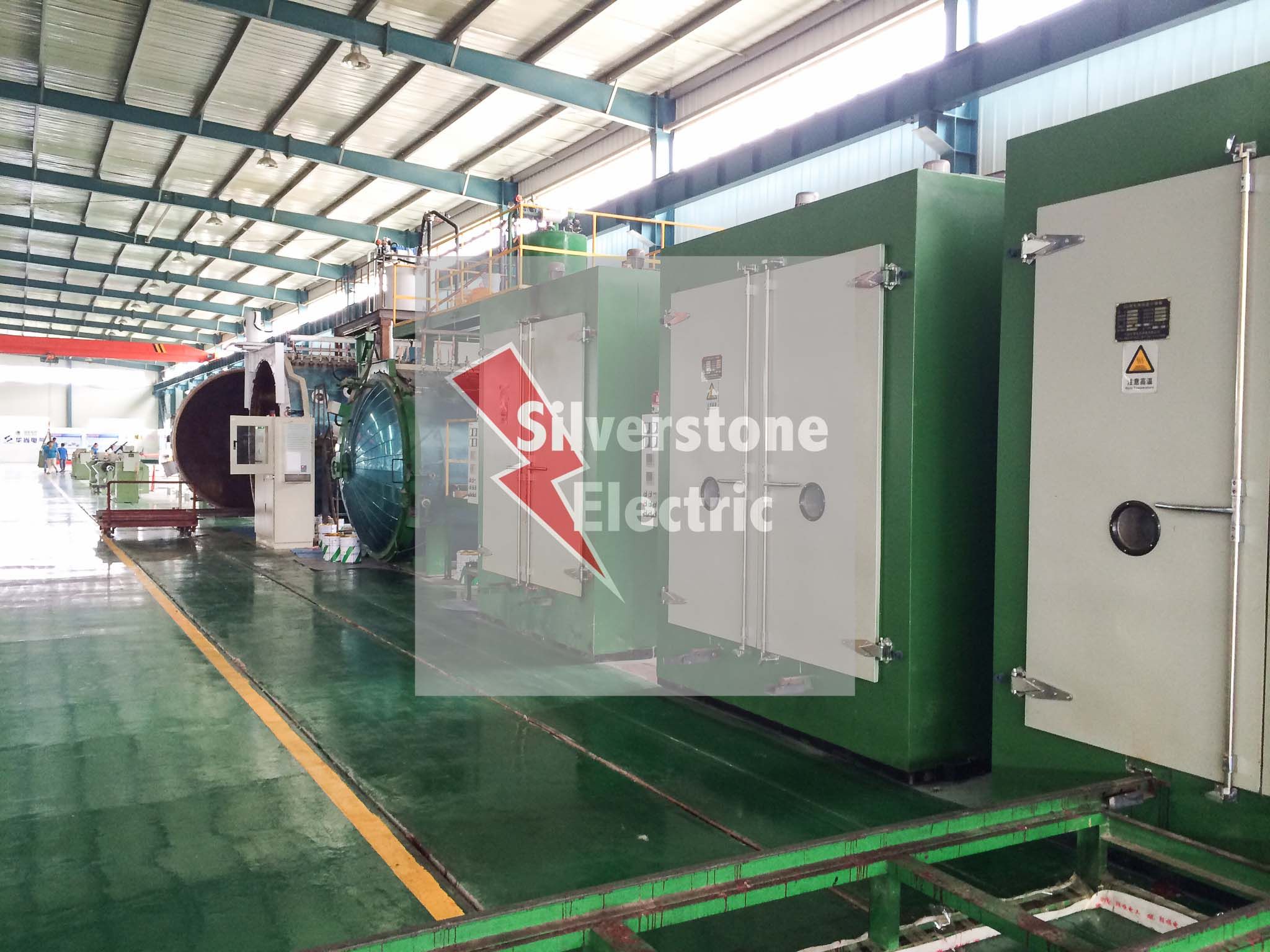

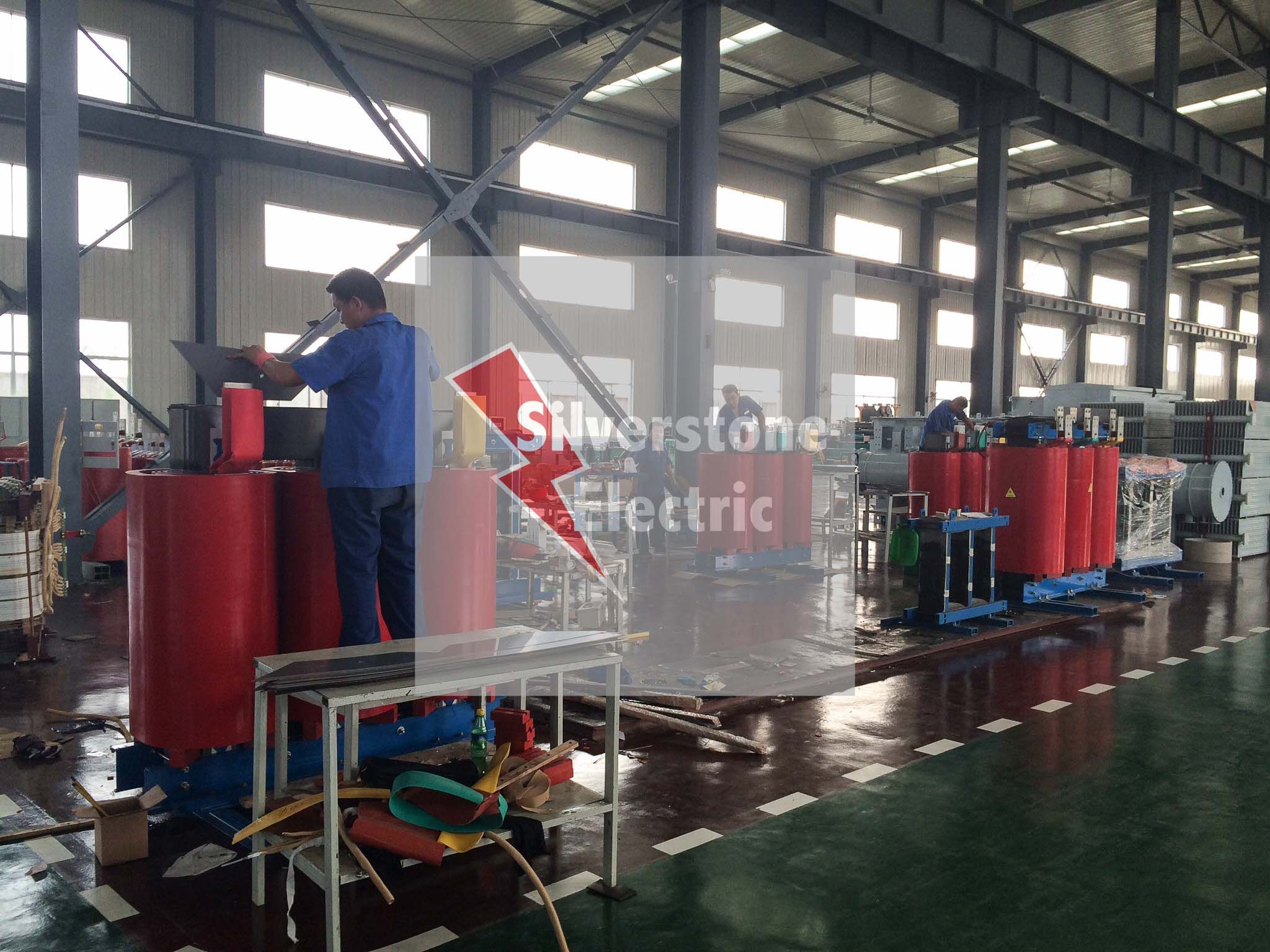

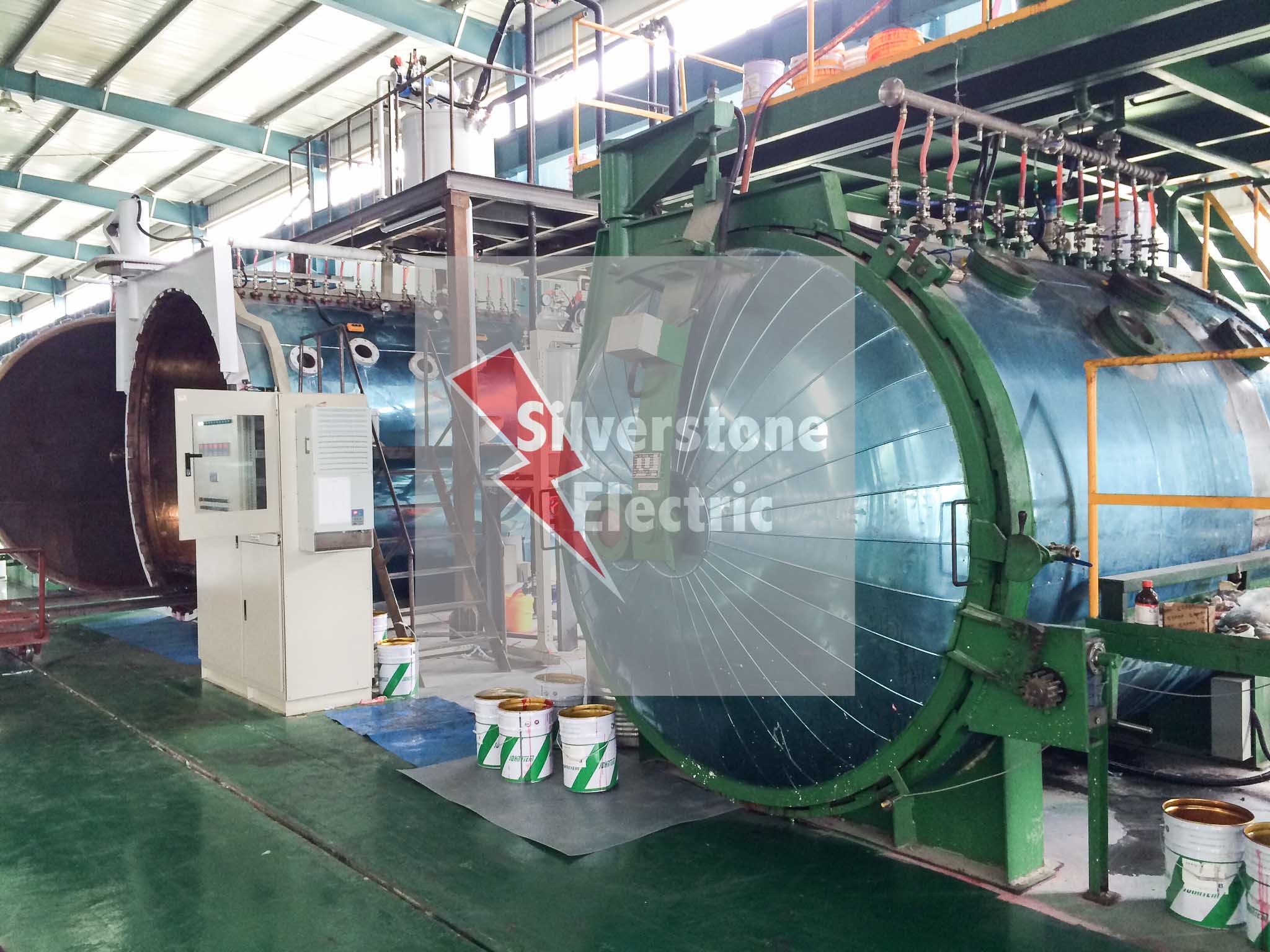

Workshop
