Product Specifications
| Prod Model: |
SCD52-V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diammeter: |
51.3mm |
| Kind: |
Rotating Coil |
| Application: |
Electronic Equipment |
| Display: |
Indicator |
| Installation: |
Direct Connected |
| Theory: |
Electronic Meter |
| Power Source: |
AC and DC |
| Display Ammeter Type: |
Single Pahse |
Product Description

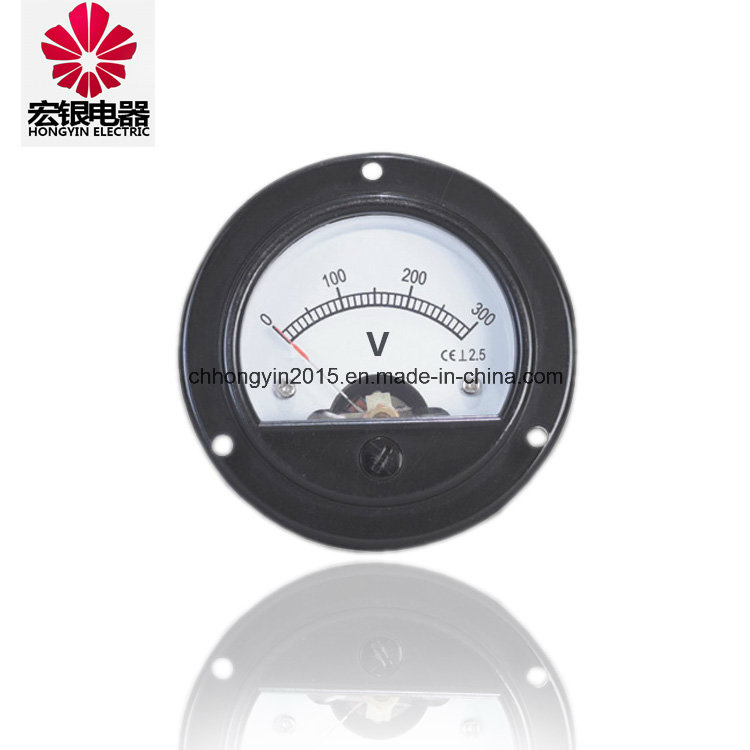

SCD52-V class round analog panel voltage meters
1-
SCD52,99T1 Main Structure and working Principle
SCD52 series meters are composed by measuring mechanism and indicating device. The supporting part is composed of jewelled bearing and pivot. The moving part is composed of magnetic system, moving coil and pointer. This series meters are magneto-electric structure.It is with bake lite casing,printing dial and transparent glass windows.
99T1 series square meters with electromagnetic system and repellency structure. The instrument is constituted by measuring mechanism and indicating device . It is with fire-retardant ABS engineering plastic casing, safe measuring teminals and efficient connection. And it use printing dial and transparent glass cover.
2-Main technial paremeters:
| Product Name | Specification | Measuring Range | Accurancy |
| DC ammeter | SCD52-A | 50uA -20A (INPUT DIRECTLY 20A~10kA */60mV/75mV (EXTERNAL DEVICE) | Class 2.5 |
| AC ammeter | SCD52-A | 500mA~50A (INPUT DIRECTLY) 5A~10kA*/5A (EXTERNAL DEVICE ) | Class2.5 |
| DC voltmeter | SCD52-V | 5V-750V(INPUT DIRECTLY) 450V-450kV*/1mA*/5mA (EXTERNAL DEVICE) | Class2.5 |
| AC voltmeter | SCD52-V | 15V-600V (INPUT DIRECTLY) 380V-450kV*100V(EXTERNAL DEVICE) | Class 2.5 |
| Product name | Specification | Measuring range | accurancy |
| AC ammeter | 99T1-A | 500mA~50A (INPUT DIRECTLY) 5A~10kA*/5A (EXTERNAL DEVICE ) | CLASS 2..5 |
| AC voltmeter | 99T1-V | 15V-600V (INPUT DIRECTLY) 380V-450kV*100V(EXTERNAL DEVICE) | CLASS2.5 |
3-FAQ
Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. HongYin people always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gotten through CE, RoHs standard
Yueqing Hongyin Electric Co., Ltd is a professional large-scale manufacturer of all types of Electronic Products, Integrates development and manufacturing in -house. The main products of our compnay are the meters, power supply, circuit breakers, industrial Plug and Socket, cable ties, surge protection device, hose power inverter and so on. Our company was established in 2000, and we have many years of history in the electronic products. Located In Yueqing, Wenzhou, near Ningbo, we enjoy convenient water, land and air transportation.
Yueqing Hongyin Electric Co., Ltd introduced advanced technology, imported advanced equipment and employs experienced technical and management personnel. Currently, our products have already exported to America, France, Australia, Italy and 20 other countries and regions.
Yueqing Hongyin Electric Co., Ltd has always focused on research, development and innovation, In 2010-2013 years. We attained CE, RoHS, UL certification.
Our company supplies different kinds of products. High quality and favorable price. We' re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
