Function:
Real time measurement and indication on AC and DC voltage(current) in an electric circuit: Programmable CT/PT ratio: Higher and lower limit alarm output and programmable rely time of alarm.

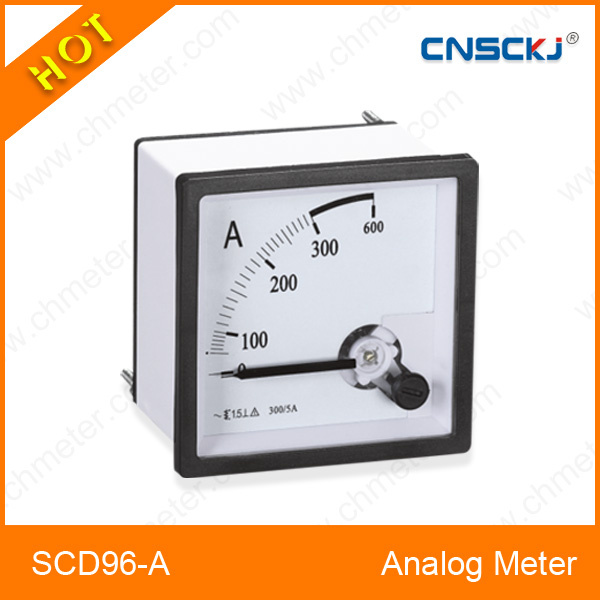

1. The SCD 48, SCD 72, SCD 96 series square instruments are with electromagnetic system and repellency structur. The instrucment is constituted by measuring mechanism and indicating device. The casting is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.
2. SCD72, SCD96 series DC ammeter, voltmeter, frequency meter, active/reactive power meter, power factor meter are rectifier square meters, they are composed of the two parts magneto-electric measuring mechanism.
|
Product name |
specification |
measuring range |
accurancy |
|
DC ammeter |
SCD96-A |
50uA-20A (input directly) |
1.5 |
|
|
SCD72-A |
20A-10kA*/60mV/75mV |
1.5 |
|
|
SCD48-A |
(EXTERNAL DEVICE ) |
2.5 |
|
DC voltmeter |
SCD96-V |
5V-750V (input directly) |
1.5 |
|
|
SCD72-V |
450V-450kV*/1mA*/5mA (EXTERNAL DEVICE ) |
1.5 |
|
|
SCD48-V |
|
2.5 |
|
ACammeter |
SCD96-A |
500mA-100A (input directly) |
less than 30A 1.5 |
|
|
SCD72-A |
5A-10kA*/5a (EXTERNAL DEVICE ) |
30A andmore 2.5 |
|
|
SCD48-A |
500mA-30A (input directly) |
2.5 |
|
AC voltmeter |
SCD96-V |
15V-600V |
1.5 |
|
|
SCD72-V |
380V-450kV*/100v |
1.5 |
|
|
SCD48-V |
|
2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Wenzhou CNSCKJ Meter Technology Co., Ltd. Specialized in manufacturing various digital display meter, which is member enterprise of the National Electrician instrument& Meter Standardization Committee. The products manufactured by our company strictly complied with IEC 51 publication rev4 issued by international electrician Committee and IEC1010 Standard, and meet the National Standard Requirement GB/T7676-1998. CNSCKJ company have passed through ISO9001: 2000 Certificate and CE Certificate.
(1) We are one of organizations chiefly editing the national standard, Mounted Digital Display Electric Measuring Instrument:
(2)We are involved in the edition of national standards, low-voltage Reactive Power Compensation Switching Device and General Specification for Digital Motor Combined Protection Equipment;
(3)We participate in the revision work of industrial standard, low -voltagea Reactive Power Compensation Control Device
(4) We play an essential role in editing the national standard diagram collections for electrical design, commonly-used Pump Control Circuit Diagram and Commonly-USD Blower Control Circuit Diagram, and the reference diagram collections for eletrical design, Fire-fighting Equipment Power Supply Monitoring System.
Under holding up the enterprise tenet: Survive on quality, Create brand with the credit, CNSCKJ sincerely wish friends at home and abroad to cooperate with for brilliant tomorrow!
