Product Specifications
Prod Model: |
SCD96-HZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
96*96 |
Kind: |
Rotating Coil |
Application: |
Electronic Equipment |
Display: |
Indicator |
Installation: |
Direct Connected |
Theory: |
Electronic Meter |
Power Source: |
AC and DC |
Product Description

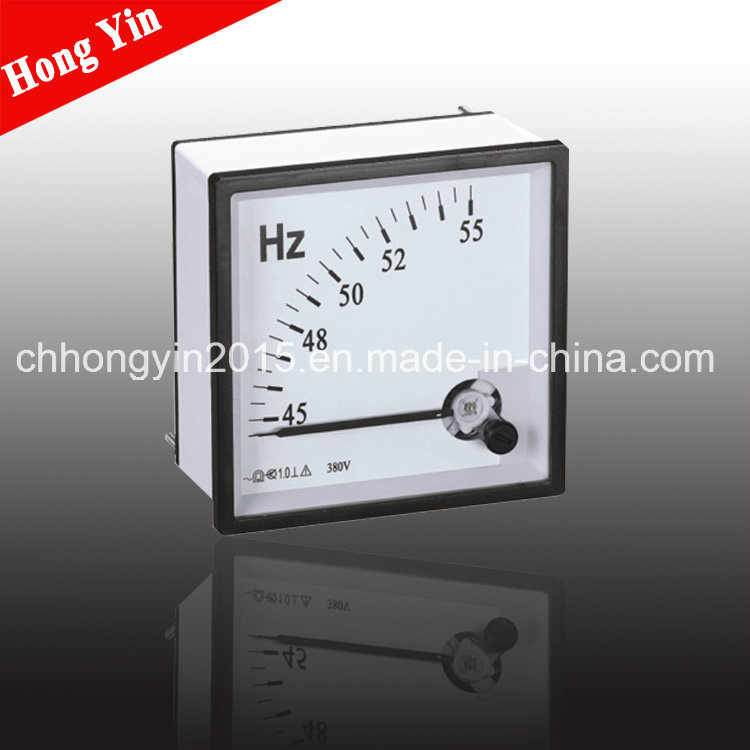

Scd96-Hz Frequency Analog Mouted Meter/Frequency Panel Meter/
1-Function:
1.1 The SCD48, SCD72, SCD96 series square instruments are with electromagnetic system and repellency structure. The instrument is constituted by measuring mechanism and indicating device. The casing is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.
1.2 SCD72, SCD96 Series DC ammeter, voltmeter, frequency meter, active/reactive power meter, power factor meter are rectifier square meters. They are composed of the two parts magneto-electric mechanism. The casing is made of fire-retardant ABS engineering plastics, safe measuring terminals and efficient connection. And it use printing dial and transparent glass cover.
2-Specification:
Product name | specification | measuring range | accurancy |
DC ammeter | SCD96-A | 50uA-20A (input directly) | 1.5 |
| SCD72-A | 20A-10kA*/60mV/75mV | 1.5 |
| SCD48-A | (EXTERNAL DEVICE ) | 2.5 |
DC voltmeter | SCD96-V | 5V-750V (input directly) | 1.5 |
| SCD72-V | 450V-450kV*/1mA*/5mA (EXTERNAL DEVICE ) | 1.5 |
| SCD48-V | | 2.5 |
ACammeter | SCD96-A | 500mA-100A (input directly) | less than 30A 1.5 |
| SCD72-A | 5A-10kA*/5a (EXTERNAL DEVICE ) | 30A andmore 2.5 |
| SCD48-A | 500mA-30A (input directly) | 2.5 |
AC voltmeter | SCD96-V | 15V-600V | 1.5 |
| SCD72-V | 380V-450kV*/100v | 1.5 |
| SCD48-V | | 2.5 |
Frequency meter | SCD96-Hz | 45-55hz,45-65hz,55-65hz | 1.0 |
| SCD72-Hz | rated voltage:100V,220V,380V | 1.0 |
Active/reactive power meter | SCD72-W/var | 100V,220V,380-380kV/100V | 2.5 |
| SCD96-W/var | 5A,5A-10kA /5A(EXTERNAL DEVICE) | 2.5 |
3-phase power factor | SCD72-COS | 0.5C-1-1.5L | |
meter | SCD96-COS | 100V 5A,380V 5A |
