Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
DIP(',Dual In-line Package) |
| Application: |
Electronic |
| Model: |
Mbr20100 |
Product Description

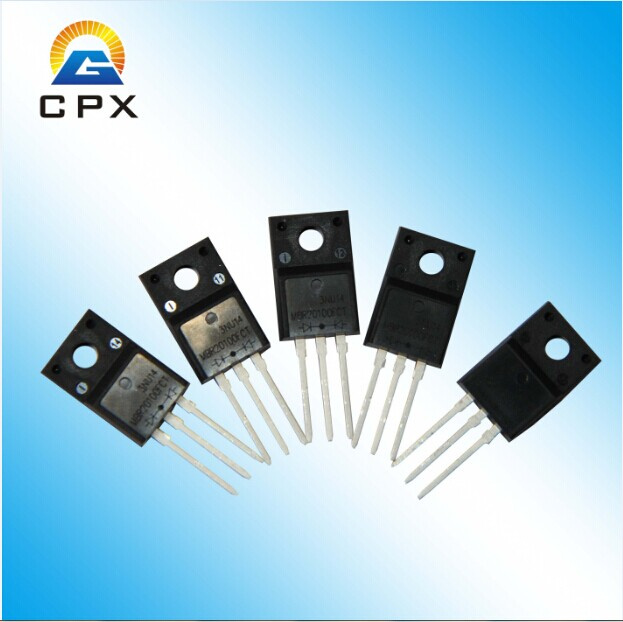

Key Specifications/Special Features of MBR20100:
Features:
Metal of siliconrectifier, majonty carrier conducton.
Guard ring for transient protection.
Low power loss high efficiency.
High surge capacity, High current capability.
Mechanical data:
Case: JEDEC TO-220AC molded plastic.
Polarity: Color band denotes cathode.
Mounting position: Any.
Primary Competitive Advantages:
Experienced Staff & Green Products
Military Specifications
Guarantee/Warranty
International Approvals
Product Features & Performance
Prompt Delivery & Quality Approvals
Service & Packaging
Small Orders Accepted
Why choose Trumping:
Manufacturer
With rich experience of producing diodes
We accept a minimum order of just 5, 000 units
We can supply free samples
Best service: With 10 years experience in exporting sales staff will service you
Good quality: Helps you to prevent purchasing risk
Short delivery: Helps you to save time
Competitive price: The price is not the lowest but the highest cost performance
Shipping:
We will ship the items within 3 working days after the payment is reached.
We can ship to you by UPS/DHL/TNT/EMS/FedEx.
We have no any responsibility for the accidents, delays or other issues which of the shipping service.
Any import fees or charges are the buyer's responsibility.
Warranty:
If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition).
We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
One we get the returned items, we will send the replaced ones back as soon as possible.
Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts.
Contact Us:
If any other questions please feel free to contact us in any time
Tel: 86-755- 26623385
Mobile: 86-18664336272
|
Type Number |
SYMBOL |
MBR20100 |
units |
|
Maximum Recurrent Peak Reverse Voltage |
V RRM |
100 |
V |
|
Maximum RMS Voltage |
V RMS |
70 |
V |
|
Maximum DC blocking Voltage |
V DC |
100 |
V |
|
Maximum average forward rectified current |
IF(AV) |
20.0 |
A |
|
Peak forward surge current 8.3ms single half-sine-wave |
I FSM |
150 |
A |
|
Maximum instantaneous forward voltage at IFM=1.0A (NOTE1) |
VF |
0.84 |
V |
