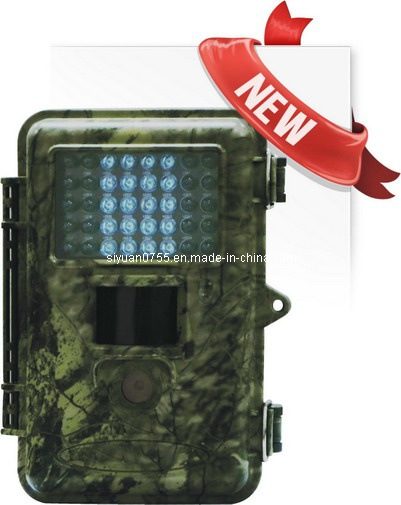

Scoutguard Scouting /Trail /Hunting Camera (1.5' LCD) (DTC-550V)
Product Specifications
| Prod Model: |
DTC-550V |
| Image Sensor: |
CMOS |
| Memory Card Type: |
SD Card |
| Megapixel: |
5.0-9.9MP |
| Screen Size: |
<2" |
Product Description
5.0MP ultra compact digital scouting camera
IR-LED for night time operation
24high-density LED lights ranging 12 meters
Motorized ICR (IR-Cut-Remove) for color photos/ videos during day.
Attaches with adjustable strap (included) or with the bottom screw.
Battery/SD cover can be locked for security
3 levels of adjustment for PIR sensitivity
Weather-proof for outdoor use (IP45)
Enhanced night IR 65 degrees of light front Open for easy access
Easy operation using the remote control interface(wired)
Type
|
DTC-550V
|
Image Sensor
|
5Mega Pixels Color CMOS
|
Maximum Pixel Size
|
2560x1920
|
Lens
|
F=3.1; FOV=40; Auto IR-Cut-Remove (at night)
|
IR-Flash
|
24 high-density LED ranging 12 meters
|
Power
|
4 or 8 AA ‘ s or 6V outer DC power
|
Weather-proof
|
Weather-proof for outdoor use (IP45)
|
Display Screen
|
25x 35mm (1.7" )
|
Memory
|
SD-card from 8MB to 2GB
|
Picture Size
|
5MP = 2560x1920; 3MP = 2048x1536
|
Video Size
|
640x480: 16fps; 320x240: 20fps
|
PIR sensitivity
|
PIR with 3 sensitivity level: High/Normal/Low
|
Operation
|
Day/night
|
Response Time
|
1s
|
Triggering Interval
|
0sec. - 60min. programmable
|
Shooting Numbers
|
1~3 programmable
|
Video Length
|
1-60sec. programmable
|
Timer Switch
|
On /Off Time L apse programmable
|
Power Supply
|
8xAA recommended, 4xAA as emergency power
|
Stand-by Current
|
< 0.3mA(< 7mAh/day )
|
Power Consumption
|
150mA (+450mA when IR-LED lighted)
|
User Interface
|
Wired remote control with LCD display and Keyboard
|
Interface
|
TV out (NTSC); USB; SD card holder; 6V DC external
|
Fixation Art
|
Belt; Cable lock up to Φ 10mm; Nail up to Φ 5mm
|
Operation Temperature
|
-20 - 60C (Storage temperature: -30 - 70C )
|
Operation Humidity
|
5% - 90%
|
Security authentication
|
FCC/CE/ROHS
|
Shenzhen Siyuan digital Technology Co., Ltd established in 2005, a branch of SiYuan international investment group (HK) Ltd. Our factory cover more than 30, 000 square meters, over 300 employees. Specialized in ODM and OEM.
We are mainly engaged in the design, manufacturer and export all kinds of digital trial/scouting/hunting cameras, Security lighting cameras, mini DVR, helmet/action/sport cameras, digital camcorder etc. And acquired 41 patents in these consumer electronic products. They have been exported to various countries and regions with main markets in Europe, America, Middle East, South Africa Southeast Asia, and so on. Our own brand: SuperScouter, Coolboy, Digicool&, has developed into the leading brand in China.
As a professional manufacturer we always place much attention on quality control. In order to provide customers with the best products, we have implemented ISO 9001 in production and manufacturing systems, which are conducted in accordance with international standards. We have received many certifications as FCC/CE /RoHS approval thereby providing a further guarantee of our reliability. We always focused on provide customers with high quality products, competitive price and comprehensive service. Please feel free to contact us for details if you are interested in any of our series.
Shenzhen siyuan digital technology Co., Ltd, Shenzhen Vigorway Technology Co., Ltd, Guangdong Leetch Industry Co., Ltd, Shenzhen uniwin electronics technology Co., Ltd., Microboe Electronic Co. Ltd& Shenzhen siyuan Pet product Co., Ltd., are all held by SiYuan international investment group (HK) Ltd
For the hunting camera SG-370VSG-570VV, is our factory patent model. Patents NO: 201130297213.2
For the hunting camera DTC-530, DTC-530V, is our factory patent model. Patents NO: ZL200930165343.3,
For the hunting camera DTC-550, DTC-550V, is our factory patent model. Patents NO: ZL200930165342.9,
For the hunting camera KG-680/680V, is our factory patent model. Patents NO: 201030102759.3
For the hunting camera SG660V, SG-660M, is our factory patent model, patents NO: ZL200920131285.7, 201030201364.9, 201060504272.8
For the hunting camera Model# SG-550M, SG-880MK is our patent product, patent no is 201030583010.5,
For the hunting camera Model#DTC-565V, is our patent product, patent no: 201130152313.6
For the hunting camera Model#MG-582M, MG-882MK, is our patent product, patent no: 201230100045.8
For the hunting camera Model#SG-560P, SG-560K, is our patent product, patent no: 201230100450. X
