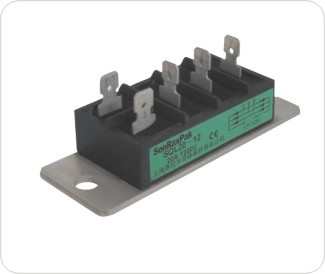

SCR Module (SQL20-12)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Money Gram,Western Union |
Product Specifications
| Prod Model: |
SQL20-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Technology: |
Logic IC |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
QFP/PFP |
| Batch Number: |
2014+ |
| Brand: |
Saishe |
Product Description
Features:
1) Electrical isolation between chips and substrate, 2, 500V AC.
2) International standard encapsulation.
3) Full press-fit construction, superior temperature characteristics and power circulation capability.
4) Simple assembly, and easy to use and maintain.
5) Small size and light weight.
6) For use on:
A) DC power for instruments
B) Industrial heating controlling
C) Various rectifying power supply
D) Light change
E) Non-touch switch
F) Soft-starters for electric machinery
G) Static compensation of zero power
H) Arc welders
I) Frequency converters
J) UPS power supply
K) Charging and discharging of battery
7) Rated current ranging from 25A to 106A, peak voltage ranging from 200V to 2, 000V are all available. BASIC INFO.Model NO.: SQL10A SQL20A SQL40A SQL50A SQL60A SQL100A SQL150 Manufacturing Technology:Logic ICMaterial:Element Semiconductor Type:Intrinsic SemiconductorColor:Silver Weight:1.2kgCurrent:10A-300A Voltage:100-1600Rectifier Type:Three Phase Export Markets:GlobalSupply Voltage:Standard Products Status:in StockWarranty Period:18 Month Certificates:Ets ISO9001: 2000 CQC CE

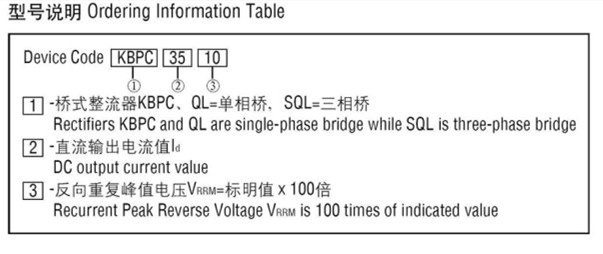

| Type | Id | IF(AV) | VRRM | IRRM | VISOL | Outline |
| A | A | V | mA | V |
|
| SQL10A | 10 | 12 | 100~1600 | 7 | 2500 | 32x60x25 |
| SQL20A | 20 | 16 | 100~1600 | 7 | 2500 | 32x60x25 |
| SQL40A | 40 | 14 | 100~1600 | 7 | 2500 | 60x100x55 |
| SQL50A | 50 | 18 | 100~1600 | 7 | 2500 | 60x100x55 |
| SQL60A | 60 | 20 | 100~1600 | 7 | 2500 | 60x100x55 |
| SQL100A | 100 | 34 | 100~1600 | 7 | 2500 | 60x100x55 |
| SQL150A | 150 | 50 | 100~1600 | 10 | 2500 | 132x145x75 |
| SQL200A | 200 | 67 | 100~1600 | 10 | 2500 | 132x145x75 |
| SQL250A | 250 | 84 | 100~1600 | 10 | 2500 | 132x145x75 |
| SQL300A | 300 | 92 | 100~1600 | 10 | 2500 | 132x145x75 |
Yueqing Sanshe Semiconductor Factory has been specialized in manufacturing power module, such as SCR module, silicon rectifying module, high-power resistance, solid state relay, etc. It is a company that has been engaged in the research, development, production and sale of electric power semiconductors. Not only does our company have strong technical force, but also perfect production line. Besides, we have first-rate testing facilities. And all of our products are stable in performance and reliable in quality.
We have acquired ISO9001 quality system certification and CE certification. Our products are widely used in replacing similar brand name products from abroad, which can help users save cost, and they have been enjoying great popularity among the users.
We are willing to establish long-term business relationship with all customers on the basis of honesty, trustworthiness, deploitation and innovative entrepreneurship.
