Product Specifications
| Prod Model: |
SMB-T400L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressing Force (Kn): |
4000 |
| Bale Weight (Kgs): |
600~900 |
| Bale Size (Mm): |
700*700 |
| Throughput (Tons/R): |
8.0~12.0 |
| Motor Power (Kw): |
135 |
| Pressing Chamber (Mm): |
5000*2000*1200 |
| Machine Size (Mm): |
11400*6850*6690 |
| Machine Weight(Tons): |
90 |
| Processing Methods: |
Physics |
| Pullution Sources: |
Solid Waste Processing |
Product Description
Applications
Car Body Pieces Stainless Scrap Tin Cans
Mixed Light Scrap Metals Scrap Aluminum Window Scrap Steel Wire
Scrap Copper Wire Steel Sheets Steel Roof Steel Shavings
Shred Scrap Steel Non Ferrous Metal

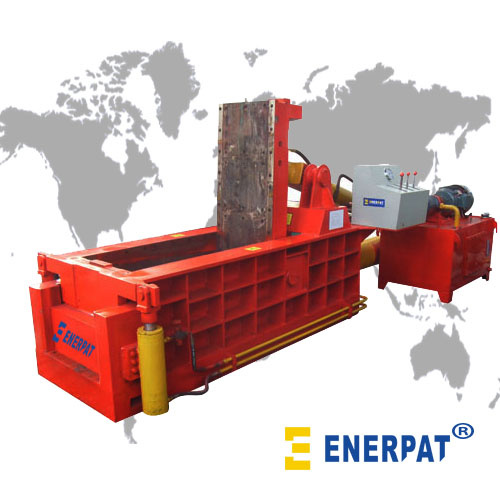

Equipment Descriptions And Images
SMB series Scrap Metal Baler press the leftover of all kinds of metal material (steel shavings, scrap teel, scrap aluminium, scrap copper, scrap stainless steel) to be qulified furnace with shape of cuboid, octagon, cylinder and so on.
This Top Ejection Baler has a big pressing chamber, so it is perfect for loading more big size scrap metals. Like the steel shavings, scrap steels, scrap aluminium, scrap coppers, scrap stainless steels and so on, all these kinds of metal materials can be made into qualified furnace. And it is equipped with a hand valve control, which makes easy and safety operation for the operators.
We use the TOP brands such as the Siemens motor drive. And the machine press from three sides, which means the metals can be compacked into a high density bale.
Equipment Unique Features
· Siemens Motor Drive
Original Germany made Siemens motor; With cooler and hotter, for special temperature environment
· High Density Bales
Powerful pressing force with 100tons cylinders. Pressing from three side, which compact the scrap metals into ahigh density bale. And the bales can be turned out automatically.
· TOP Loading, easy to operate
· Loading with grab bucket or Steel Conveyor; No installion demands, operating the baler directly; With control platform on the baler, easy hand valve control, convenient for operating
· Diesel engineer is also OK
· This machine can use motor and diesel engineer is suitable too.
Technical Specifications
No Model T400L
1Pressing Force (Kn)4000
2Bale weight (Kgs)600~900
3Bale size (mm)700*700
4Throughput (Tons/r)8.0~12.0
5Motor Power (Kw)135(three 45)
6Pressing Chamber (mm)5000*2000*1200
7Machine Size (mm)11400*6850*6690
8Machine Weight(Tons)90
9Container Loading(Gp) 2*20"GP+2*20"OT
10Oil Tank Capacity(L) 5400
Related Equipments
SMB-T400L ( FOR Car Body)
SMB-Q Sery
SHEAR BALER FROM 500 TONS TO 1250 TONS
And we do have many models in this sery, you can come to visit our website to get more information you want.
|
Model |
Press Chamber
(mm) |
Bale Size(mm) |
Bale Weight(kg) |
Output
(tons/hour) |
Shipping Weight
(tons) |
Motor(kw) |
|
F63S |
1000*600*500 |
200*200 |
15-30 |
0.4-0.8 |
4 |
11 |
|
F63L |
1100*600*500 |
200*200 |
15-30 |
0.4-0.8 |
4.4 |
11 |
|
F63XL |
1200*600*500 |
200*200 |
15-30 |
0.4-0.8 |
5 |
11 |
|
F100S |
1200*600*500 |
200*200 |
20-30 |
0.5-0.8 |
4.6 |
15 |
|
F100L |
1200*600*600 |
230*230 |
30-35 |
0.6-0.7 |
5.5 |
15 |
|
F100XL |
1200*600*600 |
240*240 |
25-40 |
0.8-1.0 |
5.5 |
15 |
|
F100XLL |
1300*600*500 |
300*300 |
45-50 |
1.0-1.2 |
6.2 |
15 |
|
F125S |
1200*700*600 |
240*240 |
40-50 |
1.2-1.4 |
4.8 |
15 |
|
F125L |
1400*700*700 |
300*300 |
60-90 |
1.5-2.0 |
7.5 |
18.5 |
|
F125XL |
14001000*700 |
300*300 |
70-100 |
1.5-2.5 |
10.8 |
45 |
|
F160S |
1400*900*700 |
320*320 |
70-85 |
1.5-2.2 |
10.2 |
22 |
|
F160L |
1600*1000*800 |
400*400 |
100-180 |
2.0-3.5 |
10.8 |
22 |
|
F160XL |
1600*1200*800 |
400*400 |
100-200 |
2.0-4.0 |
15 |
45 |
|
F200S |
1600*1000*800 |
400*400 |
120-220 |
2.5-4.5 |
13.5 |
45 |
|
F200L |
1600*1200*800 |
400*400 |
120-220 |
2.5-4.5 |
13.5 |
37 |
|
F200XL |
1800*1500*400 |
400*400 |
180-350 |
3.5-6.0 |
25 |
44 |
|
F250S |
2000*1400*9000 |
500*500 |
200-450 |
4.0-7.0 |
19.5 |
60 |
|
F250L |
2000*1400*1000 |
500*500 |
200-450 |
4.0-7.5 |
27 |
60 |
|
F250XL |
2000*1400*9000 |
500*500 |
200-450 |
5.0-8.0 |
27 |
60 |
|
F315S |
2000*1750*1200 |
500*600 |
300-500 |
6.0-10.0 |
31 |
45 |
|
F315L |
2500*2000*1200 |
600*600 |
400-700 |
6.0-10.0 |
50 |
45(two) |
|
F315XL |
2600*2000*1200 |
500*600 |
400-700 |
6.0-10.0 |
52 |
45(two) |
|
F400S |
3000*2000*1200 |
600*700 |
500-800 |
7.0-11.0 |
58 |
45(two) |
|
F400L |
5000*2000*1200 |
700*700 |
600-900 |
8.0-12.0 |
90 |
45(three) |
