Screen Water Filter for Papermaking Industry (ISO, SGS Certification)

Name: Screen Water Filter for Papermaking Industry (ISO, SGS Certification)
Brand: China-Manufacturer-Directory.com
SKU: 693358265
Availability: InStock
Rating: 4.7 (37 reviews)

Supplier:	Peide Water Treatment Equipment Co., Ltd.
Price:	US $ 480-500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,others

Product Specifications

Prod Model:	XLQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install:	Vertical, Horizontal
Application:	Water Filter
Condition:	New
Product Model:	Xlq-Xm,Xlq-Xt
Filter Rating:	30-3000 Um
Filter Area:	1500-13500 Cm2
Power Supply:	550W
Electricity:	220V,380V,According to The Customer Request
Control Way:	PLC or Not
Flow Rate:	15-900t/H
Usage:	Environmental Protection
Motive Force:	Electric power
Type:	Water Filter
Certification:	SGS, ISO

Product Description

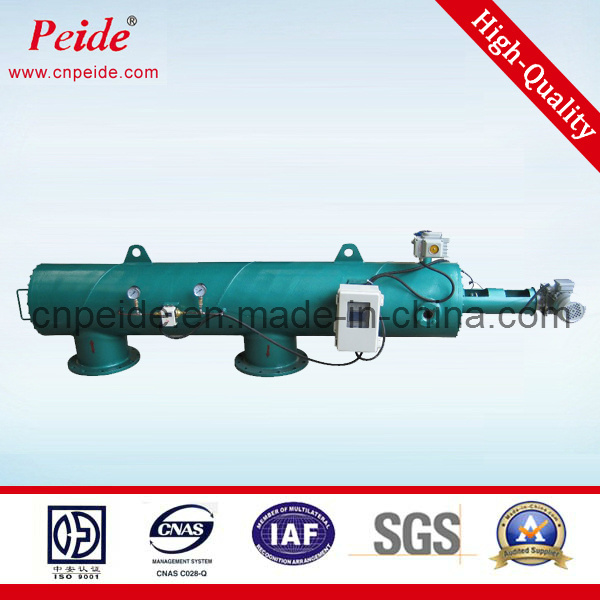

Screen Water Filter for Papermaking Industry (ISO, SGS Certification)

Feature
structure compact
low water consumption
fine filter degree
low pressure drop

Application
1,Chilling water treating: such like cooling tower, water supplement system, air conditioning system, heat exchange system.
2,Raw water treating: such like surface water, lake, sea water, tank water, well to remove grind, sand, algae, organism etc.
3,cycling industry water: cooling tower, polishing process water, ion exchange water, spraying process water, heat exchange plant, rolling plant, casting plant etc.
4,irrigation: farm, dip field, golf, lawn etc.
5,recycle water

How It Works

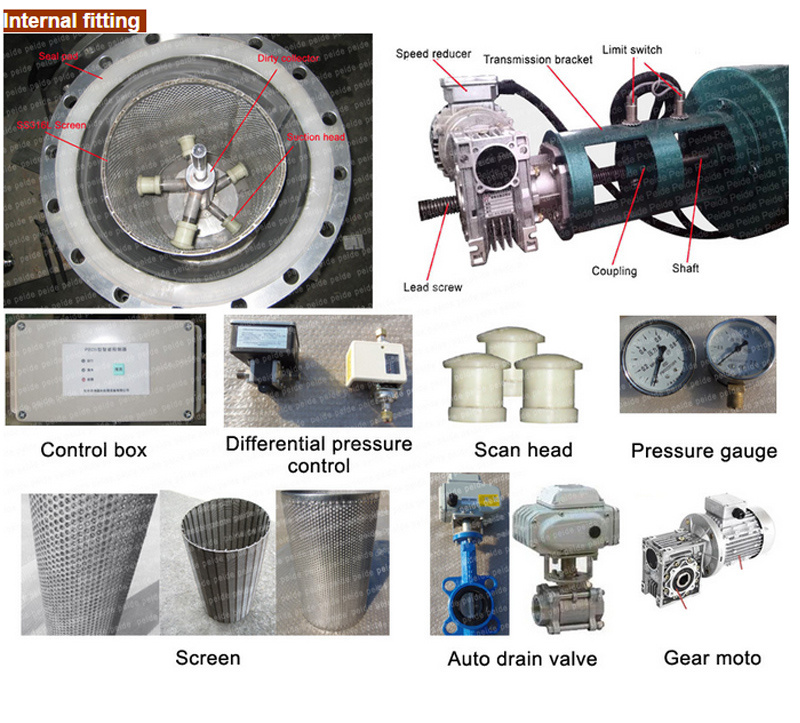

The unit consists of two stages of filtration, a coarse pre-filter and a stainless steel fine screen.
The unwanted solids accumulate on the inner surface of the fine screen, building up a filtercake, which filters out even finer particles, creating a pressure differential. Once the pressuredrop reaches a preset level, a rinse cycle is activated by the factory supplied control system.
The solids are removed from the fine screen using a spot backwashing method, whichaggressively sucks the dirt off the screen, similar to a vacuum cleaner, and are carried tothe drain via the rinse valve. The dirt collector rotates, ensuring the entire screen is cleanedeach cycle. The process takes a matter of seconds, without interruption of system flow.

Control method
Filter has differential switch and integrator. Once the pressure drop reaches a preset level, a rinse cycle is activated by the PLC controller.

Parameter

Install way	Vertical installation
Unit capacity	15-900T/H, Achieve parallel install to achieve big capacity
Min work pressure	0.25Mpa
Max work pressure	1.0Mpa,1.6Mpa
Micron	20-500um
Control way	Differential pressure, time and manual
Max temperature	65ºC (reach to 100ºC if required)
Back wash time	60-120S
Rotating speed	14-20rpm
Clean way	Scanning type
Differential pressure in cleaning	0.01-0.08Mpa
Back wash water consumption	Approximate 500kg
Voltage	AC220V 380V,50Hz,3PH,Controller: 220V
Motor power	0.37Kw
Material	Carbon steel with anti-corrosion painting
Screen	316SS (Woven, ,multi-layer sintered, wedge)
Drain valve	cast ion with antir-corrosion painting
PLC controller

Model	Pipe	T/H	Filter area(cm2)	Drain(mm)	Water consumption (L)	motor(KW)	weight(KG)
XLQ-200XT	200	300	7500	50	250	0.55	340
XLQ-250XT	250	450	11000	80	400	0.55	350
XLQ-300XT	300	650	11000	80	400	0.55	365
XLQ-350XT	350	900	13800	80	400	0.55	630
XLQ-400XT	400	1200	13800	80	400	0.55	650
XLQ-450XT	450	1500	13800	80	400	0.55	690

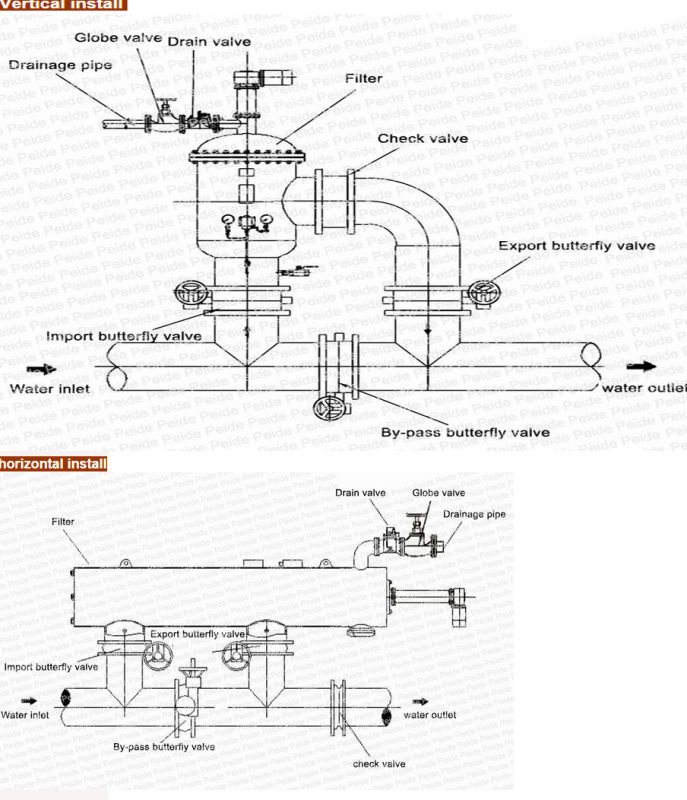

Install notice
1.One check valve must be installed at filter outlet. Return pressure and back water is forbidden, in case of screen out of shape.
2.If system wok pressure over 0.8MPa, should install break valve at drain pipe to reduce impact to screen.
3.Notice motor rotating direction. Shut off power immediately once back rotating (anti-clock wise ) occurs. )
4.Installation each part according to arrow direction.
5.Sudden pressure relief at outlet pipe is forbidden. Take normal work pressure 1.3MPa for example, if suddenly open branch valve at outlet, it will occur instant huge different pressure, which damage screen.
6.Make sure filter used under correct work pressure, capacity.
7.If alarms, open by-pass valve for temporary back washing solutions.
8.Make sure control box have constant power supply. If power off, users can open by-pass valve, close in and outlet valve and control box switch.

Meet Our Quality Assurance System

1. 100%factory & industry tested;

2. Years of trouble free service offered

3.We owned 17 items of patented technologies

4.We have passed the ISO9001 quantity management system certification, SGS certification

Welcome to inquire,We will offer you the best items!

Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,

For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.

Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .

Certificate: ISO: 9001: 2008, CE, China Famous Brand

Sales: 20M RMB/year

Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
