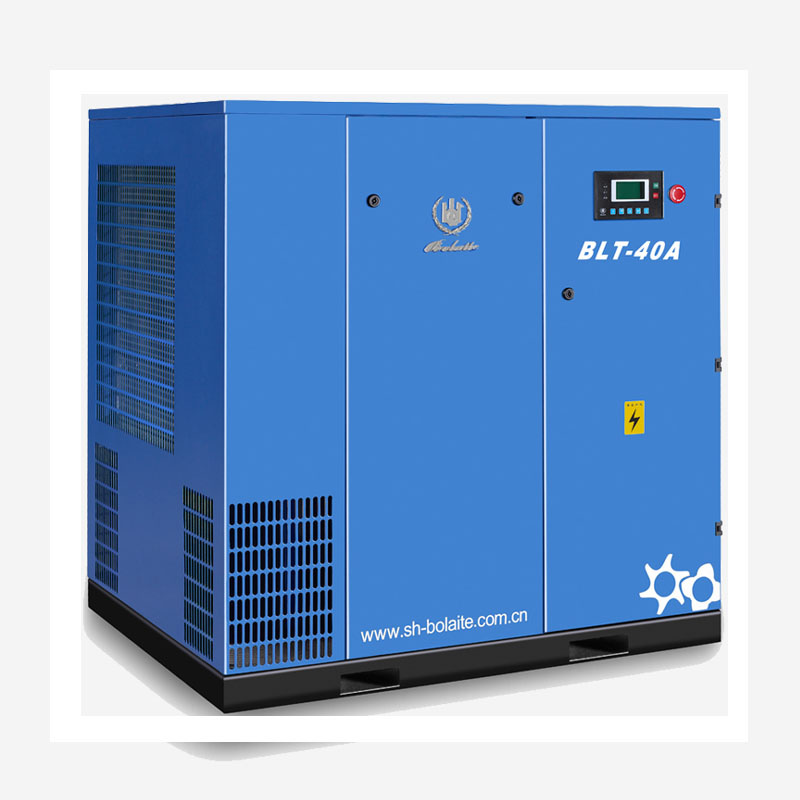

Product Specifications
| Prod Model: |
BLT-40A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Type: |
Screw |
| Drive Mode: |
Electric |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Lubrication Style: |
Lubricated |
| Mute: |
Mute |
| Place Of Origin: |
Shanghai, China (Mainlan |
| Brand Name: |
Bolaite |
| Working Pressure: |
7bar |
Product Description
Screw air compressor is high efficiency energy saving under the stable discharging pressure condition.
Sweden Atlas Copco air end
SKF bearing
Air cooled screw air compressor, air compressor, varible driven air compressor Original import Atlas mainframe SKF bearing energy saving easy to operate low maintain fee
If you chose us, you are bound to have the most advance screw technology and the best service of the world.
Donglai provide high quality produces and services for generall industrials, manufacture industrials electricity, architecture, mining, energy, ect, our service network composed of distributors and agencies assigned by local subsidiaries, they are providing perfect services for donglai's customers from all over the world.
Donghlai Group:
Provide the best compressed air system to user
Our Products:
High efficient, durable, energy saving, enviroment protection
If you have any questions, please feel free to contact me. Thanks
Mode
|
| BLT-40A
| BLT-50A
| BLT-60A
| BLT-75A/W
| BLT-75AG
| BLT-120A/W
|
Free air deliver/Discharge Pressure
| m³ /min/Mpa
| 4.75/0.7
| 6.80/0.7
| 7.80/0.7
| 10.50/0.7
| 10.80/0.7
| 17.1/0.7
|
4.50/0.8
| 6.28/0.8
| 7.30/0.8
| 9.80/0.8
| 10.00/0.8
| 16.9/0.8
|
4.25/1.0
| 5.60/1.0
| 6.60/1.0
| 8.80/1.0
| 9.00/1.0
| 14.6/1.0
|
3.75/1.3
| 4.60/1.3
| 5.70/1.3
| 8.00/1.3
| 8.20/1.3
| 12.6/1.3
|
No of compressor stage
|
| Single stage
|
Ambient temperature
|
| -5+45
|
Cooling Model
|
| Air-Cooling Water-cooling
|
Displacement temperature
|
| Ambient temperature +15
|
Noise level
|
| 65±2
| 65±2
| 66±2
| 68±2
| 68±2
| 72±2
|
Drive method
|
| direct/belt driven
|
Electricity
| V/ph/Hz
| 380/3/50 440/3h/50,60
|
Motor Power
| Kw
| 30
| 37
| 45
| 55
| 55
| 90
|
Starting method
|
| Y -Δ start
|
Lubricant
| L
|
12
| 15
| 17
| 36
| 36
| 42
|
Dimension
| L(mm)
|
1100 |
1335 |
1335 |
1585 |
1585 |
1710 |
W(mm)
|
865 |
970 |
970 |
1170 |
1170 |
1170 |
H(mm)
|
1145 | 1630 |
1630 |
1800 |
1800 |
1800 |
Weight
| Kg
|
465 |
830 |
830 |
1180 |
1170 |
1450 |
Outlet Pipe Diameter
| mm
| 25
| 40
| 40
| 50
| 20
| 50 |
Shanghai Zi Qi Group compressors air end has its headquarter in Germany. Its advanced technology, professional computer management system contributes to the excellent GoodAir Double Screw Air Compressor. The technology and energy consumption has achieved a new level, which can meet the European Standard. Our company always applies the advanced European design and consummate assembly technique, develop the manufacture technology and enhance the testing methods. We will provide you the best solution for air compressor system and make sure that every component has the best work condition. Therefore CoodAir Compressor applies the Original German air end and most components are world-famous brand, which makes our products well-designed and highly reliable.
We confidently believe that Shanghai Zi Qi Group is your reliable professional manufacturer for Air Compressor. We shall provide you the best Compressed Air System with our advanced technology, excellent products and services. Our products include Air & Water cooling Screw compressor, Belt & Direct Driven Screw compressor, Frequency screw compressor and Diesel Driven Portable screw compressor, Refrigeration & Adsorption air dyers, precision air filters, air tanks and screw compressor spare parts, etc. We provide high-quality Compressed Air System to make sure that the user can achieve the best productivity. The user can choose a complete Compressed Air System to meet almost every demand from our products.
