Ziqi Compressor (Shanghai) Co., Ltd. >> Screw Compressor with High Efficiency

Screw Compressor with High Efficiency

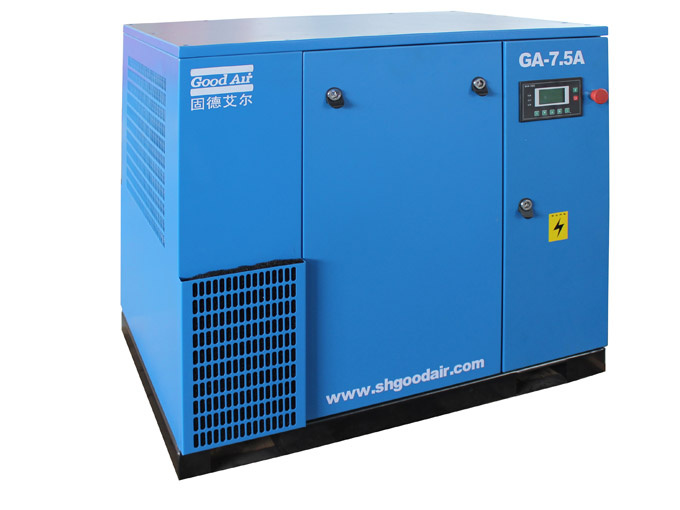

Name: Screw Compressor with High Efficiency
Brand: China-Manufacturer-Directory.com
SKU: 736118325
Availability: InStock
Rating: 4.8 (100 reviews)

Supplier:	Ziqi Compressor (Shanghai) Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	GA-7.5A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw
Lubrication Style:	Lubricated
Mute:	Not Mute
Quality:	High
Model:	Ga-7.5A
Certification:	CE9001
Dimensions(Mm):	950650915
Weight(Kg):	270

Product Description

ZIQI screw air comoressor adopt air end of German original AERZEN or GHH brands,design excellent unique ,enjoyed an very good reputation by users for the accuracy of manufacturing and high efficiency.

The strong heart ensures superior performance and uses famous motors Protection class IP54, Insulation class F class.

The world famous brand Electric elements is German Schneider

Mode		GA-30A	GA-37A	GA-45A		GA-55A	GA-75A	GA-90A
Free air deliver/Discharge Pressure	m³ /min/Mpa	5.7/0.7	6.8/0.7	7.9/0.7		10.6/0.7	14.2/0.7	17.0/0.7
		5.5/0.8	6.2/0.8	7.4/0.8		10.1/0.8	13.5/0.8	16.5/0.8
		5.0/1.0	5.7/1.0	6.9/1.0		9.1/1.0	12.3/1.0	15.2/1.0
		4.5/1.3	5.0/1.3	6.1/1.3		8.3/1.3	10.3/1.3	14.0/1.3
No of compressor stage		Single stage
Ambient temperature		-5+45
Cooling Model		Air-Cooling
Displacement temperature		Ambient temperature +15
Noise level		65±2	65±2		68±2	75±2	75±2	75±2
Drive method		direct/belt driven
Electricity	V/ph/Hz	110,220,380,440/3/50,60
Motor Power	Kw/hp	30/45	37/50		45/60	55/75	75/100	90/120
Starting method		Y -Δ start
Lubricant	L	22	22		22	50	50	50
Dimension	L(mm)	1500	1500		1500	1750	1750	2545
	W(mm)	970	970		970	1500	1500	1450
	H(mm)	1375	1375		1375	1700	1700	1900
Weight	Kg	780	800		820	1450	1500	2200
Exit Diameter	mm	40	40		40	50	50	50

Shanghai Zi Qi Group compressors air end has its headquarter in Germany. Its advanced technology, professional computer management system contributes to the excellent GoodAir Double Screw Air Compressor. The technology and energy consumption has achieved a new level, which can meet the European Standard. Our company always applies the advanced European design and consummate assembly technique, develop the manufacture technology and enhance the testing methods. We will provide you the best solution for air compressor system and make sure that every component has the best work condition. Therefore CoodAir Compressor applies the Original German air end and most components are world-famous brand, which makes our products well-designed and highly reliable.

We confidently believe that Shanghai Zi Qi Group is your reliable professional manufacturer for Air Compressor. We shall provide you the best Compressed Air System with our advanced technology, excellent products and services. Our products include Air & Water cooling Screw compressor, Belt & Direct Driven Screw compressor, Frequency screw compressor and Diesel Driven Portable screw compressor, Refrigeration & Adsorption air dyers, precision air filters, air tanks and screw compressor spare parts, etc. We provide high-quality Compressed Air System to make sure that the user can achieve the best productivity. The user can choose a complete Compressed Air System to meet almost every demand from our products.
