Categories
Price: | US $ 0.6-1/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 500/Piece |
Pay Type: | L/C,T/T,Western Union |

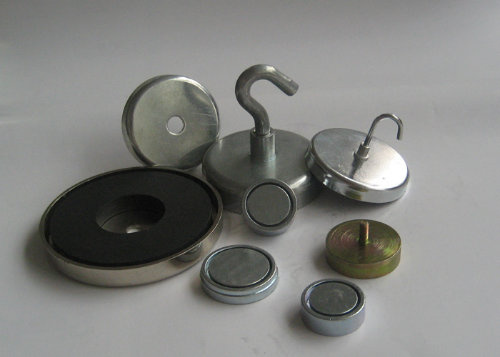

Neodymium Pot Magnet
The Pot Magnet with Countersunk have a countersunk hole in the front (magnetic) face and can be easily fixed in place with a countersunk screw (M4, M5 and D8). They are ideal for using in fixing applications such as Point of Sale Displays, Exhibitions, Marketing Displays, Doors, Panels, False Ceilings and Light Fixtures and Fittings.
They are available in diameters from 19mm to 50mm and with a maximum pull of 0.4kg up to 50kg. The Pot Magnet with Countersunk has a maximum operating temperature of +180 deg C with ferrite, +220 deg C with Alnico and +80 deg C with NdFeB.
We can produce other Pot Magnets with Countersunk according to customer requirements. You are welcome to contact us for more information.
ITEM NO. | Magnet | D (mm) | H (mm) | L (mm) | M (mm) | PULL Strength (Kg) |
HSRN10 | Neodymium | 10 | 5.0 | 12.0 | 3 | 2.2 |
HSRN12 | Neodymium | 12 | 5.0 | 13.0 | 3 | 3.2 |
HSRN16 | Neodymium | 16 | 5.0 | 13.0 | 4 | 5.5 |
HSRN20 | Neodymium | 20 | 7.0 | 15.0 | 4 | 9.0 |
HSRN25 | Neodymium | 25 | 8.0 | 17.0 | 5 | 22.0 |
HSRN32 | Neodymium | 32 | 8.0 | 18.0 | 6 | 34.0 |
HSRN36 | Neodymium | 36 | 8.0 | 18.0 | 6 | 41.0 |
HSRN42 | Neodymium | 42 | 9.0 | 20.0 | 8 | 68.0 |
HSRN48 | Neodymium | 48 | 11.5 | 24.0 | 8 | 81.0 |
HSRN60 | Neodymium | 60 | 15.0 | 30.0 | 8 | 113.0 |
HSRC10 | Ceramic | 10 | 4.5 | 11.5 | 3 | 0.4 |
HSRC13 | Ceramic | 13 | 4.5 | 11.5 | 3 | 1.0 |
HSRC16 | Ceramic | 16 | 4.5 | 11.5 | 3 | 1.8 |
HSRC20 | Ceramic | 20 | 6.0 | 13.0 | 3 | 3.0 |
HSRC25 | Ceramic | 25 | 7.0 | 15.0 | 4 | 4.0 |
HSRC32 | Ceramic | 32 | 7.0 | 15.0 | 4 | 8.0 |
HSRC47 | Ceramic | 47 | 9.0 | 17.0 | 3 | 18.0 |
HSRC57 | Ceramic | 57 | 10.5 | 18.5 | 4 | 28.0 |
HSRC63 | Ceramic | 63 | 14.0 | 29.0 | 4 | 35.0 |
Prod Model: | pot magnet |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Permanent |
Shape: | Pot |
Application: | Industrial Magnet |
Magnetization: | Axial |
Size: | Customized |
Thread Size: | M3,M4,M6,M8,M10,M12 |
Composite: | NdFeB Magnet, Magnet+Iron |
