Scroll Iron Core Distribution Transformer

Product Specifications

Prod Model:	S11. M-RL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Application:	Audio

Product Description

S11-M. RL
Three Phase Stereoscopic Scroll Iron Core Distribution Transformer


S11-M. RL Three phase Stereoscopic Scroll iron Core Distribution Transformer is the product of new type high technology and high save energy. Compared with S9, S11-M. RL's no-load current hangs down 70-80% and no-load loss reduction 30-40% and noise reduces 8-10dB. It is extensively suitable in factory, mines, petroleum chemical industry and the distribution of industry and agriculture, motive force and illumination, and especially is suitable in the power supply place of higher requirement.

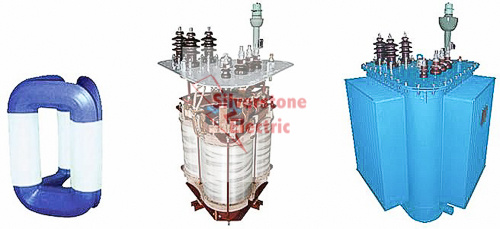

The iron core is three phase stereos scroll iron core structure which combined by three single-frame scroll iron core.
The direction of silicon steel block rolling is the same as the magnetic route direction, three single-frame iron core are
Opposite independence, three-phase magnetic route are the same distance and does not have the magnetic field
Distortion in plane scroll iron core triangle area. Iron core pillar and yoke section is close to round and the HV and LV
Circle directly winds on the iron core, and the fuel tank is the bucket type fuel tank of approximate triangle. It possess
The merits of strong resisting short circuit ability, small no-load current, low noise, small volume, light weight and low
Temperature rising. The technology quota is advanced, structure is unique and the appearance is exquisite.

Our Transformer Product Range
S10 S11 S13 oil type transformer: 50-31500KVA, 6-33KV, 50/60HZ, off load tape changer
SZ10 SZ11 oil type transformer: 50-31500KVA, 6-33KV, 50/60HZ, on load tape changer
SCB9, SCB11 dry type transformer: F grade insulation, 50-3150KVA, 6-33KV, 50/60HZ
SCBH15 11KV amorphous alloy dry type transformer: F grade insulation
SGB10 SGB11 11KV dry type transformer: H grade insulation
SBH15 Oil type amorphous alloy transformer 11KV Level
S13-M 1full sealed oil immersed power transformer
Dry type reactor
S(B)H15-16 Amorphous Transformer
BKSC(G)Dry-type shunt reactor
QKSC Dry Startup reactor
Smoothing reactors

KD-LK-type low-pressure filter reactor
Cast resin dry type earthing transformer
Dry type rectifier transformer
Rectifier transformer
Furnace transformer
Note: We can design and manufacture special transformer as customers' requirements.
Ordering Instruction: 1. Product model; 2. Rated capacity; 3. Voltage range; 4. Regulation range; 5. Frequency; 6. Connection symbol; 7. Technical specs for customized transformer.
