Product Specifications
| Prod Model: |

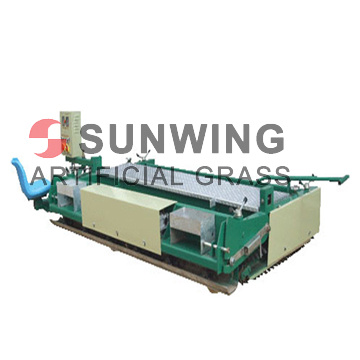

SD-2.5 spreading machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Sunwing |
| Usage: |
Spreading Machine |
| Model Number: |
SD-2.5 |
| Packaging Details: |
Frame Structure on The Bottom, Plastic Film Covere |
| Delivery Detail: |
45-50days |
| Type: |
Electrostatic Spraying Equipment |
| Application: |
Plastic Spraying Equipment |
| Method Type: |
Automatic |
Product Description
1. Spread, pave the bottom layer of plastic cement stadiums
2. It may accommodate any poor conditions in the construction site
3. Adjustment of height, angle, temperature, and vibration
4. Usage: Used for spreading, paving the bottom layer of plastic cement stadiums
Packing method:
Frame structure on the bottom, plastic film covered outside
1. Dimensions (before packing)L× W× H: 275cm× 160cm× 75cm
Dimensions (after packing)L× W× H: 200cm× 300cm× 70cm
2. Net weight(KG): 850
Gross weight(KG): 1000
Specifications
1.spread, pave the bottom layer of plastic cement stadiums
2.it may accommodate any poor conditions in the construction site
Item No. | product information |
net
weight
(KG) |
gross
weight
(KG) |
usage | packing method |
| SD-2.5 spreading machine | used for spreading, paving the bottom layer of plastic cement stadiums |
frame structure
on the bottom,
plastic film
covered outside |
850 | 1000 |
1.Product Prupose
mainly used for spreading, paving the bottom layer of plastic cement stadiums
2.Main Technical Parameters
Effective working width | 2500mm |
| Moving Rate | 0.8-6m/min |
| Paving capacity | 100m2/h-400m2/h |
| Power | 8.6kw |
| Weight | 850kg |
| External dimension(L*W*H) | 275cm*160cm*75cm |
| dimension packed (L*W*H) | 200cm*300cm*70cm |
3.Structure And Function
1.Framework:with a firm and stable welded H-type structure,and a rust-proof paint layer, it may accommodate any poor conditions in the construction site.
2.Front scratch board:welded joint structure,the ground clearance is manually adjustable through a screw,which controls the thickness of the floor layer. The width may be adjusted through a limiting board.
3.Driving device:the main driving system is a motor-driven caterpillar chain,with the speed smoothly controlled by a frequency converter,which is featured as stably and precisely moving ahead or back in an arch motion.it may be equipped with different caterpillar belt for different bottoms.
4.Walking mechanism:the spreading machine may be manually moved or relocated
through a walking mechanism consisting of a hydraulic cylinder and lift.
5.Screed:the screed has four functions,viz.the adjustment of height, angle, temperature, and vibration. The plastic cement material is vibrated,compacted and paved while passing through the screed.
