Product Specifications
| Prod Model: |
SDC-3001E-IR1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description

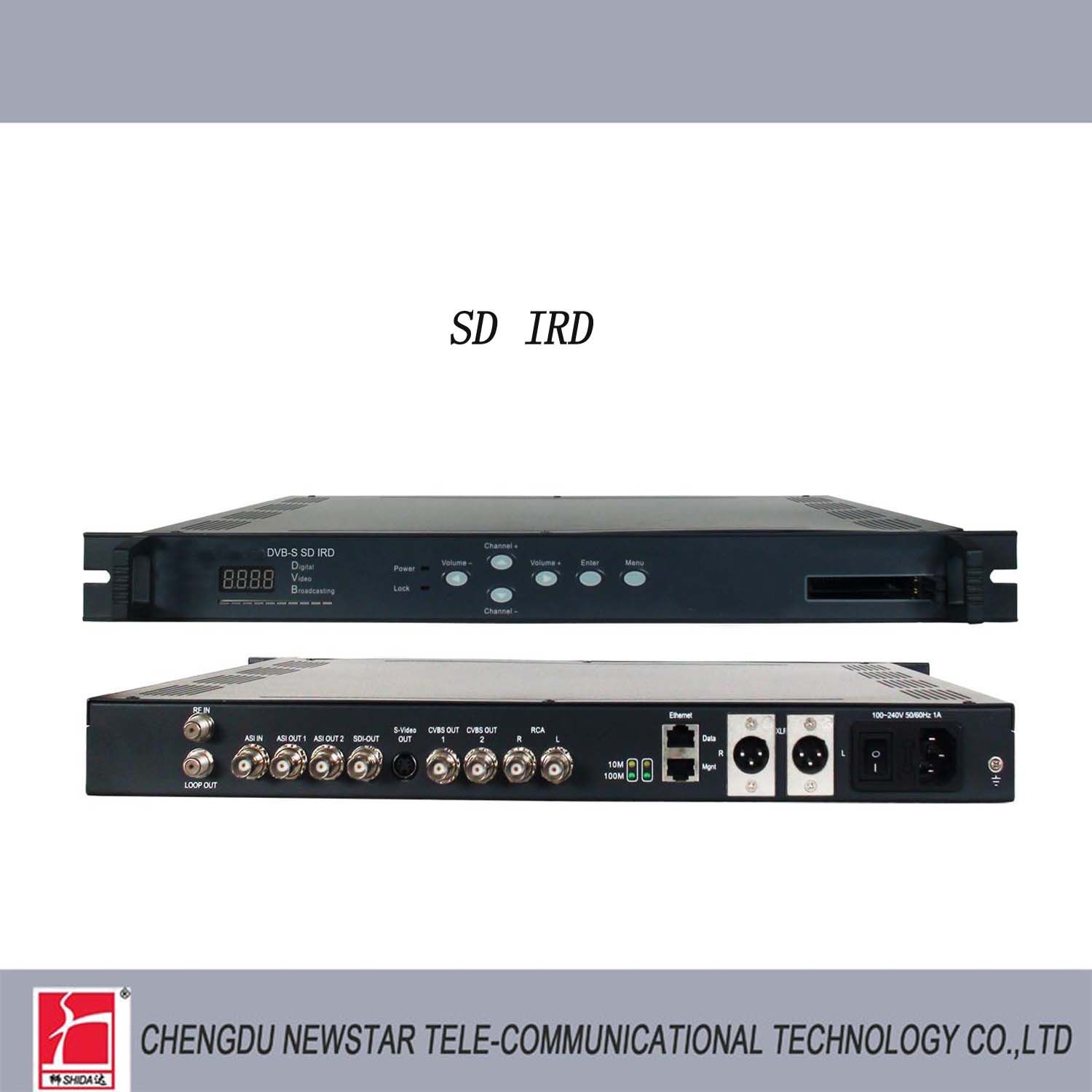

SD IRD (DVB-S/S2/T/C SD IRD)
Outline
SDC-3001E-IR1 SD IRD with CI slot can decode transport stream (compliant with MPEG2) from ASI or tuner into audio & video signal. With the help of CAM module, it can decrypt the encrypted programs in the input TS. It also can encapsulate the input TS into IP pocket and output in UDP protocol. Apart from this, the IRD has 2 ASI outputs and digital video & audio output interfaces, including SD-SDI, S-video and XLR, etc. In a word, the strong network management function provides user more convenient operation experience.
Features
MPEG-2 digital & Fully DVB compliant
QPSK demodulation support
Two routes MPEG-2 transport stream output
QPSK modulation frequency: 950~2150MHz, symbol rate: 2~45Msps
User can edit various satellites and transponders information
PAL / NTSC format TV
Can receive C / Ku-band SCPC / MCPC information from Satellite
256 colors display
PAL / NTSC automatic conversion
Channels automatically saved
2 CVBS outputs, 2 AUDIO outputs
2 PCMCIA Interfaces
One RJ45 interface, support NMS, TCP / IP network transport protocols to convenient network management
2 TS stream outputs, One TS Stream Input
One S-Video
2 separate CIM modules, each supports up to decrypt 8 channel Programs
One LNB input, one LNB output
2 Video outputs
|
Ethernet |
Connector |
RJ-45 |
|
Interface Type |
10/100 Base-T |
|
Protocols |
TS Over IP: UDP ; NMS: UDP |
|
DVB-CI |
Descrambler |
DVB-CSA |
|
Smart Cardinterface |
ISO7816 |
|
Separate (between TS, converter and card), interface |
PCMCIA |
|
Video output |
2 CH CVBS |
BNC interface, |
|
Audio output |
Stereo unbalanced audio |
BNC interface, |
|
ASI input |
BNCinterface |
Input impedance 75 |
|
Max transport rate |
54Mbps |
|
ASI output |
BNCinterface |
Output impedance 75 |
|
Maxtransport rate |
54Mbps |
|
Physics interface |
DB9 Female |
|
General |
Voltage |
AC :110-240V~, 50/60Hz |
|
Power |
<20W(Max) |
|
Temperature |
0~40(Operation); 10-35(Storage) |
|
Humidity |
10%~90% |
|
Dimension |
44mm*482mm*360mm |
|
Approxweight |
3.2kg |
