UL268 photoelectric type conventional smoke detector(SD119 series)
Detailed Product Description
smoke detector, smoke alarm
1) SD119 have UL268/521 and EN54-5/7 approvals
2) 2 wire
3) 5 year limited warranty
Feartures:
1) Advanced detection and discrimination algorithms
2) Easy installation and maintenance
3) Polished low-profile housing design
4) Durable sensor head, no need for replacement
5) SMD circuit board design: satisfactory quality and reliability guaranteed
6) Integrated heat detector for SD119-2H and SD119-4H models
7) N/C (normal / close) and N/O (normal / open) relay output ways for option
8) AR (auto reset) function for security systems (optional for 4-wire models)
9) Sensor base: standard and Schottky diode style for option
10) With two LED, more 360 degree visual angle

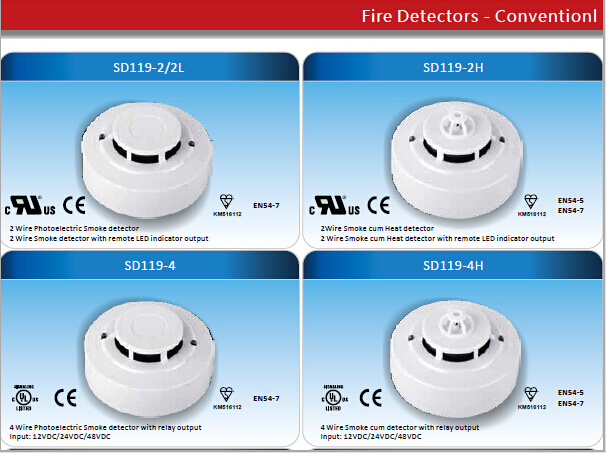

The range includes:
SD-119-2 :2 wire photoelectric smoke alarm
SD-119-2L :2 wire photoelectric smoke alarm with remote LED output
SD-119-2H :2 wire photoelectric smoke and heat alarm
SD-119-2HL :2 wire photoelectric smoke and heat alarm with remote LED output
SD-119-4-12/24: 4 wire photoelectric smoke alarm (12/24VDC)
SD-119-4B-12/24 :4 wire photoelectric smoke alarm with Buzzer (12V/24DC)
SD-119-4AR-12/24 :4 wire photoelectric smoke alarm with auto-reset function (12/24VDC)
SD-119-4ARB-12/24 :4 wire photoelectric smoke alarm with auto-reset function and Buzzer (12/24VDC)
SD-119-4H-12/24: 4 wire photoelectric smoke and heat alarm (12V/24DC)
SD-119-4HB-12/24 :4 wire photoelectric smoke and heat alarm with Buzzer (12/24VDC)
SD-119-4HAR-12/24 :4 wire photoelectric smoke and heat alarm with auto-reset function (12/24VDC)
SD1194HARB12/24 :4 wire photoelectric smoke and heat alarm with autoreset function with Buzzer (12/24VDC
SPECIFICATION
| Smoke Sensitivity | 0.98--2.40%/FT Obscuration (UL) ; 0.08--0.14 dB/m (EN) |
| Ceiling Spacing | 50 foot rating for heat sensor |
| Temperature Range | -10°C to 50°C |
| Humidity | 0 to 95% RH, no condensation or icing |
| Dimensions | 100mm (dia.) x 46mm (ht) with base |
| Weight | 130g/set with base |
| Prod Model: | SD119 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: | 5 Year Limted Warranty |
| Wire: | 2 or 4 Wire Models |
| Temperature: | -10 to 50 |
| Approval: | UL268 En54 |
| Type: | Smoke Alarm |
| Signal Transmission: | Wired Alarm |
| Certification: | UL En54 |
| Application: | Indoor |
| Usage: | Smoke |
