Product Specifications
Product Description

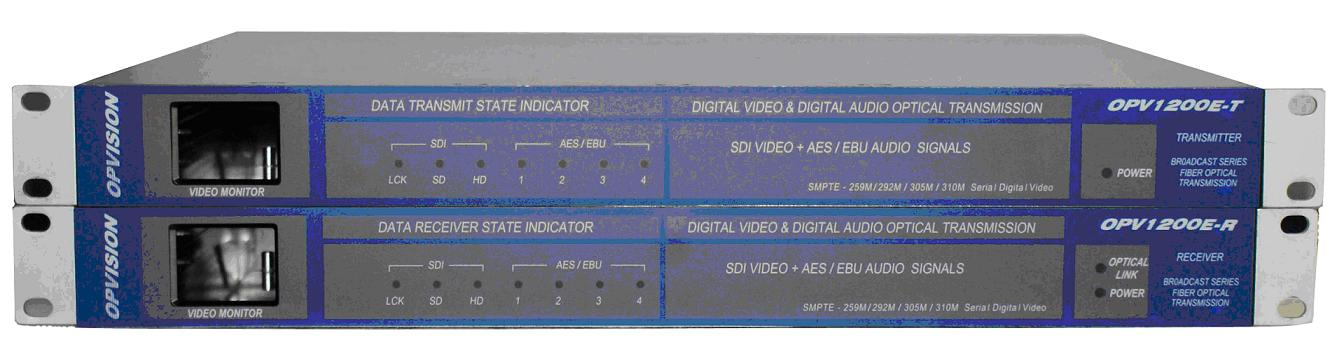

OPV1200 system provides transmission of one channel of SDI or HD-SDI (HDTV) Digital video signal and four channels of digital audio signal. The video signals can be digital video signals according with the standards of SMPTE-292M, SMPTE-259M, SMPTE-305M, SMPTE-310M or DVB-ASI, and the data rate can be between 19.4Mbps and 1.5Gbps. The digital audio signals should accord with AES/EBU format. Manifold types of OPV1200 series products are offered to meet different requirements of the customers. Adopting advanced digital optic fiber transmission technologies, OPV1200 devices can be installed rapidly without customer's adjustment, and can be operated and maintained readily. Customers can easily monitor the status of power-supply, connection and channels through the indicator lights on the front panel. For your choice, three types of OPV1200 series are provided including standalone, card-cage, and 1U case.
OPV1204T/R-M 4Digital Audio AES/EBU
OPV1204T/R-S 4Digital Audio AES/EBU
OPV1208T/R-M 8Digital Audio AES/EBU
OPV1208T/R-S 8Digital Audio AES/EBU
Applications
Broadcasting and TV program signal transmission
Martial communications
Video conferencing
Security monitoring and Cable TV system
Relay between studio to transmission center (STL)
Features
SDI signal format: SMPTE-259M or SMPTE-305M
SDI signal resolution: 10bit
SDI data rate: Up to 270Mbps
SDI-HD data rate: Up to 1.5Gbps
AES/EBU
Transport4/8/16 channels AES/EBU Over One Fiber
Signal Format AES/EBU under AES3-1992
Signal Resolution 24 bits per channel
Data Rate 6.144 MB/s per channel
Up to 60Km non-relay transmission distance
Standalone and care-cage packaging
