Product Specifications
| Prod Model: |
SE-72 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110, 220, 380, 440 V |
| Current: |
1A or 5A |
| Installation: |
General Installation Meter |
| Usage: |
Meter for Industry and Home Use |
| Theory: |
Machine-electric Type |
| Power Source: |
AC and DC |
Product Description
Application
Panel meter is one kind of electric measure indicator with the direct affection of imitate display. It is suitable for AC & DC output and input distribution circuit, power plant console cabinet, power operating board and different apparatus. It is used to measure DC current, voltage& AC current, voltage, frequency and phase power.
Technical Parameters:
Accuracy: class 1.5, 2.5
Relative humidity: 25% and 80%
Endurance: AC 45-65Hz 2KV 1min
Transport temperature: -30ºC~55ºC
Ambient temperature: 23ºC±10ºC
External magnetic field: 0.4KA/m
Installation position: vertical ±10ºC
The standard is a according to IEC60051-2
Specification:
Pointer Type

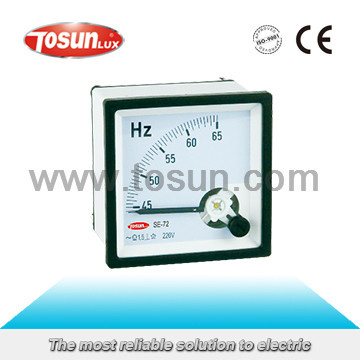

Frequency Meter | Voltage: 110V 220V 380V 440V | ...... | SE-96/SE-72 | Class 1.0 |
| Frequency: 45-55Hz, 45-65Hz, 55-65Hz, 47-53Hz |
| Reed Type Frequency Meter | Voltage: 110V 220V 380V 440V | ...... |
| Frequency: 45-55Hz, 45-65Hz, 55-65Hz, 47-53Hz |
| Power Factor Meter (cosφ) | Voltage: 110V 220V 380V 440V Current: 1A or 5A | For 1-Phase or 3-Phase | Class 2.5 |
| Scale: 0.5cap-1-0.5ind, 0.3cap-1-0.1ind, 0.7cap-1-0.02ind |
| Power Meter (KW or VAR) | Voltage: 110V 220V 380V 440V Current: 1A or 5A | For 1P, 3P 3W, 3P 4W with CT or PT | Class 1.5 |
