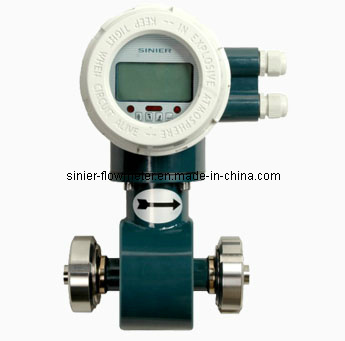

Se13 Sanitary Electromagnetic Flow Meter (Integrated)

Product Specifications

Prod Model:	SE13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure:	0.6/1.0/1.6/2.5/4.0mpa
Communication:	4-20mA/ Hart/ Modbus/ Profibus
Sensor:	Tube/Flange
Type:	Electromagnetic Flow Meter
Accuracy:	?à0.2-0.5%
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles
Principle:	Flow Meter
Size:	Dn10-Dn2000

Product Description

SINIER FLOW METERS
------Your expert of the Process Control and Measuring Instrumentations

Conductive Liquid Measuring Electromagnetic flowmeters
1. High accuracy
2. Long life time
3. Super quality
4. Competitive Price

Feature:




No movable, choking parts in the pipe, nearly no extra pressure loss during measurement.
Measuring results have nothing to do with velocity distribution, fluid pressure, temperature, density, viscosity, and other physical parameters.
Available to modify measuring range according to user's actual needs on the scene.
Suitable to measure all kinds of conducting fluid, such as tap water, sewage, mud, beverage, chemical materials, sticky fluid and suspension liquid.
Adopting SMD device and SMT technology, high circuit reliability, low consumption.
Adopting 16 Bit embedded microprocessor, fast operating rate, high accuracy, programmable low frequency rectangular wave excitation, to increase stability of measurement.
Digital value processing, strong anti-jamming ability, reliable measurement, high accuracy, range ability can reach 30: 1.
Low consumption EMI switching power, suitable for large range of supply voltage change, good EMC performance.
Including three integrators, which can achieve forward total, reserve total and D-value total; Including non-power-failure clock, which can record 16 times power failure.
Easy to operate, only need to connect to power, no any other operations, it can output standard signal, suitable for non-professional users.
Available to RS485, RS232, Hart, Modbus, and Profibus communication signal.
Providing modification function of five nonlinearity of sensor.
Providing automatic operation of average flow, easy for calibration.
Damping: Range 1-50s
Power off protection, operation result of flowmeter and set parameter won't disappear after power off, EEPROM can protect set parameter and total value.
Small signal resection function. Users can set lower limit of voltage and flow by display panel, to remove interference of small flow.
Password latch function. After power on, if need to set parameter, five bit password should be input to do parameter setting, and prevent irrelevant persons changing parameter.
Having various kinds of protection grade and installation methods of converters and sensors, and submersible installation IP68 is available.
Insertion electromagnetic flowmeter is suitable to measure in large diameter, easy installation, without cutoff, tapping with pipe pressure, having absolute advantage in installation and price.
Measurement of insertion electromagnetic flowmeter only has matter with insertion depth, so it has good generality and compatibility. Only one mode can satisfy all specifications of pipe.
