Nanchang Qinglin Automobile Accessories Co., Ltd. >> Seat Occupancy Sensor Car Sensor for Taxi Meter (YY-01)

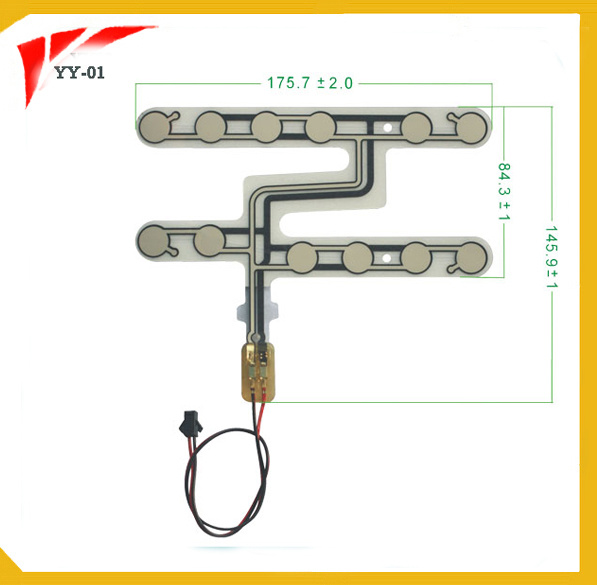

Seat Occupancy Sensor Car Sensor for Taxi Meter (YY-01)

Name: Seat Occupancy Sensor Car Sensor for Taxi Meter (YY-01)
Brand: china-manufacturer-directory.com
SKU: 768380725
Availability: InStock
Rating: 4.6 (51 reviews)

Supplier:	Nanchang Qinglin Automobile Accessories Co., Ltd.
Price:	US $ 10/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	YY-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material Surface Thickness:	0.188mm
Output Signal:	Resistance
Permanence:	>150000time
Connector:	Seal Gun
Film Thickness:	0.5+-0.1mm
Type:	Infrared Sensor Switch
Principle:	Capacitive
Wires:	Two-Wires
Standard:	Standard
Application:	Warehouse

Product Description

Performance Parameters Table
Parameter	Condition		Sign	Numerical Value			Unit
				Min		Max
Working Voltage			U working	0		20	V
Working Current			I Working	0		50	mA
Non-trigger resistance value	No load		Rx=R No load	10.0K			Ω
Trigger resistance value	Bearing body		Rx=R Trigger	0		100	Ω
Insulation impedance	No load		Rx=R No load	10		20	MΩ
Specification
Material		PC
Material surface thickness		0.188mm
Output Signal		Resistance<100Ω
Film thickness		0.5+-0.1mm
Bottom glue		PET 3MDouble-sided glue
Enviroment Temperature		-15°C-80°C
Permanence		>150000 Time
Pressure range single-spot test(Special Poise)		70g			100%non-conducting
		130g			100%conducting
Connector		Seal gum
To match as the seat

Auto seat sensor is a membrane touch point sensor and touch point was distributed uniformity on the suffer facade of seat, It is use to apperceive system of auto seat, such as safety belt alarm sensor, Taxi meter automatism.
We can design to different sensor figure and touch point sensitivity according to shape. rigidity and elasticity of car seat.
