Product Specifications
| Prod Model: |
W24s-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
| Type For Cutting Machine: |
Bender |
Product Description
ModelW24S-16 Profile Bending Machine
Max. Ant-bending section modulus of profile163
Yield limit of profileσ S=250MPa
Angel steel inflection Max section70× 8
Minimum bending diameter1000
Minimum section30× 3
Minimum bending diameter550
Angel steel excurvationMax section80× 8
Minimum bending diameter1000
Minimum section30× 3
Minimum bending diameter550
Channel steel excurvation
Channel steel type12mm
Minimum bending diameter800
Channel steel inflection
Channel steel type12
Minimum bending diameter900
Flat steel vertical bending
Max section150× 25
Minimum bending diameter700
Flat steel plane-bending
Max section75× 16
Minimum bending diameter760
Steel pipe bending
Max sectionΦ 76*4.5mm
Minimum bending diameter800mm
Round steel inflection
Max section52mm
Minimum bending diameter600mm
Square tube inflection
Max section60× 4mm
Minimum bending diameter900mm
Bending speed4 m/min
Climb and Fall velocity of side roll180-200 mm/min
Operating pressure of hydraulic system 19.5MPa
Hydraulic Motor4.5KW

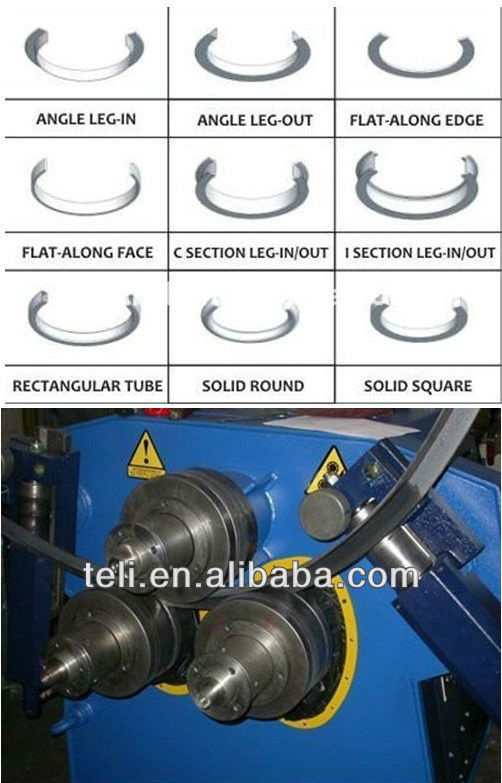

Profile Bending Machine
Main features
The operating system, utilizing microcomputer with numerical controlled module and dialogue-styled put-out-in programs, are highly workable.
The large capacity of the cooling circulatory system makes machines run more stable.
PLC as the heart of controlling the whole machine, could work normally in all kinds of bad conditions.
Each gear of programs can set nine bending angels, the memory machine can store 8 groups of files.
Error messages could show on the screen to help the operator to exclude errors immediately.
Nantong Teli Forming Machine Co., Ltd. Specializes in making rolling machines for a long history. We are an innovative enterprise which collects the production, research and development, and sale as an organic whole.
We professionally make "HAIWEI" brand three omnipotent roller serial numerical control A board machines, three roller symmetrical A board machines, three roller asymmetry machines, three roller board machines, level A board machines, four roller board machines, various kinds of special-purpose nonstandard roller board machines, smooth planes, various types of hydraulic pressure pendulum-type cut board machines, and roll over curved machines. We have passed the evaluation of ISO9001: 2000 certification.
Every management of our company is rigorously enforced, production is self-contained, manufacturing engineering is advanced, and product quality has courteous service steadily after sales. Our products find a good sale in such areas as Europe, Southeast Asia, the Middle East, and Africa. We welcome Chinese and foreign traveling traders. We will appreciate the advice wholeheartedly. Let us devote it sincerely together, abide by prestige, go forward hand in hand for common development.
Our factory offers the ideal equipment to user with hospitable attitude and prestige. Welcome the presence of the masses of customers.
