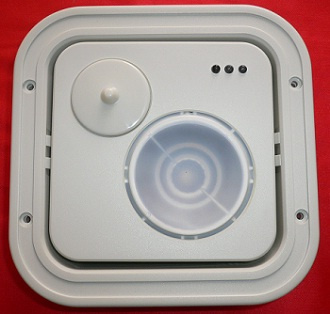

Security Alarm Microwave and PIR Motion Detector Dt-6360stc

Product Specifications

Prod Model:	DT-6360STC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Requirements:	10 - 14.5VDC
Microwave Frequencies:	10.525 GHz
Weight:	14 Oz (397 G)
Installation:	Ceiling Mounted
Certification:	CE
Usage:	Personal
Type:	Motion Detector

Product Description

Microwave Advanced Processing (MAP)
Incoming microwave and PIR signals are constantly monitored and individually qualified for intrusion characteristics. The timing and sequence of each of these signals must be qualified by MAP settings to specific environments, allowing for optimum catch performance and false alarm immunity.
Microwave/PIR Technology
The use of dual technology provides the best detection available while virtually eliminating false alarms and costly service calls.
Built-in Diagnostics and Supervision
Allows trouble conditions to be quickly identified, diagnosed and corrected.
Ceiling Mount Design
360° field-of-view, mounting height from 8' to 16' (2.4m to 4.9m), install as recessed or surface mount.
Microcontroller-initiated Self-tests
Microcontroller automatically initiates self-tests at power-up, trouble conditions and programmed intervals.
Trouble Output
After a trouble is confirmed with a self-test, the trouble output can be used to annunciate the trouble condition.
Full Supervision Microwave/PIR
- Patented INFORMER® circuit constantly monitors microwave and PIR against blockage and misapplication.
- Independent circuit supervises both microwave and PIR against failure; at a loss of signal, microcontroller initiates self-test and unit switches automatically to single technology operation.
Mounting
Surface or flush mount on ceilings (flush mount kit included); maximum standard range obtained at 11' (3.4m). PIR mirror assembly included for installation on 12' to 16' (3.7m to 4.9m) ceilings.
Physical Dimensions
White, high impact, ABS plastic
housing
5" H x 5" W x 2.3" D(12.7cm x 12.7cm x 5.8cm)
Weight: 14 oz (397 g)
Power Requirements
10 - 14.5VDC
40mA, 12VDC typical
Trouble Output
- Open collector: voltage between collector and emitter (Vce) is 0.3V@ 50mA
Alarm Relay
- Energized Form C: (N.O./N.C.)
reed relay rated 125mA at 25VDC
PIR White Light Immunity
- 900 LUX
Detection Range
- 50' (15m) diameter, 25' (7.6m) radius
Microwave Frequencies
- 10.525 GHz

Model	DT-6360STC
Shippment	DHL, UPS, FedEx....
Delivery	7-15days after received your payment
