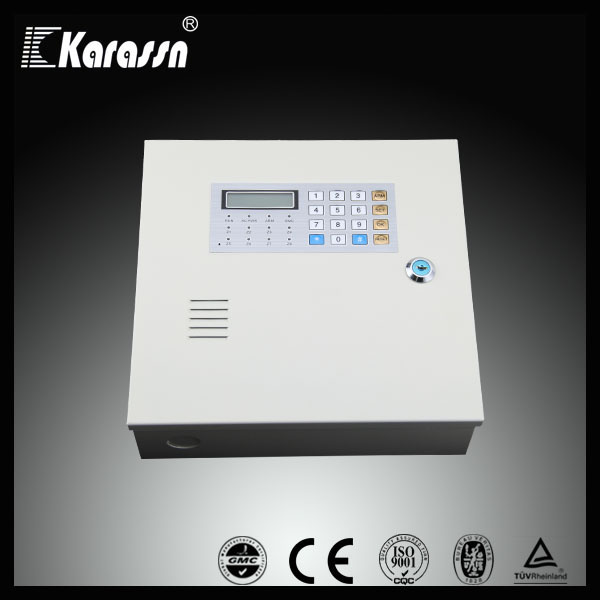

Security Alarm System (KS-858E)
1. SUMMARY
The security system adopts microprocessor control core, an it can work with wireless remote controllers and all kinds of wireless PIR detectors. It characteristics of many functions, such as anti-theft,anti-rob, anti-fire, emegency ask for help and so no. It reports alarm message to users, and network manage center by dialing telephone numbers preset when alarming. It also can be armed/disarmed remotely. and wireless siren can be linkaged to make alarm sound when alarming.
2. MAIN FEATURE
Equipped with two KS-13BE remote controller
It is easy to operate with 4*4 keyboard and lattice LCD display.
Voice pre-recorded. It guides to operate by sound and correctly reports alarm information when alarming.
8-wired + 8 wireless zones
8 sub zones can be programmed independently. And the zone list can be set freely in each sub zone, 8 remote controllers and 8 user's codes can separately program for 8 sub zones to ARM/DISARM independently.
Code classification, 1 installer code, 1 master code, and 8 common user 's codes.
Support to ADEMCO CONTACT ID communication protocol
5 groups of telephone numbers (mobile and pager number) can be set.
DTMF (double-tone multi frequency) and pulse dialing mode are available.
Alarm delay time (00-99 seconds) and Arm delay time (00-99 seconds) can be set for appointed zones.
Completed self-check function, Main unit/detector disassembly, AC power cut, backup battery lower of main unit and detector will activate alarming.
Wired zone respond speed is 50ms-750ms, and the circuit types (Normal Open, Normal Close and Line-end resistance) can be set freely to connect with all kinds of wired detector.
Linkage with wired/wireless Siren
3. APPLICATION
This security system is very suitable to be widely used in family, shop and other places..
4. DETAILED DRAWING
5. Shipping & Payment
MOQ 10 Sets security system
Sample Sample available for security system
Shipping By Air or by sea, also Express SHL/FEDEX/UPS etc.
Payment L/C, T/T, Western Union, Escrow
6. About Us
Karassn Security Protection Electronics Co., LTD was founded in 2000. The company had invested over USD1 million establish its own production line and design Department.
Nature of Business
Manufacturing & exporting more than 50kinds of alarm systems. GSM/PSTN alarm system, Home/Commercial/Industrial alarm system, Wireless Visible alarm system, Wireless Long-distance alarm system and wireless/wired accessories. Customers are exporters, importers department stores & promotion agents.
Size & Capacity
Karassn factory in China has 6000squ area, employing over 250 staffs. Production Line Capacity each month is 30,000 sets alarm systems with turnover around USD9.5 million yearly.
Quality Control
All goods to be shipped are ensuring of top quality by carrying inspection procedures set by our own or client requirement(s). We follow the ISO 9001 guidelines for the mass production.
7. Advantage
OEM and ODM available;
Certification: CE , CCC, ISO9001;
7 full new moving assemble lines;
Over 250 employees and 50 R&D engineers;
Supplier Assessed by Bureau Veritas France;
14 years experience specialize in designing, manufacturing alarm systems;
14 years experience in overseas market. Customers are from more than 50 countries;
8. Contact Us
Karassn Security Protection Electronics Co.,Ltd.
Add: Karassn Industrial Area, 1 Road, Economic & Technologic Zone,
Quanzhou City, Fujian Province
362000 China
Tel: +86-595-22418895
Fax: +86-595-22418857
Web: http://karassn.en.alibaba.com
Attn: Handa Wang
Mob: +86-13720843212
9. SPECIFICATION
| Model | KS-858E security system |
| Brand | KARASSN |
| Power | AC220V±15% |
| AUX output current | ≤550mA |
| Wireless working frequency | 433MHz security system |
| Alarm decibel | >90dB ( Max & Within 1m) |
| Working temperature | -10°C - +55°C |
| Humidity | 10 ~ 80% |
| Wireless distance | ≥400m in the open area (PIR to panel) |
| Size | 264×260×80(L*W*H, MM), (without antenna)
|
