Sharpvision Co., Ltd. >> Security Camera Monitoring Systems

Security Camera Monitoring Systems

Security Camera Monitoring Systems
Supplier: Sharpvision Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: MO141, CS406, CW669, CD069
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 9 Inches
Type: Monitoring System
Technology: Infrared
Application: All-Round Monitoring
Kind: Autofocus Lens
Feature: Vandal-proof
Sensor: CCD
Horizontal Resolution: 420tvl

Product Description

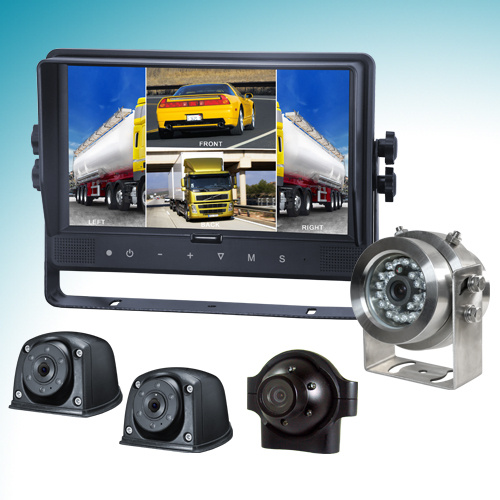

Security Camera Monitoring Systems

Touch button monitor features MO-141D:


9-inch digital quad monitor with video recording function; The recording file stored in SD CARD; Maximum 32G
Supporting 12 hours continuous recording; Support 720x240(NTSC)/720x288(PAL) 30fps

Video file layout: AVI; Coded format: Motion JPEG

Support photographing and RTC with time preserved on the photo. Support date & time setting of the video

Touch screen: 9 inch resistive touch screen available, can recognize up, down, left, right side "swipe"; Support two- point touch to realize channel switching

Support touch button control function

Support level 6 LCD manual backlighting adjustment, level 3 automatic adjustment

Support IR remote control

System format: NTSC/PAL

Loudspeaker: Can play audio signal from camera and external input; Volume adjustable from 0 to 20

Support four cameras inputs and multi-channels output

Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; Characters of the menu will not inverse when set to mirror image.

Cameras image display mode: Single, dual, triplex, quad, PIP functions, trefoil, and Y-split image available

Five trigger lines: Once a trigger line is activated, image automatically switches to its corresponding camera; Trigger priority is available

Auto scan: Scan channel and time can be set according to the users' demand.

Reverse warning yardstick

Automatically boot when triggered under the condition of standby, and automatically switch to trigger channel

One channel video output: Synchronal video output

One channel audio output, one channel AUX input

Operating voltage range: 10-32V

Short-circuit protection function

Applicable to vehicle and ship surveillance, indoor / outdoor security systems

Easy installation and convenient operation, with innovative functions

Mobile camera features CS-406:

Flexible installation: Can be mounted on rear, front, or either side of vehicles

Convenient angle adjustment

Waterproof, shatterproof protection level equals to IP69K.

Super wide viewing angle(150° )

Performs in rugged conditions. Operating temperature: -20º C +70º C

Mirror / Normal image Adjustment (depending on the chips)

Distance label selectable to be open or closed

Night vision available

IR distance: 5m

Audio available


CW-644 Features:

Compact profile

Waterproof and vandalproof

Convenient angle adjustment

Infrared LED light: 5

IR Distance: 5 m

High resolution

Can be mounted on rear, front, or either side of vehicles


Anti-explosion CW-669 Features:

304 stainless steel molded in integral with polished finish

Anti-explosion, waterproof, dustproof, anti-shock, small size

Installation angle adjustable

Built-in 15-meter infrared lamp for night

Mainly used in inflammable and explosive workplace and in transport vehicles for inflammables

And explosives such as oil tank truck and gas tank truck etc.
CW-669 Image Device 1/3" SONY  EXview HAD CCD II
TV System PAL NTSC
Effective Pixels 976(H)*582(V)  976(H)*494(V)
Sensing Area 5.58mm×4.67mm
Scanning System 2:1 Interlace
Sync. System Internal
Resolution 700TV Lines
WDR YES
ATR YES
2D noise reduction YES
Digital demist process YES
Privacy mask YES
Face detection YES
Motion detection YES
HLR(high light reduction ) YES
OSD supports 8 Languages
Horizontal Sync Frequency 15.625 kHz 15.734 kHz
Vertical Sync Frequency 50 Hz 60 Hz
Video Output 1.0Vp-p, 75Ohm
Gamma Consumption 0.45
AGC Auto
S/N Ratio Better than 48dB
White Balance Auto
Electronic Shutter 1/60(NTSC)/1/50(PAL)~1/100,000 Seconds
BLC Auto
Storage Temperature –50~ 95, RH95%MAX.
Operating Temperature  –30~85
Minimum Illumination   0 Lux
Power Supply    DC12V
Night vision distance    8~10m
Anti-hazard classification Exd II CT6
Waterproof rating   IP69K
Image mode    Normal
Viewing Angle    120°           92°              69°
Material quality 304 Stainless steel
