Product Specifications
| Prod Model: |
ASM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Software |
| Technology: |
Infrared |
| Application: |
Sentinel Surveillance |
| Feature: |
Waterproof / Weatherproof |
| Sensor: |
CCD |
| Horizontal Resolution: |
480tvl |
Product Description

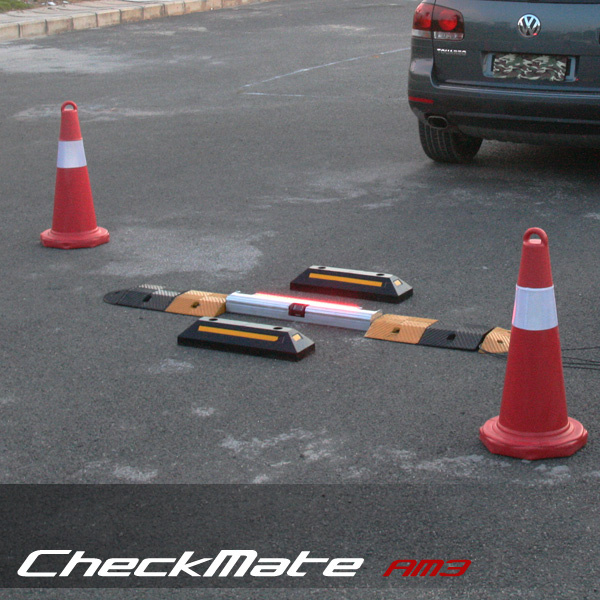

The Security Purpose Mobile Under Vehicle Surveillance System ASM provides easy and fast installation though high resolution sharpness images with high passing speed for checkpoint. The system is designed with module style for low maintenance. All parts is out door use design to stay with every harsh enviorment.
IMAGING PART
Camera Sensors: 3 Area-scan CCD
Resolution: 30M Pixels Power: 12VDC, 2.5A
Lighting Source: LED; Power: 12VDC, 10W
Working Temperature: -10 to +50 degree
Recommend passing speed: Less than 20 km/ hr
Resolution of image: > 0.5 mm / pixel
View angle: 120 to 150 degree adjustable
Protection level: IP66
Dimensions: 550 mm X 360 mm X 95 mm
Active mode: IR sensor
MONITOR & POWER PART
Computer brief specs:
DELL worldwide service
CPU Inter Core 2
Memory 2G / HD 500G / DVD
Screen: Desktop 19" LCD touch-screen
Record input: 4 channel Video format: H. 264
Scene camera resolution: CIF 4CIF
Vehicle plate reader camera ( optional )
Image transmission interference: Coaxial cable
Power supply: 220V 150W
General specifications
Camera Type: Wide viewing angle color cameras
Working temperature: -10 to +50 degree
Working voltage: 12VDC,
Sensitive: 408DN/(nJ/square cm) @ 10dB
Scanning video generating speed: Instantly
Data type: Video in H. 264 format; Still image JPG format
Data transferring: RJ485 support up to 200M remote installation
Protection level: IP65
Cooling type: Aluminium panel cooling
Lighting LED type lighting; White color; Protection level: IP65
Working temperature: -10 to +60 degree
Cooling type: Aluminium fin cooling
I/O Control Working temperature: -10 to +50 degree
Working voltage: 24V
Control chip: 8 digit high performance MCU
Input: 12 routes optoelectronic isolation NPN input, 10mA
Output: 8 routes optoelectronic isolation relay output, 0~220V output, Max 5A
Sensor house Highly heat transferring performance aluminium
Sensor box size: 700*110*30mm
Color: White
Edge Max load weight: Not designed to be crash by vehicle
As a profesional metal detector maker Checkpoint Security is proud to offer a full line of walk-through metal detector and hand-held Metal Detectors, X-ray machines, video search kit as well as under vehicle search mirrors to complement their line of security checking Systems.
With many years security projects running we have stragegy cooperators located in Beijing and Shanghai to provide international high quality security metal detector rental, emergency management and consulting.
Our walk-through metal detector systems are a particularly valuable and effective deterrent when screening the general public for metallic items, such as guns or knives, in a high volume situation with low maintance effort.
Checkpoint Security now have grows to a manufacture-oriented company. Our walk through metal detectors been wildly used in security and anti-theft field. We also gained much national reputation. Our detectors are used in Gandon Fair, 10th national games and many important exhibition or affairs.
Cooperation and Agent polices
We establish agent in different territories to maintain the relative countries customer' S real-time service require. Relatively we keep looking for the most qualified agent company to cooperate in the security industry. After we set up a agent contract we will offer the whole countries inquiries to this sole agent. Consequently, the products maintain or repairs will be accomplished by the agent. The service period will be eliminated much.
