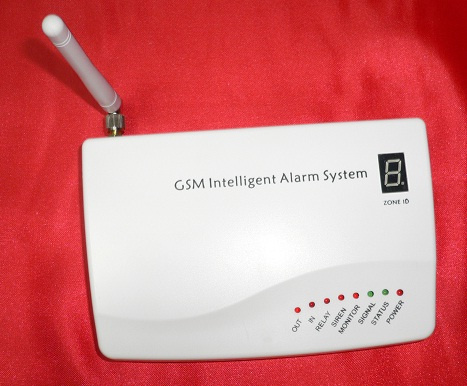

Security System Wireless Alarm Host GSM-V35

Product Specifications

Product Description

GSM intelligent alarm system, has all the function of traditional telephone alarm
system, moreover it takes the advantage of GSM network and short text
message, it would be used more convenient, reliable, and efficient.

1) Support multi GSM bands, This panel suits for:
   GSM900/DCS1800 MHz
2) The main panel has the option which supports Alarm center , please chec
when selecting, this panel:
   Does not support alarm center
3) No need of fixed telephone line. It is very suitable for cottage, house, sho
garage, wherever GSM Network is present.
4) Sends preset messages to the mobile phone whenever alarm is activated.
5) Easy to setup alarm phone numbers and sending messages through SMS.
6) Supports up to 7 wired sensors.
7) Main panel supports all kinds of wireless detectors, PIR, inf rared baluste
smoke sensors, gas sensors, panic buttons and so on.
8) Indicates up to 30 Activated Zone numbers, display zone numbers when
the sensors make alarm and coding.
9) Sets the system status(Arm, Disarm etc.) by a telephone or SMS.
10) Makes arm, disarm, or panic through remote controllers.
11) Four digits password is used for remote access for security reasons.
12) Onsite voiceMonitoring through telephone f rom long distance.
13) Have one onsite high volume siren, send sound when alarm occurs.
14) One onboard relay available for customer application.
15) One open collector output available to be used according to customer
demands

Technical Parameters:
1) Power supply: AC110V/220V ~ DC12V 1A
2) Static Current < 30mA
3) GSM power CLASS42W/EGSM850/900
               CLASS11W/DCS1800/1900
4) Wireless frequency: 433.92(or 315 if specified) MHz
5) WirelessModulation ASK
6 Wireless receive sensitivity-95dBm@12dB SINAD
7 Support wireless detectors 28
8 Volume of siren: 110dBspl
9 Working Temperature -15 +55 R.H.90%
